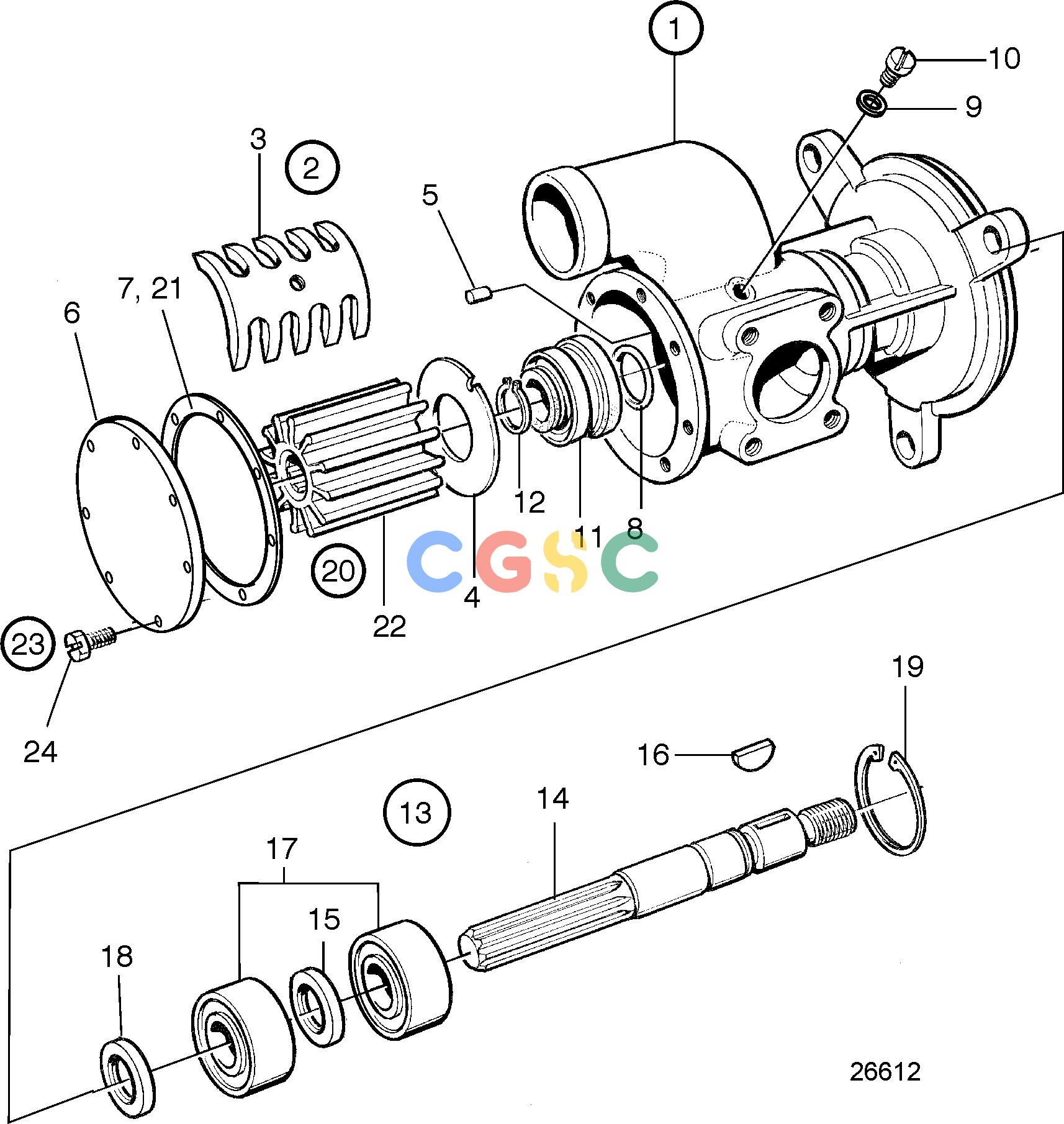

沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3836563
|
[1] |
Sea water pump
|
|
| 2. |
21951402
|
[1] |
Wear kit
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
21951463
|
[1] |
Shaft kit
|
|
| 14. |
3830705
|
[1] |
Shaft
|
|
| 15. |
3830707
|
[1] |
Spacer
|
|
| 16. |
910112
|
[1] |
Woodruff key
|
|
| 17. |
3830706
|
[2] |
Ball bearing
|
|
| 18. |
864647
|
[1] |
Sealing ring
|
|
| 19. |
3825112
|
[1] |
Lock ring
|
|
| 20. |
876771
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 20. |
3887761
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 20. |
21958592
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 20. |
22000061
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 20. |
21951358
|
[1] |
Impeller kit
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
21951334
|
[1] |
Screw kit
|
|
| 24. |
21346724
|
[6] |
Hexagon screw
|
Use screw kit 21951334
|
