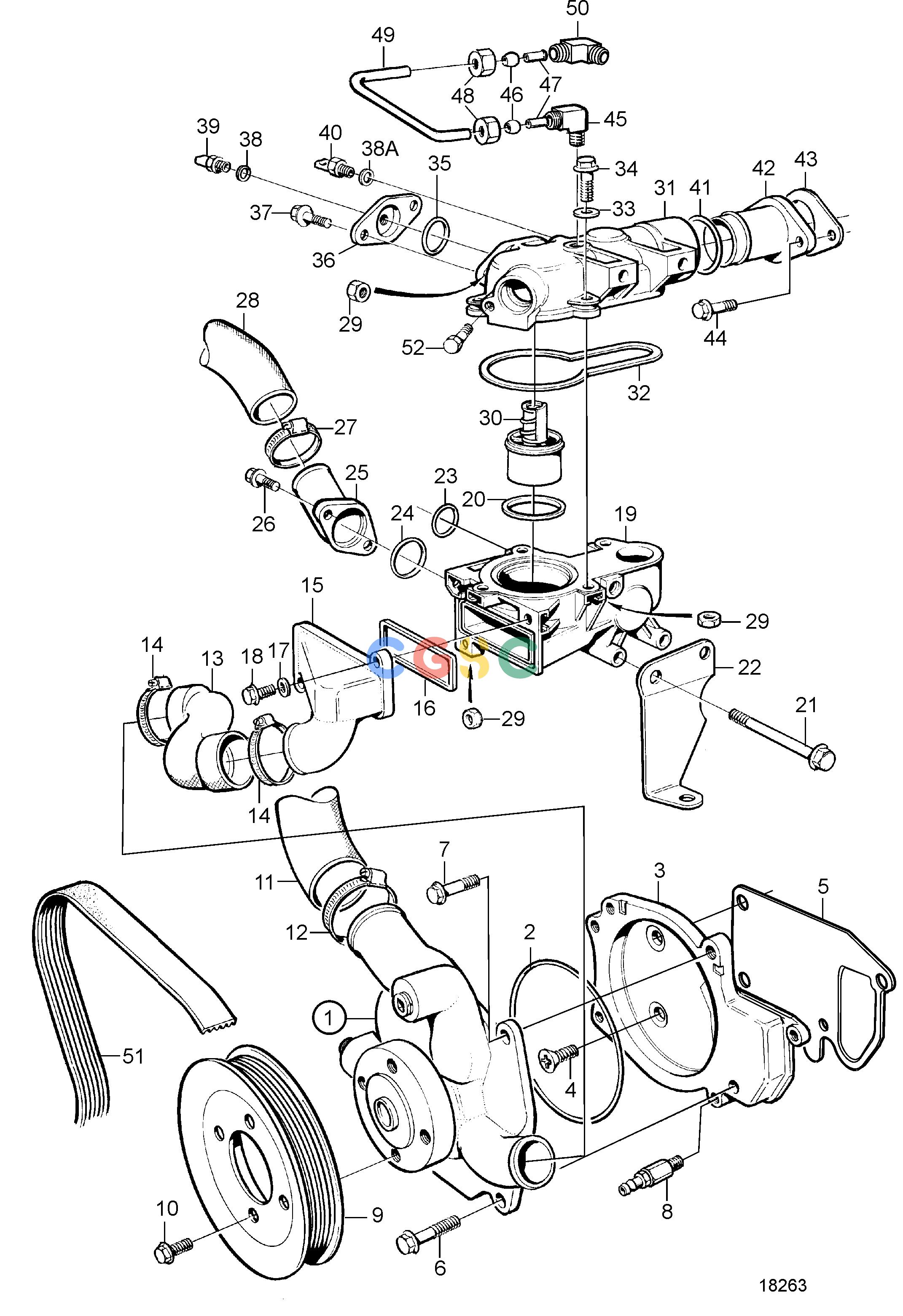

沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemWater Pump and ThermostatEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
866201
|
[1] |
Water pump
|
SN-XXXXXXXXXX/112071
|
| 1. |
|
|
|
|
| 1. |
3826153
|
[1] |
Water pump
|
SNXXXXXXXXXX/112072-
|
| 1. |
3836405
|
[1] |
Water pump
|
|
| 1. |
3803915
|
[1] |
Coolant pump
|
|
| 2. |
975691
|
[1] |
O-ring
|
|
| 3. |
3829941
|
[1] |
Base plate
|
|
| 4. |
866533
|
[2] |
Lock screw
|
|
| 5. |
3830836
|
[1] |
Gasket
|
|
| 6. |
965216
|
[1] |
Flange screw
|
|
| 7. |
945444
|
[4] |
Flange screw
|
|
| 8. |
966871
|
[1] |
Shut-off cock
|
|
| 9. |
866186
|
[1] |
Pulley
|
|
| 10. |
946440
|
[4] |
Flange screw
|
|
| 11. |
866216
|
[1] |
Hose
|
Heat exchanger-water pump.
|
| 12. |
961672
|
[2] |
Hose clamp
|
|
| 13. |
866214
|
[1] |
Hose
|
|
| 14. |
961670
|
[2] |
Hose clamp
|
|
| 15. |
866213
|
[1] |
Connecting pipe
|
|
| 16. |
471816
|
[1] |
Sealing ring
|
|
| 17. |
941907
|
[2] |
Spring washer
|
|
| 18. |
945444
|
[2] |
Flange screw
|
|
| 19. |
876628
|
[1] |
Thermostat housing
|
|
| 20. |
1544710
|
[1] |
Sealing ring
|
|
| 21. |
965183
|
[3] |
Flange screw
|
|
| 22. |
865744
|
[1] |
Bracket
|
|
| 23. |
477059
|
[1] |
O-ring
|
|
| 24. |
925092
|
[1] |
O-ring
|
|
| 25. |
866522
|
[1] |
Water pipe
|
|
| 26. |
945444
|
[2] |
Flange screw
|
|
| 27. |
961672
|
[2] |
Hose clamp
|
|
| 28. |
866215
|
[1] |
Hose
|
Thermostat housing-heat exchanger.
|
| 29. |
955782
|
[9] |
Hexagon nut
|
|
| 30. |
8149182
|
[1] |
Thermostat
|
82°C
|
| 31. |
477905
|
[1] |
Cover
|
|
| 32. |
471788
|
[1] |
Sealing ring
|
|
| 33. |
941907
|
[4] |
Spring washer
|
|
| 34. |
946470
|
[4] |
Flange screw
|
|
| 35. |
949658
|
[1] |
O-ring
|
|
| 36. |
3830530
|
[1] |
Flange
|
|
| 37. |
945444
|
[2] |
Flange screw
|
|
| 38. |
11998
|
[1] |
Gasket
|
|
| 38A. |
947624
|
[1] |
Gasket
|
|
| 39. |
862154
|
[1] |
Temperature sensor
|
Max 120°C
|
| 40. |
862250
|
[1] |
Thermo monitor
|
97°C
|
| 41. |
469982
|
[1] |
Sealing ring
|
|
| 42. |
848165
|
[1] |
Pipe
|
|
| 43. |
848163
|
[1] |
Gasket
|
|
| 44. |
946544
|
[2] |
Flange screw
|
|
| 45. |
954385
|
[1] |
Elbow nipple
|
|
| 46. |
954364
|
[2] |
Sleeve
|
|
| 47. |
944717
|
[2] |
Support sleeve
|
|
| 48. |
954356
|
[2] |
Fitting nut
|
|
| 49. |
945460
|
[1] |
Tube
|
Thermostat housing-heat exchanger., L=500mm
|
| 50. |
954385
|
[1] |
Elbow nipple
|
|
| 51. |
866653
|
[1] |
Belt
|
|
| 52. |
7740790_049
|
|
Screw
|
|
