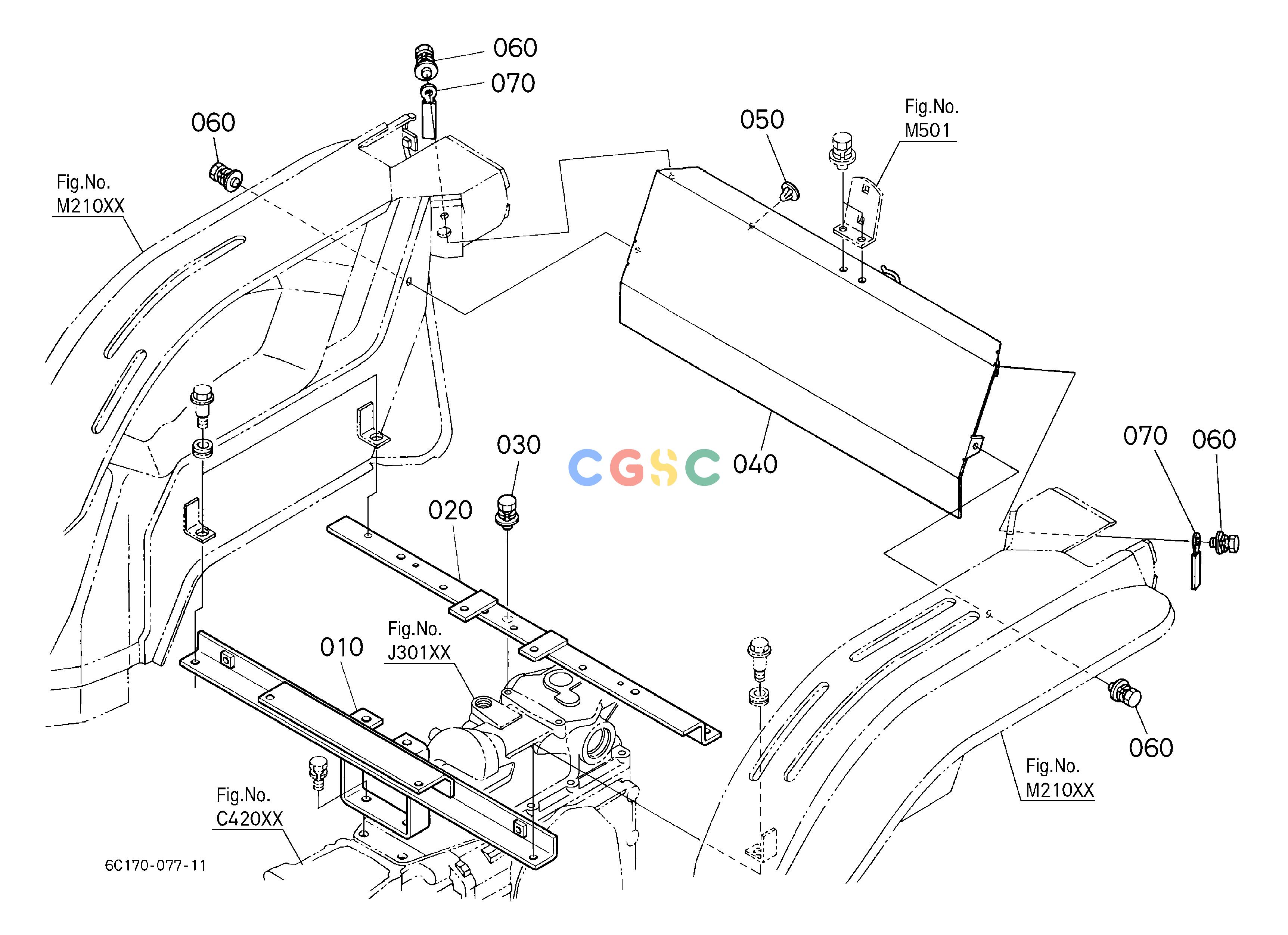

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C17052730 | [1] | STAY FENDER | 3.6960(lbs); 1.680 |
| 020. | 6C17052740 | [1] | STAY FENDER | 2.3540(lbs); 1.070 |
| 030. | 0112551020 | [2] | BOLT | 0.0110(lbs); 0.005 |
| 040. | 6C07052752 | [1] | STAY FENDER | 5.6320(lbs); 2.560 |
| 050. | 3824029570 | [1] | PLUG | 0.0022(lbs); 0.001 |
| 060. | 0112560816 | [4] | BOLT | 0.0220(lbs); 0.010 |
| 070. | 1382467580 | [2] | CLAMP CORD | 0.0132(lbs); 0.006 |
