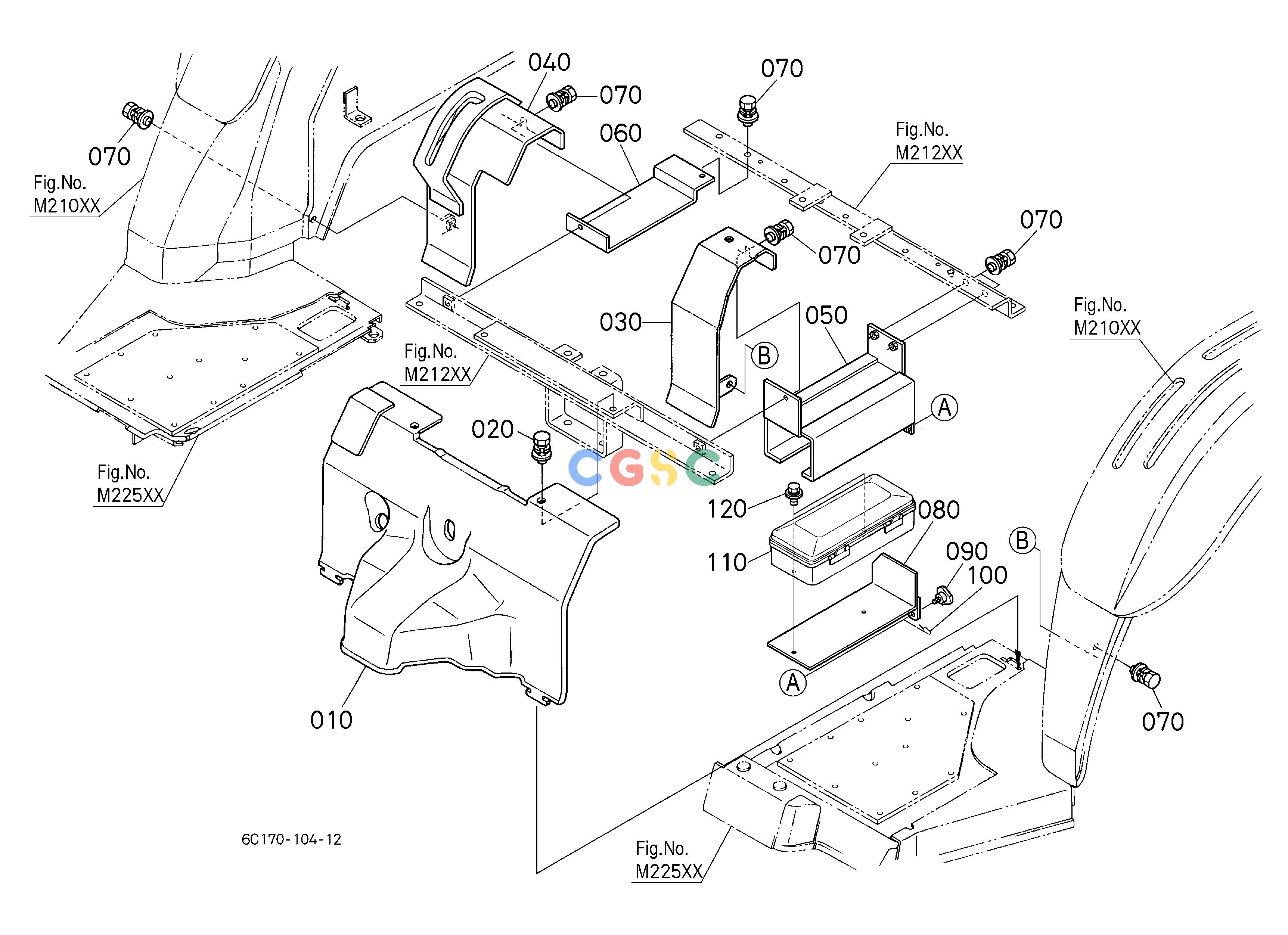

久保田零件查询M21502 FLOOR SEAT HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04051370
|
[1] |
COVER SEAT UNDER
|
0.8360(lbs); 0.380
|
| 020. |
0112550818
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 020. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 030. |
6C07051383
|
[1] |
COVER SEAT UNDER LH
|
0.8580(lbs); 0.390
|
| 040. |
6C17051390
|
[1] |
COVER SEAT UNDER RH
|
1.3860(lbs); 0.630
|
| 050. |
6C17051480
|
[1] |
COVER SEAT SIDE LH
|
3.4320(lbs); 1.560
|
| 060. |
6C17051490
|
[1] |
COVER SEAT SIDE RH
|
0.5720(lbs); 0.260
|
| 070. |
0112560816
|
[7] |
BOLT
|
0.0220(lbs); 0.010
|
| 080. |
6C17051510
|
[1] |
TRAY TOOL CASE
|
1.9360(lbs); 0.880
|
| 090. |
6C17051520
|
[1] |
BOLT KNOB
|
0.0550(lbs); 0.025
|
| 100. |
0552560600
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 110. |
6C04052790
|
[1] |
CASE TOOLS
|
0.5060(lbs); 0.230
|
| 120. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
