斗山零件查询ELECTRIC WIRING E80 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
466 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

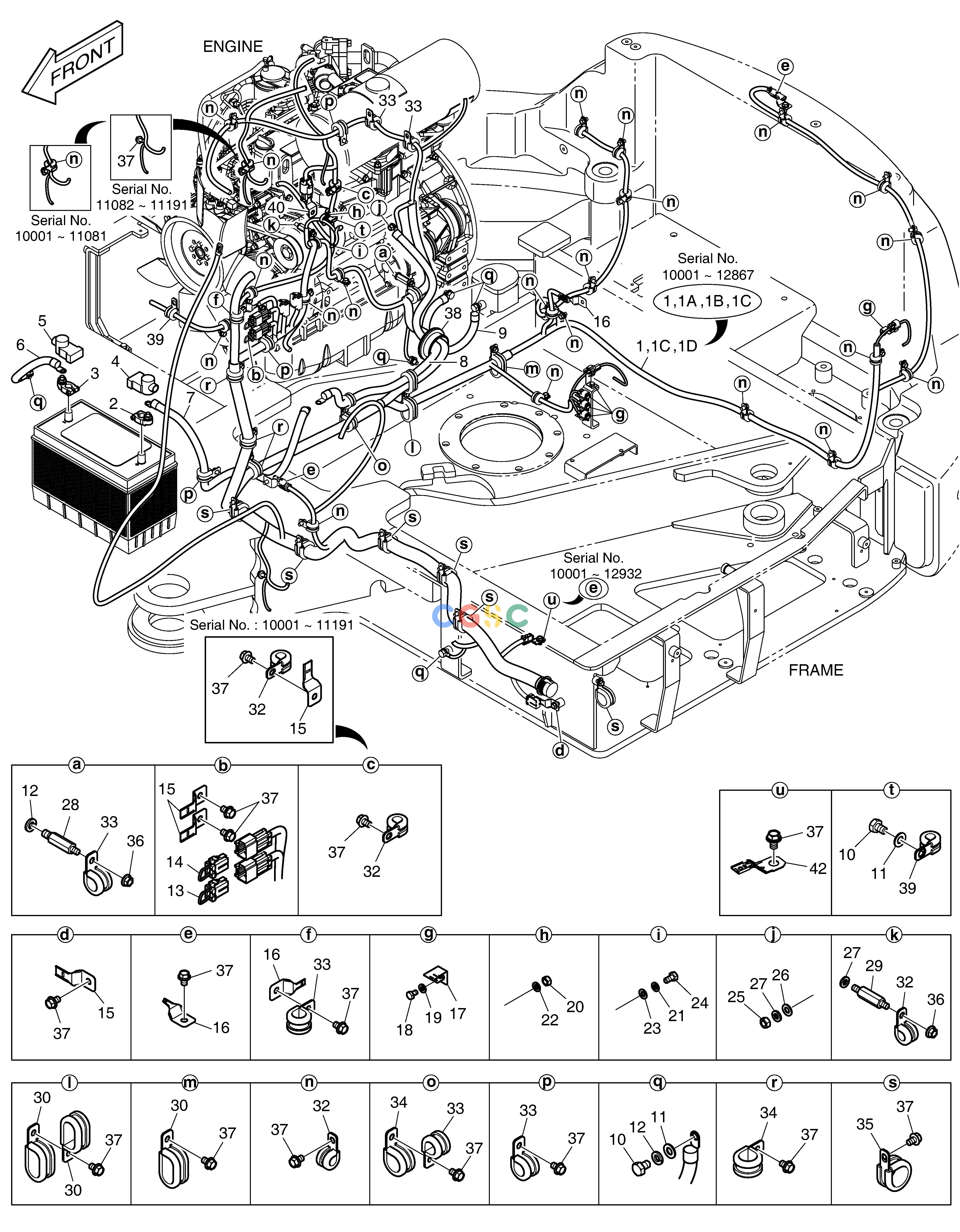

K1041786A
|
[-] |
ELECTRIC WIRING
|
|
| -. |
300619-00116
|
[-] |
|
|
| -. |
300619-00116A
|
[-] |
|
|
| 1. |
K1037321C
|
[1] |
HARNESS;MAIN
|
|
| 1. |
310207-00158A
|
[1] |
|
|
| 1. |
310207-00158B
|
[1] |
|
|
| 1. |
310207-00158C
|
[1] |
|
|
| 1. |
310207-00158E
|
[1] |
|
|
| 1. |
310207-00158G
|
[1] |
|
|
| 1. |
310207-00158H
|
[1] |
|
|
| 10. |
S0511653
|
[5] |
BOLT
|
|
| 10. |
S0511653
|
[6] |
BOLT
|
|
| 11. |
S5010613
|
[5] |
WASHER
|
|
| 11. |
S5010613
|
[6] |
WASHER
|
|
| 12. |
S5102603
|
[6] |
. WASHER
|
|
| 13. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 14. |
527-00004
|
[1] |
FUSIBLE LINK
|
|
| 15. |
2197-1660
|
[4] |
BRACKET
|
|
| 15. |
2197-1660
|
[3] |
BRACKET
|
|
| 16. |
2197-1661
|
[5] |
BRACKET
|
|
| 16. |
2197-1661
|
[4] |
BRACKET
|
|
| 16. |
2197-1661
|
[3] |
BRACKET
|
|
| 17. |
2195-3500
|
[5] |
BRACKET
|
|
| 18. |
S0504366
|
[5] |
BOLT
|
|
| 19. |
S5102303
|
[5] |
. WASHER
|
|
| 1A. |
2548-1027
|
[1] |
DIODE
|
|
| 1B. |
548-00003A
|
[1] |
DIODE
|
|
| 1C. |
K1000814
|
[2] |
DIODE
|
|
| 1D. |
300617-00044
|
[1] |
|
|
| 2. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 20. |
S4012203
|
[1] |
NUT
|
|
| 21. |
S5100203
|
[1] |
WASHER
|
|
| 22. |
S5100203
|
[1] |
WASHER
|
|
| 23. |
S5000213
|
[1] |
. WASHER
|
|
| 24. |
S0502853
|
[1] |
. BOLT M5X0.8X10
|
|
| 25. |
S4012533
|
[1] |
NUT
|
|
| 26. |
S5010513
|
[1] |
WASHER
|
|
| 27. |
S5102503
|
[2] |
. WASHER
|
|
| 28. |
120-00246
|
[1] |
BOLT;STUD
|
|
| 29. |
120-00179
|
[1] |
BOLT;STUD
|
|
| 3. |
2550-1014D2
|
[1] |
TERMINAL,BATTERY(-)
|
|
| 30. |
124-00209D4
|
[3] |
CLIP
|
|
| 32. |
124-00208D2
|
[23] |
CLAMP
|
|
| 32. |
124-00208D2
|
[22] |
CLAMP
|
|
| 32. |
124-00208D2
|
[23] |
CLAMP
|
|
| 33. |
124-00208D3
|
[8] |
CLIP
|
|
| 34. |
124-00208D4
|
[4] |
CLIP
|
|
| 35. |
124-00208D5
|
[6] |
CLIP
|
|
| 36. |
2121-1305
|
[2] |
NUT
|
|
| 37. |
K1001029
|
[44] |
BOLT
|
|
| 37. |
K1001029
|
[43] |
BOLT
|
|
| 38. |
2160-1227D18
|
[1] |
BUSHING;RUBBER
|
|
| 39. |
124-00208D12
|
[1] |
CLIP
|
|
| 39. |
124-00208D12
|
[2] |
CLIP
|
|
| 4. |
2160-1212
|
[1] |
CAP,BATT. TML(+)
|
|
| 40. |
K1026565
|
[1] |
BRACKET
|
|
| 42. |
110406-02760A
|
[1] |
BRACKET
|
|
| 5. |
2160-1213
|
[1] |
CAP,BATT. TML(-)
|
|
| 6. |
2553-1275D61
|
[1] |
CABLE;BATTERY-EARTH 30BX250L
|
|
| 7. |
2553-1275D67
|
[1] |
CABLE;BATTERY-BATTRY 30R-250L
|
|
| 8. |
2553-1275D102
|
[1] |
CABLE;BATTERY
|
|
| 9. |
553-00001D1
|
[1] |
CABLE;E/G EARTH
|
|
