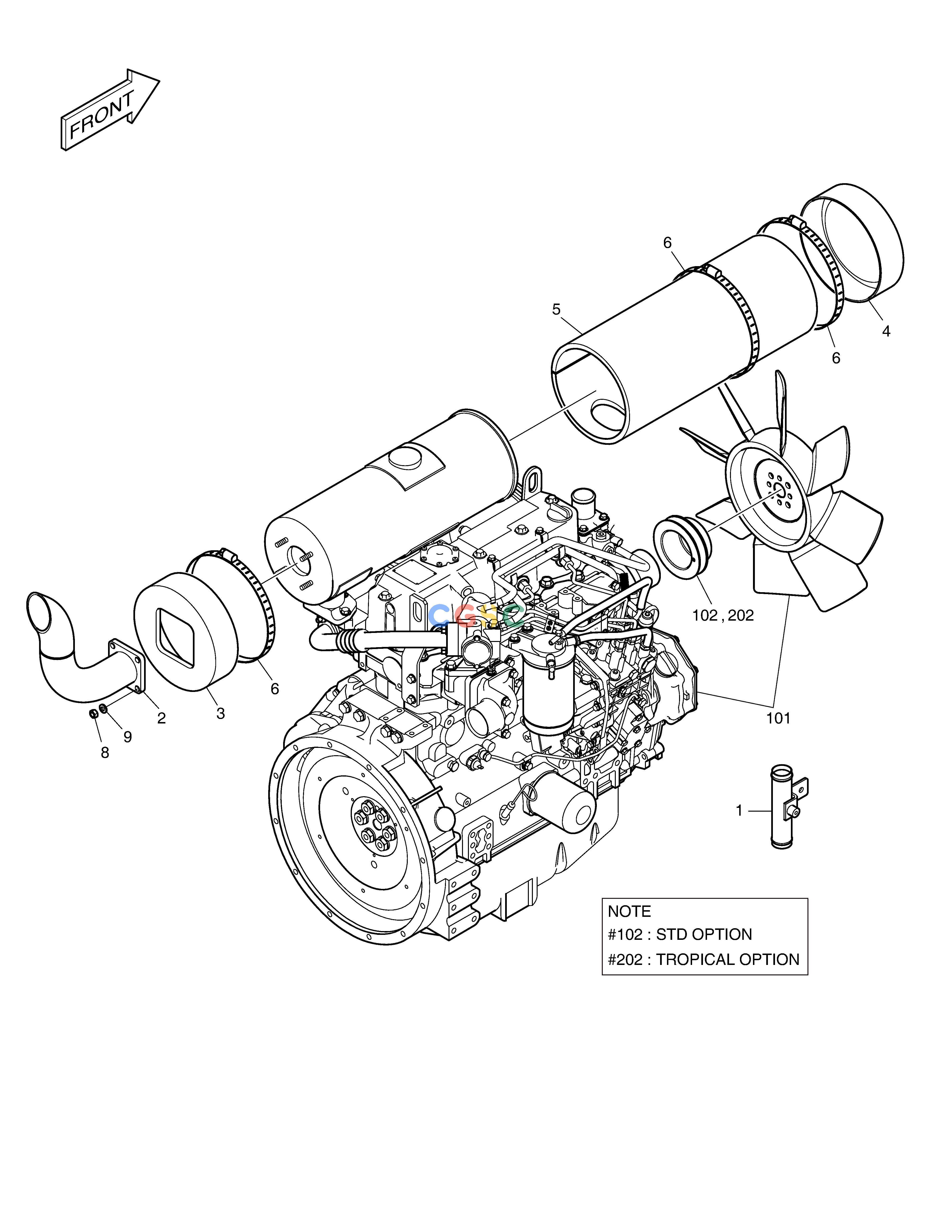

斗山零件查询ENGINE ASS'Y - EMEA E80 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00046
|
[-] |
ENGINE MOUNTING
|
|
| 1. |
K1033910A
|
[1] |
PIPE
|
|
| 101. |
K1029905A
|
[1] |
ENGINE ASS'Y
|
|
| 101. |
150109-01454
|
[1] |
|
|
| 102. |
K1018520A
|
[1] |
PULLEY;FAN
|
|
| 2. |
K1036090B
|
[1] |
PIPE;EXHAUST
|
|
| 202. |
K9005938
|
[1] |
V-PULLEY;WATER PUMP
|
|
| 3. |
K1045425B
|
[1] |
MAT;GLASS
|
|
| 4. |
K1045426A
|
[1] |
MAT;GLASS
|
|
| 5. |
K1045427B
|
[1] |
MAT;GLASS
|
|
| 6. |
S8450165
|
[3] |
CLAMP
|
|
| 6. |
S8470205
|
[3] |
|
|
| 8. |
S4012533
|
[4] |
NUT
|
|
| 9. |
S5102503
|
[4] |
. WASHER
|
|
