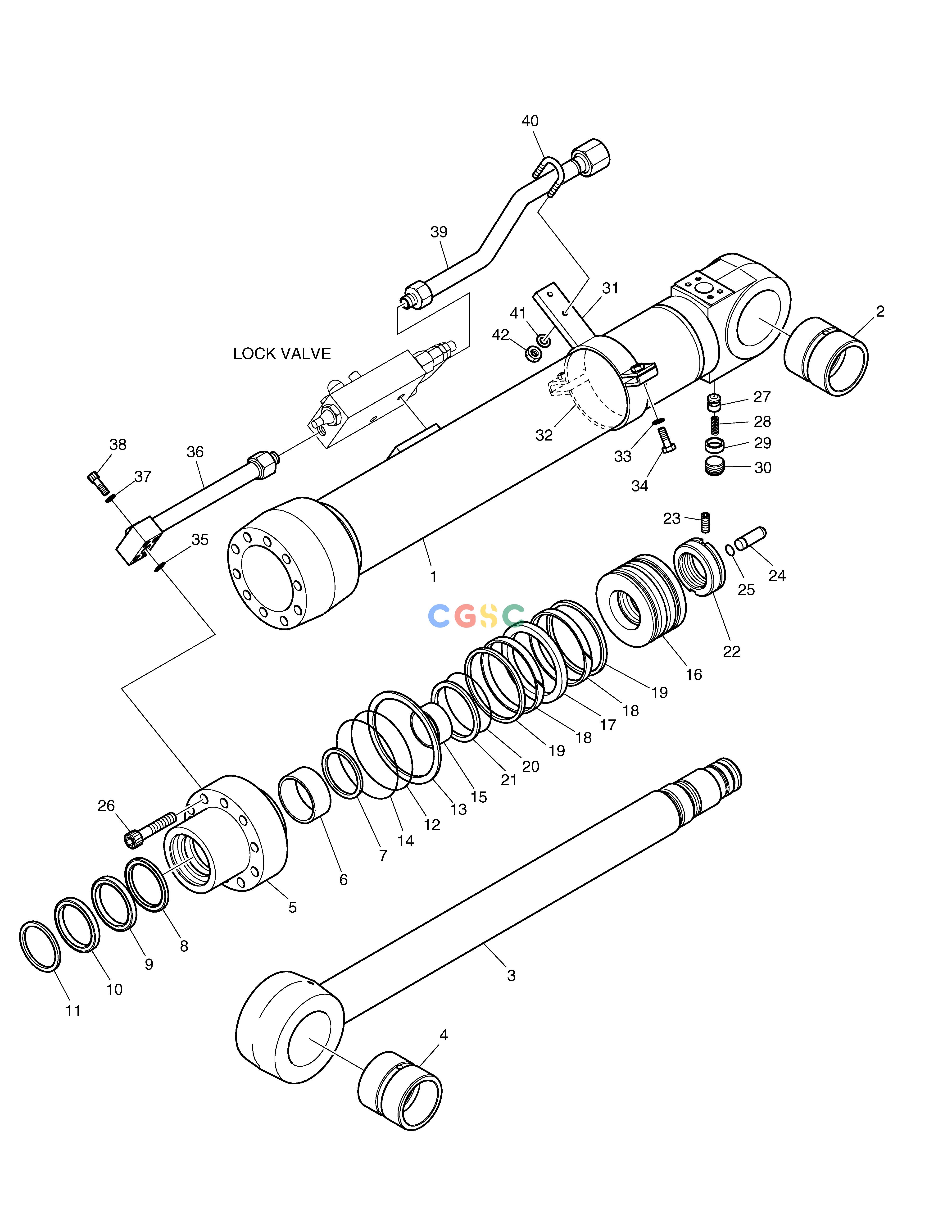

斗山零件查询ARM CYLINDER - LOCK VALVE E80 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9006616
|
[1] |
SEAL KIT
|
|
| -. |
K1050250-L
|
[1] |
CYLINDER;ARM
|
400305-00019-L
|
| -. |
400305-00019-L
|
[1] |
CYLINDER;ARM
|
400305-00019A-L
|
| -. |
400305-00019A-L
|
[1] |
|
|
| 1. |
420406-01052-L
|
[1] |
|
|
| 10. |
1.180-00496
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00052
|
[1] |
RING;RETAINING
|
|
| 12. |
S8010951
|
[1] |
O-RING
|
|
| 13. |
1.180-00273
|
[1] |
RING;BACK UP
|
|
| 14. |
S8011001
|
[1] |
. O-RING
|
|
| 15. |
K9001428
|
[1] |
RING;CUSHION
|
|
| 16. |
K9002149
|
[1] |
PISTON
|
|
| 17. |
180-00314
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
K9006822
|
[2] |
RING;WEAR
|
|
| 19. |
K9006817
|
[2] |
RING;DUST
|
|
| 2. |
K1029243B
|
[1] |
BUSH
|
131008-00103
|
| 2. |
131008-00103
|
[1] |
|
|
| 20. |
1.180-00117
|
[1] |
O-RING
|
|
| 21. |
K9001374
|
[2] |
BACK UP RING
|
|
| 22. |
K9001375
|
[1] |
NUT;PISTON
|
|
| 23. |
S3523836
|
[1] |
SCREW;SET
|
|
| 24. |
1.424-00066
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
1.115-00364
|
[1] |
RING;STOP
|
|
| 26. |
S2218961
|
[10] |
BOLT
|
|
| 27. |
1.420-00037
|
[1] |
VALVE;CHECK
|
|
| 28. |
1.131-00009
|
[1] |
SPRING
|
|
| 29. |
1.195-00022
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
K9006846-L
|
[1] |
ROD ASS'Y
|
400337-00450-L
|
| 3. |
400337-00450-L
|
[1] |
|
|
| 30. |
2181-1116D3
|
[1] |
PLUG;HEX. SOCKET
|
|
| 31. |
K9006848-L
|
[1] |
PIPE BAND ASS'Y
|
|
| 32. |
K9006823-L
|
[1] |
BAND;PIPE
|
|
| 33. |
S5100603
|
[2] |
WASHER
|
|
| 34. |
S0558153
|
[2] |
BOLT
|
|
| 35. |
S8000201
|
[1] |
O-RING
|
|
| 36. |
K9008365-L
|
[1] |
PIPE ASS'Y
|
|
| 37. |
S5100503
|
[4] |
WASHER
|
|
| 38. |
S2209561
|
[4] |
BOLT;SOCKET M8X1.25X45
|
|
| 39. |
K9008366-L
|
[1] |
PIPE ASS'Y
|
|
| 4. |
K1029243B
|
[1] |
BUSH
|
131008-00103
|
| 4. |
131008-00103
|
[1] |
|
|
| 40. |
K9006820
|
[1] |
U-BOLT
|
|
| 41. |
S5100503
|
[2] |
WASHER
|
|
| 42. |
S4012533
|
[2] |
NUT
|
|
| 5. |
K9006824
|
[1] |
COVER;ROD
|
|
| 6. |
1.110-00068
|
[1] |
DD-BUSH
|
|
| 7. |
1.115-00032
|
[1] |
RING;RETAINING
|
|
| 8. |
1.180-00472
|
[1] |
SEAL;BUFFER
|
|
| 9. |
1.180-00208
|
[1] |
U-PACKING
|
|
