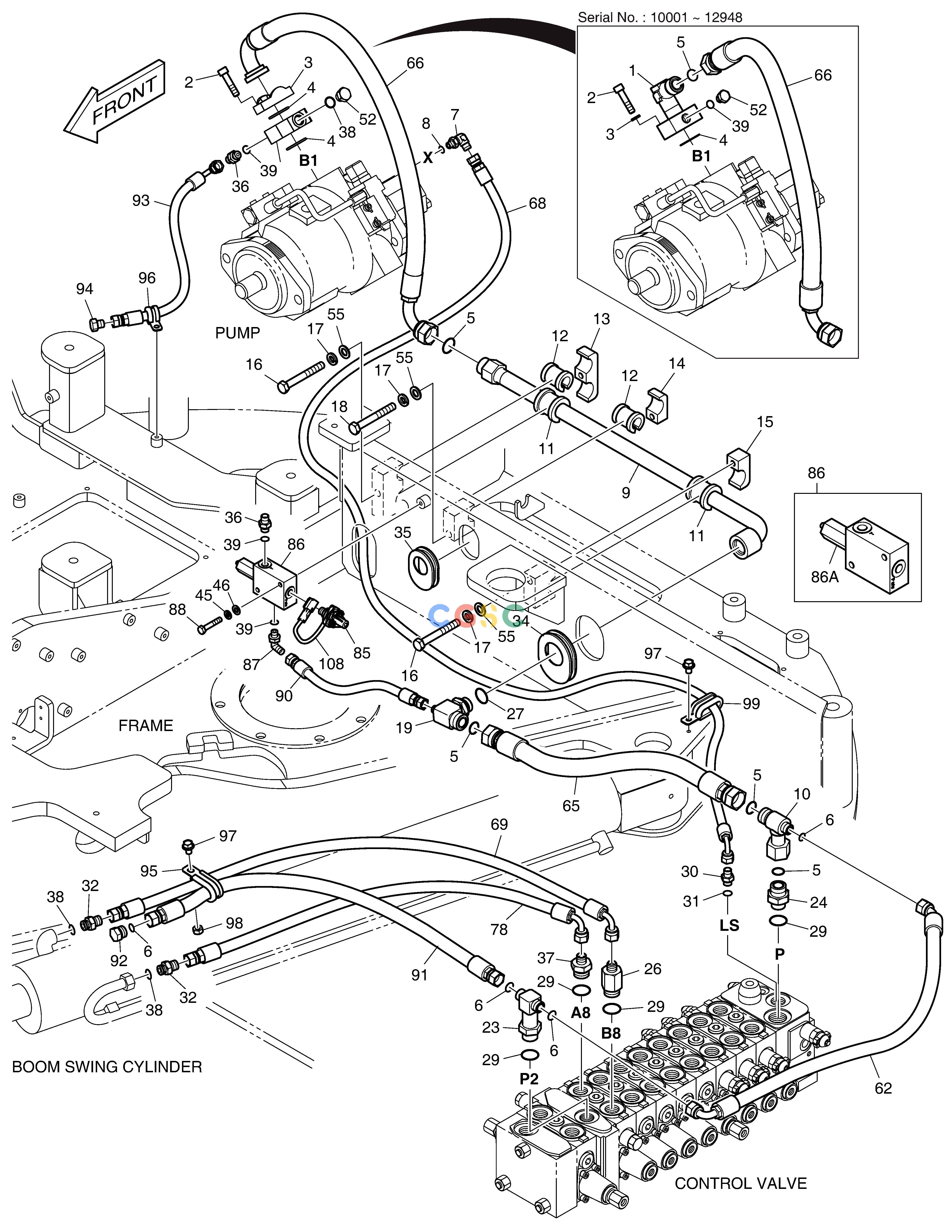

斗山零件查询MAIN PIPING(3) E80 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1030392E
|
[-] |
MAIN PIPING
|
|
| -. |
420212-00246
|
[-] |
MAIN PIPING
|
|
| 1. |
K1039079B
|
[1] |
FLANGE
|
|
| 1. |
430204-00042
|
[1] |
|
|
| 10. |
DS2417006
|
[1] |
TEE
|
|
| 108. |
530-00067
|
[1] |
HARNESS
|
|
| 108. |
310207-02079
|
[1] |
|
|
| 11. |
K1000294A
|
[2] |
RUBBER
|
|
| 12. |
K1039808
|
[2] |
RUBBER
|
|
| 13. |
K1039783
|
[1] |
CLAMP
|
|
| 14. |
K1039857
|
[1] |
CLAMP
|
|
| 15. |
K1039856
|
[1] |
CLAMP
|
|
| 16. |
S0561666
|
[2] |
BOLT
|
|
| 17. |
S5102703
|
[3] |
WASHER
|
|
| 18. |
S0561566
|
[1] |
BOLT
|
|
| 19. |
K1045414
|
[1] |
ELBOW
|
|
| 2. |
S2212566
|
[4] |
BOLT
|
|
| 2. |
S2212766
|
[4] |
BOLT;SOCKET M10X1.5X55
|
|
| 23. |
DS2361009
|
[1] |
TEE
|
|
| 24. |
2181-4133D18
|
[1] |
ADAPTER
|
|
| 26. |
DS2213161
|
[1] |
ADAPTER
|
|
| 27. |
S8000241
|
[1] |
O-RING
|
|
| 29. |
2180-1026D12
|
[4] |
O-RING
|
|
| 3. |
S5110613
|
[4] |
WASHER;SPRING M10
|
|
| 3. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 30. |
2181-1126D35
|
[1] |
ADAPTER
|
|
| 31. |
S8040061
|
[1] |
O-RING
|
|
| 32. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 34. |
K1040617
|
[1] |
GROMMET
|
|
| 35. |
K1040615
|
[1] |
GROMMET
|
|
| 36. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 37. |
2181-1126D10
|
[1] |
ADAPTER
|
|
| 38. |
S8000141
|
[2] |
O-RING
|
|
| 38. |
S8000141
|
[3] |
O-RING
|
|
| 39. |
S8000111
|
[4] |
O-RING
|
|
| 39. |
S8000111
|
[3] |
O-RING
|
|
| 4. |
2180-1026D19
|
[1] |
O-RING
|
|
| 4. |
DS2856003
|
[2] |
O-RING
|
|
| 45. |
S5100503
|
[2] |
WASHER
|
|
| 46. |
S5010503
|
[2] |
WASHER
|
|
| 5. |
S8030121
|
[5] |
O-RING
|
|
| 5. |
S8030121
|
[4] |
O-RING
|
|
| 52. |
DS2901020
|
[1] |
PLUG
|
|
| 52. |
DS2901012
|
[1] |
PLUG
|
|
| 55. |
S5010713
|
[3] |
WASHER;PLAIN
|
|
| 6. |
S8030081
|
[4] |
O-RING
|
|
| 62. |
DS2021244
|
[1] |
HOSE UNF13/16-530L
|
|
| 65. |
DS2011782
|
[1] |
HOSE UNF1 3/16-510L
|
|
| 66. |
DS2013195
|
[1] |
HOSE
|
|
| 66. |
DS2026519
|
[1] |
|
|
| 68. |
DS2093649
|
[1] |
HOSE PF1/4-1740L
|
|
| 69. |
DS2093626
|
[1] |
HOSE
|
|
| 7. |
2181-1702D47
|
[1] |
ELBOW UNF7/16-PF1/4
|
|
| 78. |
DS2093273
|
[1] |
HOSE
|
DS2093412
|
| 78. |
DS2093412
|
[1] |
HOSE
|
|
| 8. |
2180-1026D26
|
[1] |
O-RING
|
|
| 85. |
K1030850
|
[1] |
SWITCH;PRESSURE
|
|
| 85. |
301413-00110
|
[1] |
|
301413-00286
|
| 85. |
301413-00286
|
[1] |
SWITCH,PRESSURE;1/2-20 UNF,25BAR
|
|
| 86. |
K1044973
|
[1] |
VALVE;REDUCING
|
410126-00008
|
| 86. |
410126-00008
|
[1] |
|
410126-00008A
|
| 86. |
410126-00008A
|
[1] |
|
|
| 86A. |
K9006937
|
[1] |
VALVE;RELIEF
|
|
| 86A. |
410126-00025
|
[1] |
|
|
| 87. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 88. |
S0556266
|
[2] |
BOLT
|
|
| 9. |
K1039534A
|
[1] |
PIPE
|
420207-00898
|
| 9. |
420207-00898
|
[1] |
|
|
| 90. |
DS2094377
|
[1] |
HOSE PF1/4-410L
|
|
| 91. |
DS2011784
|
[1] |
HOSE UNF13/16-630L
|
|
| 92. |
DS2912005
|
[1] |
PLUG
|
|
| 93. |
DS2093410
|
[1] |
HOSE
|
|
| 93. |
DS2093410
|
[1] |
HOSE
|
|
| 94. |
2181-2339D1
|
[1] |
PLUG PF1/4
|
|
| 95. |
124-00209D2
|
[1] |
CLIP
|
|
| 96. |
124-00208D2
|
[1] |
CLAMP
|
|
| 97. |
K1001029
|
[2] |
BOLT
|
|
| 98. |
S4012536
|
[1] |
NUT
|
|
| 99. |
124-00209D3
|
[1] |
CLIP
|
|
