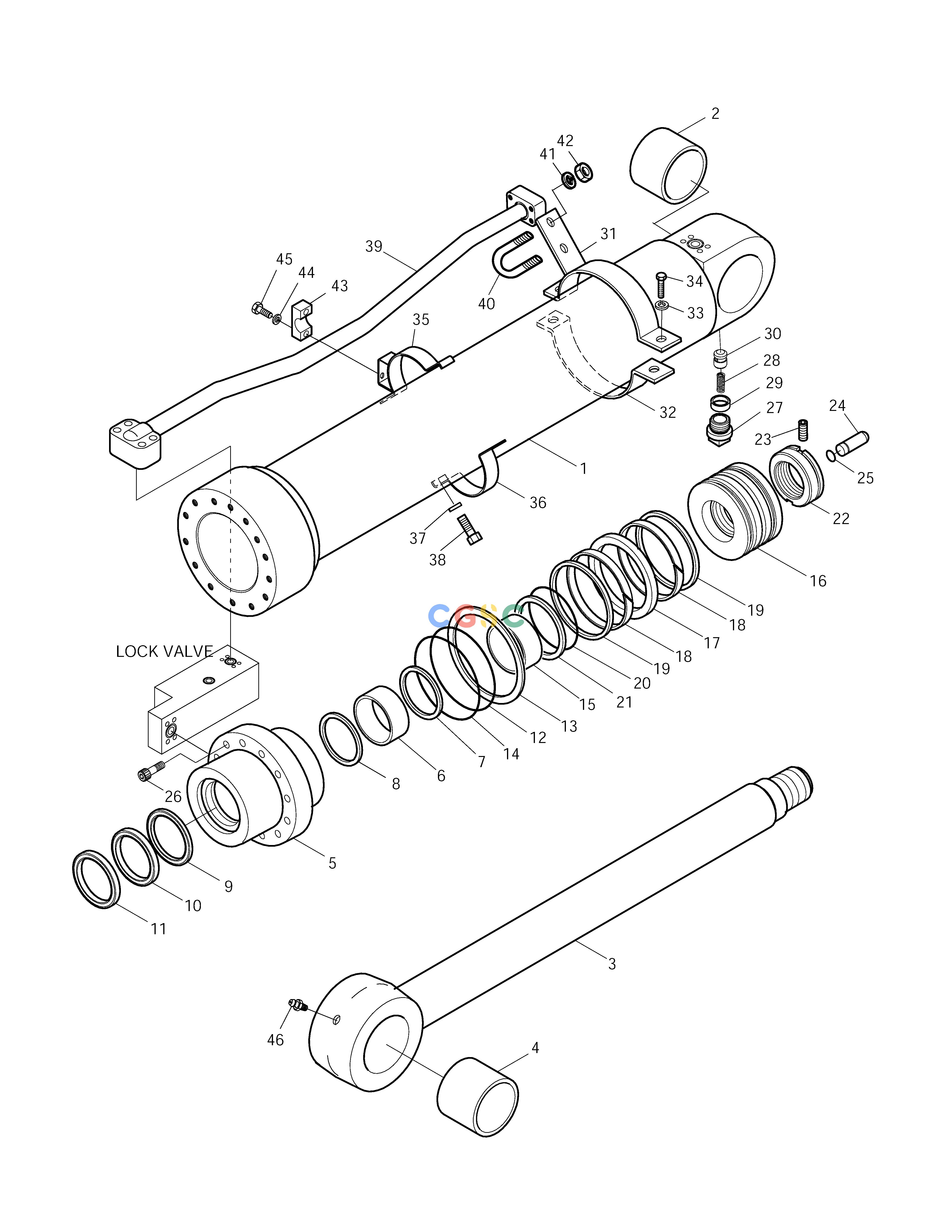

斗山零件查询ARM CYLINDER-LOCK VALVE SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9236KT
|
[1] |
SEAL KIT;ARM CYL.
|
|
| -. |
2440-6493C
|
[1] |
CYLINDER;ARM
|
|
| 1. |
53A531-1
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020310
|
[1] |
WIPER;DUST
|
|
| 11. |
00M316-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311701
|
[1] |
O-RING
|
|
| 13. |
53A379-0
|
[1] |
RING;BACK UP
|
|
| 14. |
E6311741
|
[1] |
O-RING
|
|
| 15. |
00C307-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53A304-0
|
[1] |
PISTON
|
|
| 17. |
E5130310
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00Z108-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R725-0
|
[2] |
RING;SLYD
|
|
| 2. |
00T194-0
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6311421
|
[1] |
O-RING
|
|
| 21. |
53B315-0
|
[2] |
RING;BACK UP
|
|
| 22. |
80A478-2
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
03A713-0
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
03A714-0
|
[1] |
RING;STOP
|
|
| 26. |
E0502149
|
[14] |
BOLT;SOCKET
|
|
| 27. |
03A260-0
|
[1] |
VALVE;CHECK
|
|
| 28. |
03A729-0
|
[1] |
SPRING
|
|
| 29. |
03A728-0
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
53A292-2
|
[1] |
ROD ASS'Y
|
|
| 30. |
E1500030
|
[1] |
PLUG
|
|
| 31. |
53A551-0
|
[1] |
PIPE BAND ASS'Y-A
|
|
| 32. |
00P373-0
|
[1] |
BAND;PIPE
|
|
| 33. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 34. |
E0020683
|
[2] |
BOLT;HEX
|
|
| 35. |
53A563-0
|
[1] |
PIPE BAND ASS'Y-B
|
|
| 36. |
00P373-0
|
[1] |
BAND;PIPE
|
|
| 37. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 38. |
E0020683
|
[2] |
BOLT;HEX
|
|
| 39. |
53A411-1
|
[1] |
PIPE ASS'Y-R
|
|
| 4. |
00T194-0
|
[1] |
BUSH;STEEL
|
|
| 40. |
03A534-0
|
[1] |
U-BOLT
|
|
| 41. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 42. |
E2022033
|
[2] |
NUT;HEX
|
|
| 43. |
00C270-0
|
[1] |
CLAMP;PIPE
|
|
| 44. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 45. |
E0020733
|
[2] |
BOLT;HEX
|
|
| 46. |
E8841022
|
[1] |
NIPPLE;GREASE
|
|
| 5. |
53A295-1
|
[1] |
COVER;ROD
|
|
| 6. |
E8412282
|
[1] |
BUSH;DU
|
|
| 7. |
00M314-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500310
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303260
|
[1] |
PACKING;U
|
|
