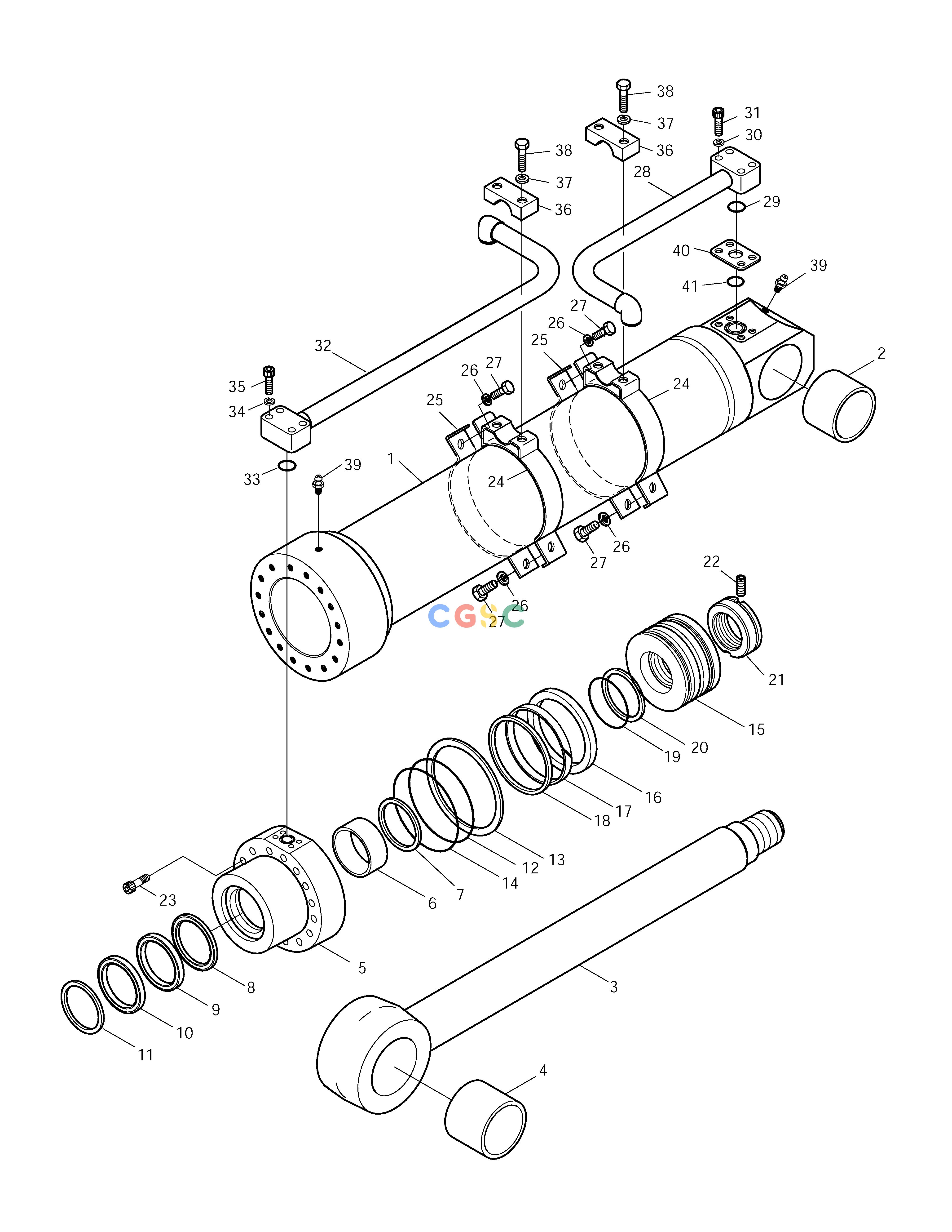

斗山零件查询ARTI.BOOM CYLINDER SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00184KT
|
[1] |
SEAL KIT
|
|
| -. |
440-00454
|
[1] |
ARTI. BOOM CYLINDER
|
|
| 1. |
1.441-00143
|
[1] |
TUBE ASS'Y
|
|
| 10. |
115-00115
|
[1] |
WIPER;DUST
|
|
| 11. |
115-00109
|
[1] |
RING;RETAINING
|
|
| 12. |
S8011901
|
[1] |
O-RING
|
|
| 13. |
1.180-00300
|
[1] |
RING;BACK UP
|
|
| 14. |
S8012001
|
[1] |
O-RING
|
|
| 15. |
1.409-00230
|
[1] |
PISTON
|
|
| 16. |
1.180-00556
|
[1] |
SEAL;SLIPPER
|
|
| 17. |
1.180-00629
|
[1] |
RING;WEAR
|
|
| 18. |
1.180-00364
|
[1] |
RING;SLYD
|
|
| 19. |
S8011051-90
|
[1] |
O-RING
|
|
| 2. |
1.110-00130
|
[1] |
BUSH;STEEL
|
|
| 20. |
1.180-00630
|
[2] |
RING;BACK UP
|
|
| 21. |
1.121-00070
|
[1] |
NUT;PISTON
|
|
| 22. |
1.120-00219
|
[1] |
SCREW;SET
|
|
| 23. |
S2224971
|
[16] |
BOLT;SOCKET
|
|
| 24. |
1.124-00017
|
[2] |
PIPE BAND ASS'Y
|
|
| 25. |
1.124-00018
|
[2] |
BAND;PIPE
|
|
| 26. |
S5100603
|
[4] |
WASHER
|
|
| 27. |
S0558153
|
[4] |
BOLT
|
|
| 28. |
1.140-00151
|
[1] |
PIPE ASS'Y-H
|
|
| 29. |
S8000281
|
[1] |
O-RING
|
|
| 3. |
1.444-00003
|
[1] |
ROD ASS'Y
|
|
| 30. |
S5100603
|
[4] |
WASHER
|
|
| 31. |
S2212961
|
[4] |
BOLT;SOCKET
|
|
| 32. |
1.140-00230
|
[1] |
PIPE ASS'Y-R
|
|
| 33. |
S8000281
|
[1] |
O-RING
|
|
| 34. |
S5100603
|
[4] |
WASHER
|
|
| 35. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 36. |
124-00059
|
[2] |
CLAMP;PIPE
|
|
| 37. |
S5100603
|
[4] |
WASHER
|
|
| 38. |
S2212461
|
[4] |
BOLT;SOCKET
|
|
| 39. |
S6710032
|
[2] |
NIPPLE;GREASE
|
|
| 4. |
1.110-00115
|
[1] |
BUSH;STEEL
|
|
| 40. |
114-00292
|
[1] |
SPACER
|
|
| 41. |
S8000281
|
[1] |
O-RING
|
|
| 5. |
1.442-00002
|
[1] |
COVER;ROD
|
|
| 6. |
110-00121
|
[1] |
BUSH;DD
|
|
| 7. |
115-00108
|
[1] |
RING;RETAINING
|
|
| 8. |
180-00324
|
[1] |
SEAL;BUFFER
|
|
| 9. |
115-00114
|
[1] |
PACKING;U
|
|
