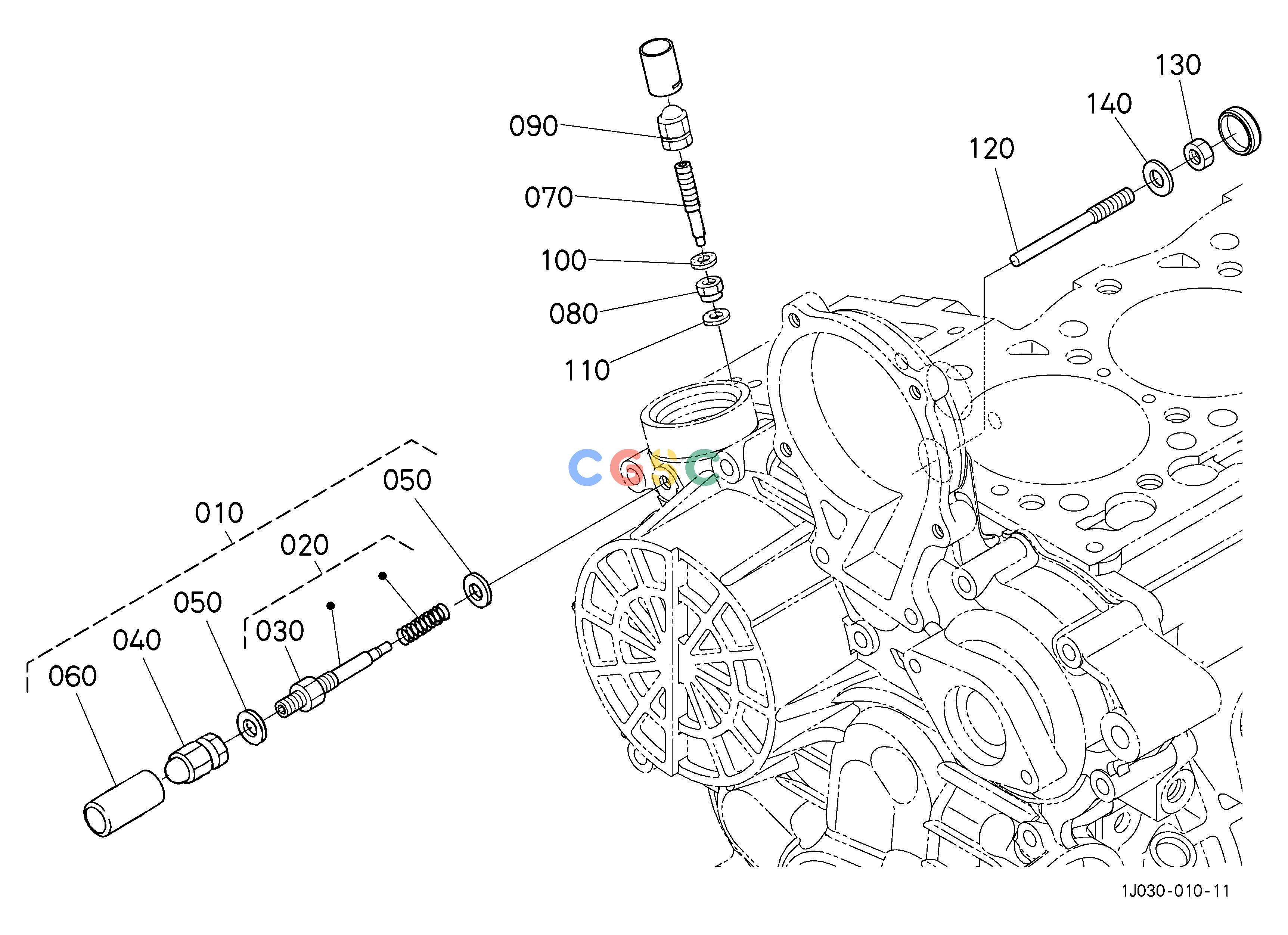

久保田零件查询120000 IDLE APPARATUS ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
707 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G18854090
|
[1] |
APPARATUS,IDLING
|
0.0528(lbs); 0.024
|
| 020. |
1G18854100
|
[1] |
ASSY BOLT,ADJUSTMENT
|
0.0220(lbs); 0.010
|
| 030. |
1584192020
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 040. |
1585292330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
1560196650
|
[2] |
PACKING
|
0.0022(lbs); 0.001
|
| 060. |
1622154420
|
[1] |
CAP
|
0.0022(lbs); 0.001
|
| 070. |
1624154122
|
[1] |
BOLT,ADJUSTING
|
0.0110(lbs); 0.005
|
| 080. |
1G03154210
|
[1] |
NUT(LOCK)
|
0.0066(lbs); 0.003
|
| 090. |
1585292330
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
1560196650
|
[1] |
PACKING
|
0.0022(lbs); 0.001
|
| 110. |
1G02196650
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 120. |
1G05354150
|
[1] |
BOLT
|
0.0198(lbs); 0.009
|
| 130. |
0205650060
|
[1] |
HEX.NUT
|
0.0044(lbs); 0.002
|
| 140. |
1560196650
|
[1] |
PACKING
|
0.0022(lbs); 0.001
|
