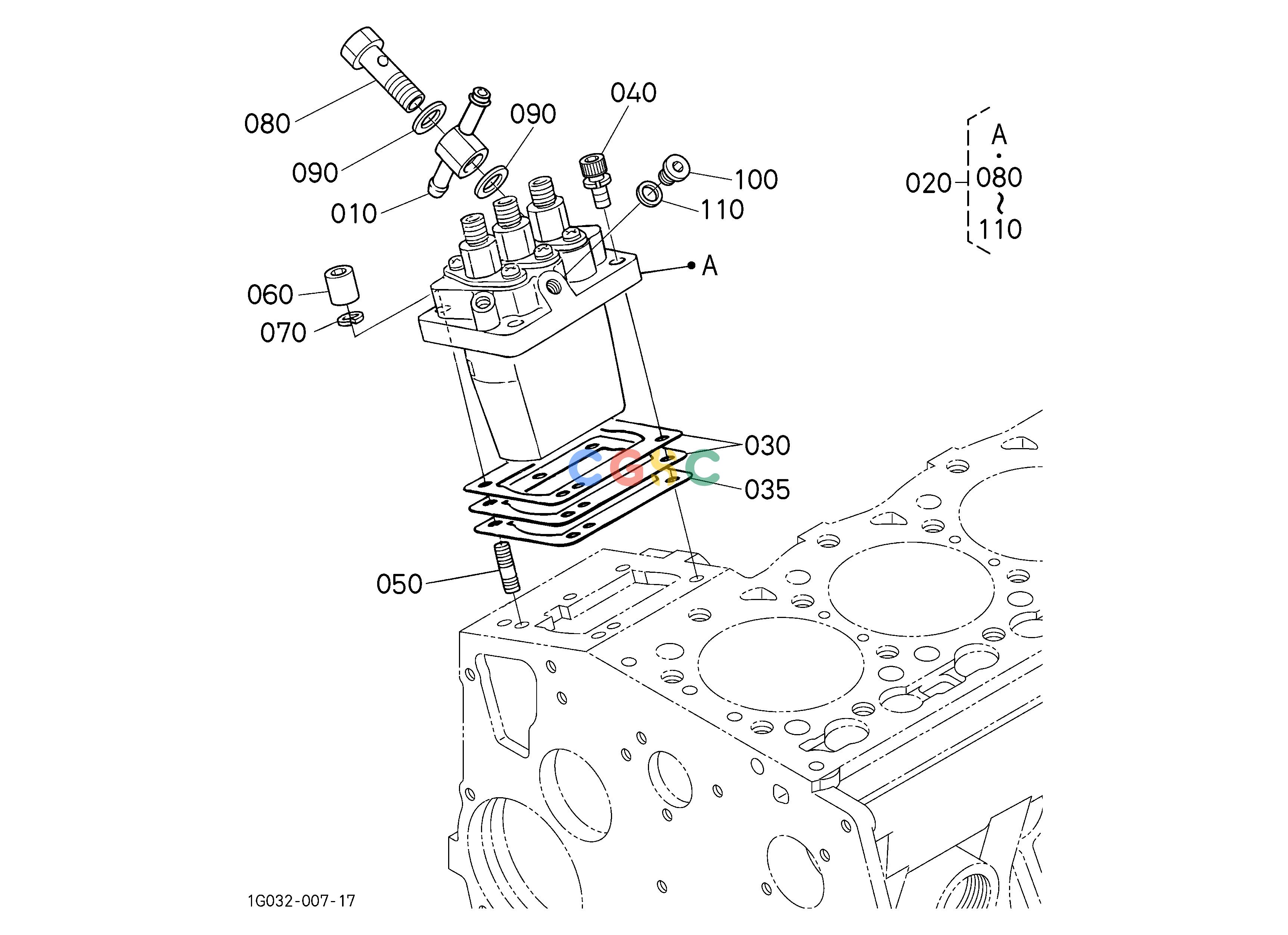

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1627195690
|
[1] |
JOINT,SWV PIPE
|
0.1012(lbs); 0.046
|
| 020. |
1603251010
|
[1] |
PUMP,INJECTION,ASSY
|
2.2000(lbs); 1.000
|
| 020. |
1603251013
|
[1] |
ASSY PUMP,INJECTION
|
2.2000(lbs); 1.000
|
| 030. |
1600652092
|
[1] |
SHIM,INJECTION
|
0.0088(lbs); 0.004
|
| 030. |
1600652112
|
[1] |
SHIM(INJECTION PUMP)
|
0.0088(lbs); 0.004
|
| 030. |
1600652122
|
[1] |
SHIM(INJECTION PUMP)
|
0.0132(lbs); 0.006
|
| 030. |
1G70052160
|
[1] |
SHIM,INJECTION PUMP
|
0.0088(lbs); 0.004
|
| 035. |
1G70052200
|
[1] |
SHIM,INJECTION
|
0.0110(lbs); 0.005
|
| 040. |
1687191060
|
[2] |
BOLT,SOCKET HEAD
|
0.0154(lbs); 0.007
|
| 050. |
1584191500
|
[2] |
STUD
|
0.0440(lbs); 0.020
|
| 060. |
1584192320
|
[2] |
NUT,CAP
|
0.0220(lbs); 0.010
|
| 070. |
0451250060
|
[2] |
WASHER,SPRING LOCK
|
0.0022(lbs); 0.001
|
| 080. |
1627151320
|
[1] |
SCREW(ROOF,CANOPY)
|
0.0682(lbs); 0.031
|
| 090. |
1584196650
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 100. |
1603096010
|
[1] |
PLUG
|
0.0176(lbs); 0.008
|
| 110. |
1586196650
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
