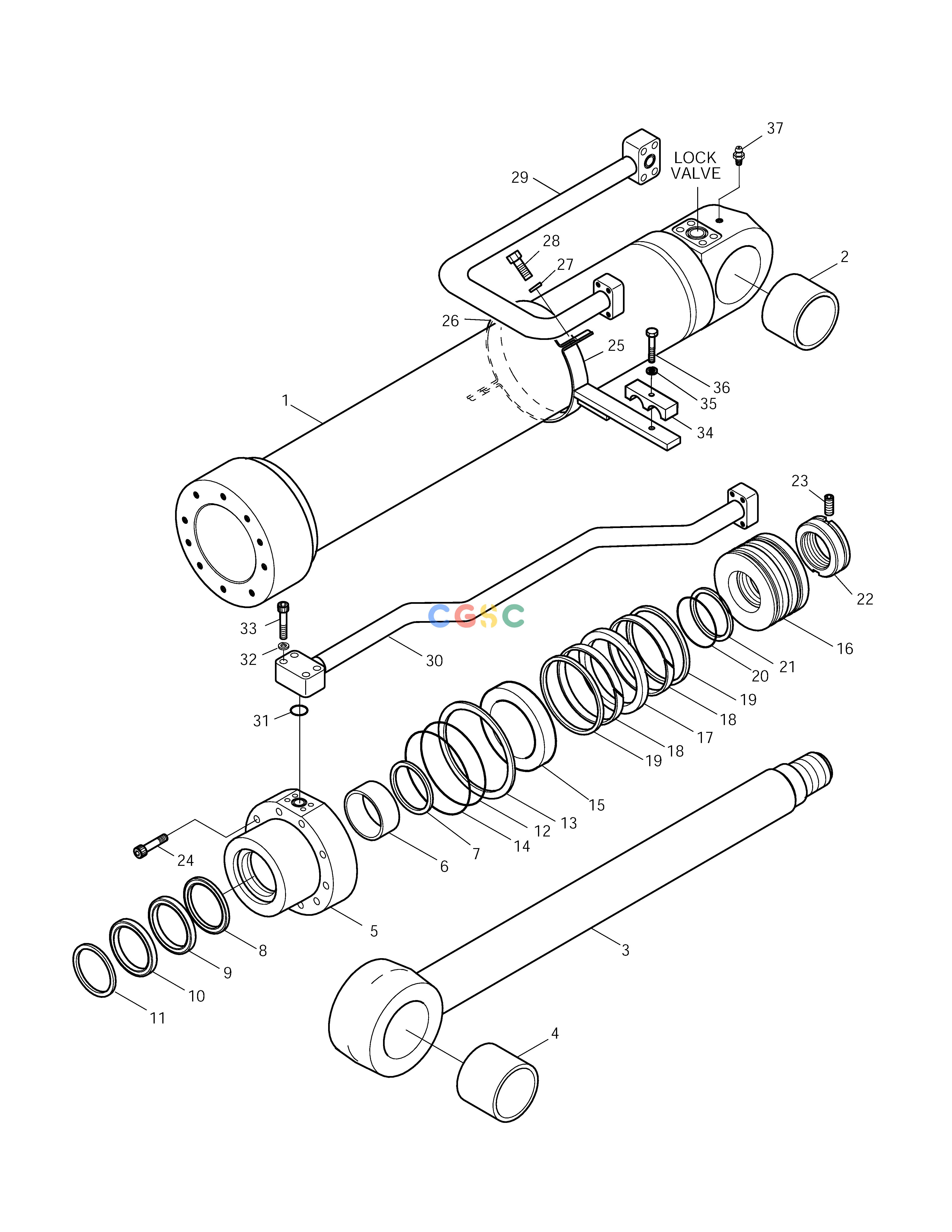

斗山零件查询BOOM CYLINDER(L.H)-LOCK VALVE SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
171 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00355AKT
|
[1] |
SEAL KIT;BOOM CYL.
|
|
| -. |
440-00360A
|
[1] |
CYLINDER;BOOM(L.H)
|
|
| 1. |
53B846-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020280
|
[1] |
WIPER;DUST
|
|
| 11. |
00M314-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311621
|
[1] |
O-RING
|
|
| 13. |
53B423-1
|
[1] |
RING;BACK UP
|
|
| 14. |
E6311641
|
[1] |
O-RING
|
|
| 15. |
00C363-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53B393-1
|
[1] |
PISTON
|
|
| 17. |
E5130260
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00Z105-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R097-0
|
[2] |
RING;SLYD
|
|
| 2. |
00T195-0
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6311301
|
[1] |
O-RING
|
|
| 21. |
53B422-0
|
[2] |
RING;BACK UP
|
|
| 22. |
80B485-2
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
E0502139
|
[10] |
BOLT;SOCKET
|
|
| 25. |
53B847-0
|
[1] |
PIPE BAND ASS'Y
|
|
| 26. |
03B243-0
|
[1] |
BAND;PIPE
|
|
| 27. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 28. |
E0020673
|
[2] |
BOLT;HEX
|
|
| 29. |
53B853-0
|
[1] |
PIPE ASS'Y-H
|
|
| 3. |
53B704-0
|
[1] |
ROD ASS'Y
|
|
| 30. |
53B876-0
|
[1] |
PIPE ASS'Y-R
|
|
| 31. |
E6300621
|
[1] |
O-RING
|
|
| 32. |
E3110102
|
[4] |
WASHER;SPRING
|
|
| 33. |
E0501246
|
[4] |
BOLT;SOCKET
|
|
| 34. |
00C261-0
|
[1] |
CLAMP;PIPE
|
|
| 35. |
E3110112
|
[1] |
WASHER;SPRING
|
|
| 36. |
E0021023
|
[1] |
BOLT;HEX
|
|
| 37. |
E8841022
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
00T193-0
|
[1] |
BUSH;STEEL
|
|
| 5. |
53B394-2
|
[1] |
COVER;ROD
|
|
| 6. |
E8412280
|
[1] |
BUSH;DU
|
|
| 7. |
00M320-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500280
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303140
|
[1] |
PACKING;U
|
|
