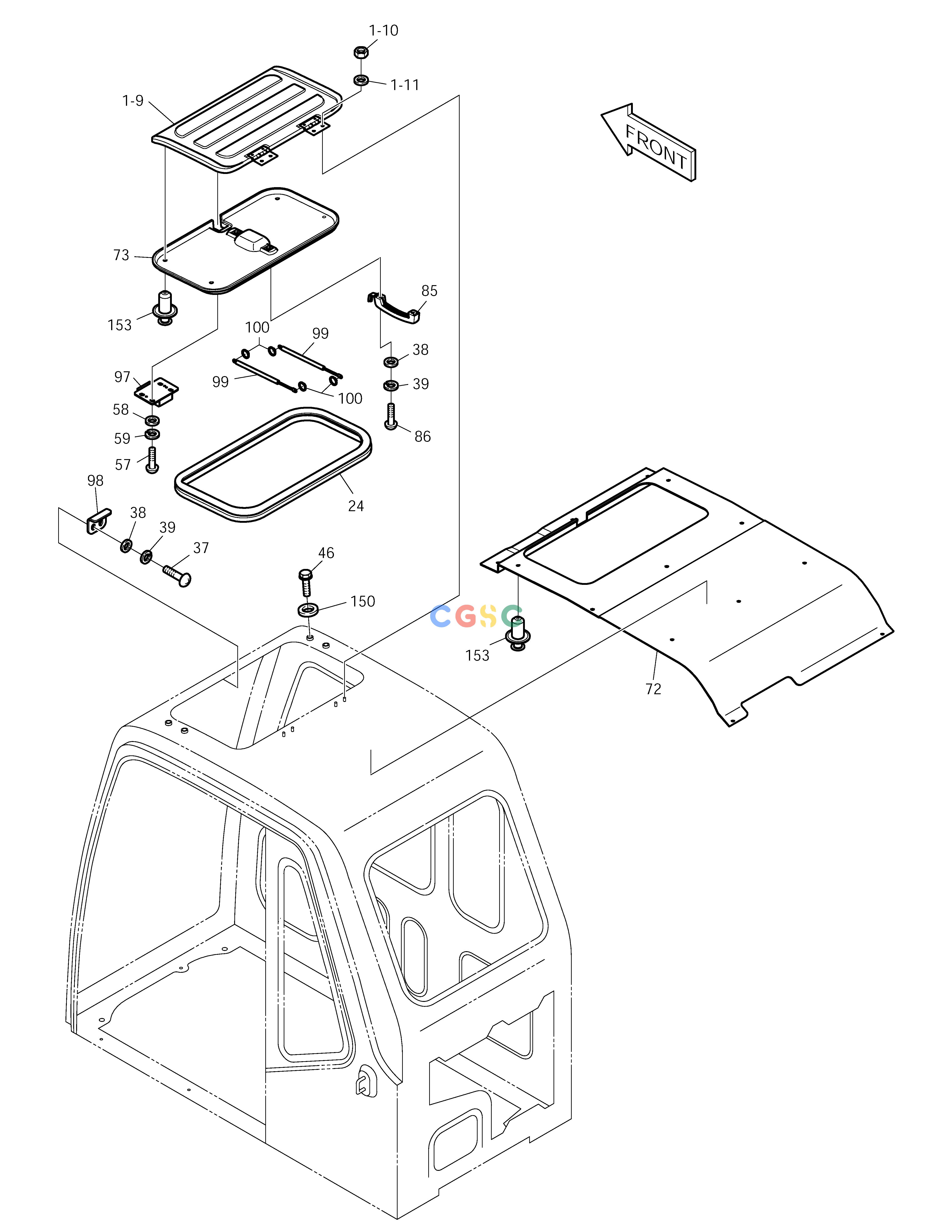

斗山零件查询CABIN(4) SOLAR 150LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1432J
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1432P
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1432Q
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1432R
|
[1] |
CABIN ASS'Y
|
|
| 1-10. |
S4012533
|
[4] |
NUT
|
|
| 1-11. |
S5010513
|
[4] |
WASHER
|
|
| 1-9. |
2621-3767A
|
[1] |
PANEL;ROOF
|
|
| 100. |
S6540600
|
[4] |
RING;RETAINING
|
|
| 150. |
2114-1058D45
|
[4] |
. WASHER
|
|
| 153. |
2120-2174
|
[19] |
SCRIVET
|
|
| 24. |
2162-1065
|
[1] |
. STRIP;WEATHER
|
|
| 37. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 38. |
S5010313
|
[4] |
WASHER
|
|
| 39. |
S5102303
|
[4] |
. WASHER
|
|
| 46. |
2120-2166D4
|
[4] |
BOLT
|
|
| 57. |
S3450833
|
[4] |
BOLT
|
|
| 58. |
S5010213
|
[4] |
WASHER;PLAIN
|
|
| 59. |
S5102203
|
[4] |
WASHER
|
|
| 72. |
2161-2198
|
[1] |
PAD;ROOF
|
|
| 73. |
2161-2199
|
[1] |
PAD;ROOF
|
|
| 85. |
2172-1112
|
[1] |
HANDLE;PULL
|
|
| 86. |
S3450993
|
[2] |
SCREW
|
|
| 97. |
2125-9057
|
[1] |
CATCH;ROOF COVER
|
|
| 98. |
2142-1122A
|
[1] |
STRIKER
|
|
| 99. |
2440-9251
|
[2] |
SPRING;GAS
|
|
