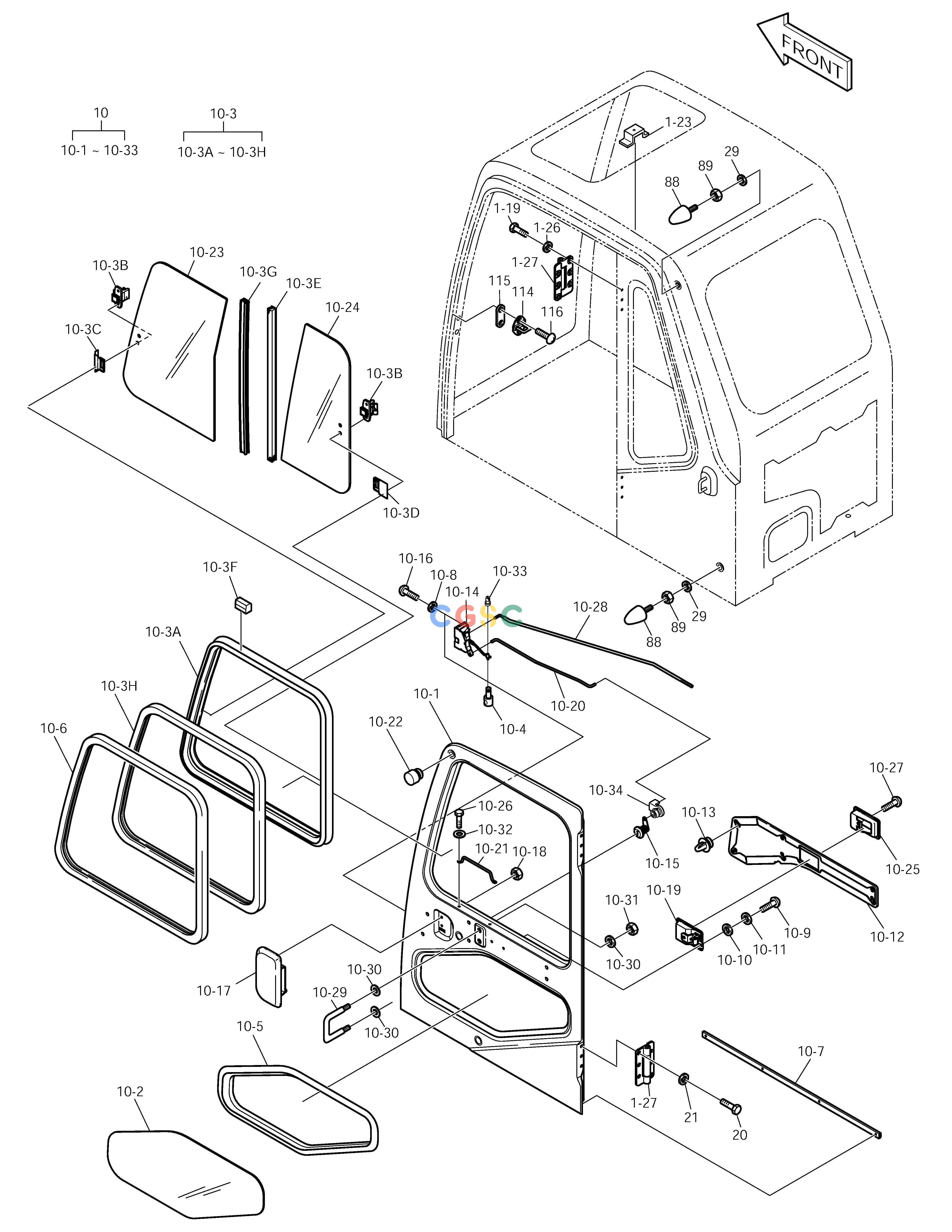

斗山零件查询CABIN(5) SOLAR 150LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2622-1432J
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1432P
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1432Q
|
[1] |
CABIN ASS'Y
|
|
| -. |
2622-1432R
|
[1] |
CABIN ASS'Y
|
|
| 1-19. |
S0512263
|
[6] |
BOLT
|
|
| 1-23. |
2150-1134
|
[4] |
HOOK
|
|
| 1-26. |
2114-1058D45
|
[6] |
. WASHER
|
|
| 1-27. |
2171-1078
|
[2] |
HINGE
|
|
| 10. |
2627-1046B
|
[1] |
DOOR ASS'Y
|
|
| 10. |
2627-1046C
|
[1] |
DOOR ASS'Y
|
|
| 10-1. |
2621-3765B
|
[1] |
PANEL;DOOR
|
|
| 10-10. |
S5010213
|
[2] |
WASHER;PLAIN
|
|
| 10-11. |
S5102203
|
[2] |
WASHER
|
|
| 10-12. |
2161-2222
|
[1] |
PAD;DOOR
|
|
| 10-13. |
2124-1607
|
[6] |
CLIP;TRIM
|
|
| 10-14. |
2125-9036
|
[1] |
. CATCH,DOOR LOCK
|
|
| 10-15. |
2172-9036
|
[1] |
CYLINDER;KEY
|
|
| 10-16. |
2120-2150D3
|
[3] |
SCREW
|
|
| 10-17. |
2172-9021
|
[1] |
. HANDLE,OUTER
|
|
| 10-18. |
S4012303
|
[2] |
NUT
|
|
| 10-19. |
2172-9022
|
[1] |
HANDLE;INNER
|
|
| 10-2. |
2903-1214
|
[1] |
GLASS;DOOR t=5
|
|
| 10-20. |
2136-1431
|
[1] |
ROD;HANDLE INNER DOOR
|
|
| 10-21. |
2172-1110B
|
[1] |
HANDLE;DOOR
|
|
| 10-22. |
2161-2227
|
[1] |
STOPPER
|
|
| 10-23. |
2903-1219A
|
[1] |
GLASS 5T
|
|
| 10-24. |
2903-1220
|
[1] |
GLASS 5T
|
|
| 10-25. |
2621-9005
|
[1] |
COVER;HANDLE
|
|
| 10-26. |
2120-2166D5
|
[2] |
BOLT
|
|
| 10-27. |
S3452823
|
[1] |
SCREW M5X0.8X10
|
|
| 10-28. |
2123-2239A
|
[1] |
ROD;DOOR LOCK
|
|
| 10-29. |
2150-1132A
|
[1] |
. HOOK,CATCH DOOR
|
|
| 10-3. |
2622-9030
|
[1] |
SASH ASS'Y;DOOR
|
|
| 10-3. |
2622-9030A
|
[1] |
SASH ASS'Y;DOOR
|
|
| 10-30. |
2891-1311
|
[4] |
. PLATE
|
|
| 10-31. |
S4012533
|
[2] |
NUT
|
|
| 10-32. |
2114-1898D2
|
[2] |
WASHER
|
|
| 10-3A. |
2622-6014
|
[1] |
SASH
|
|
| 10-3B. |
2123-6119
|
[2] |
.. LOCK,SASH
|
|
| 10-3C. |
2116-6006
|
[1] |
STOPPER;LOCK
|
|
| 10-3D. |
2116-6007
|
[1] |
STOPPER;LOCK
|
|
| 10-3E. |
2731-6002
|
[1] |
BAR;SEAL
|
|
| 10-3F. |
2161-6063
|
[2] |
STOPPER;CLASS
|
|
| 10-3G. |
2731-6003
|
[1] |
BAR;CENTER
|
|
| 10-3H. |
2161-6060
|
[1] |
RUN CHANNEL
|
|
| 10-4. |
2123-2247
|
[1] |
. PIN
|
|
| 10-5. |
2198-1054
|
[1] |
S-RUBBER;DOOR
|
|
| 10-6. |
2161-2229
|
[1] |
FINISHER;SASH DOOR
|
|
| 10-7. |
2180-1267
|
[1] |
SEAL;DOOR
|
|
| 10-8. |
S5210303
|
[3] |
. WASHER
|
|
| 10-9. |
S3450833
|
[2] |
BOLT
|
|
| 114. |
2142-9005
|
[1] |
STRIKER
|
|
| 115. |
2114-1856
|
[1] |
SHIM
|
|
| 116. |
2120-2150D1
|
[2] |
BOLT
|
|
| 20. |
S0512263
|
[6] |
BOLT
|
|
| 21. |
2114-1058D45
|
[6] |
. WASHER
|
|
| 29. |
S5010613
|
[2] |
WASHER
|
|
| 88. |
2161-2226
|
[2] |
STOPPER;RUBBER
|
|
| 89. |
S4014633
|
[2] |
. NUT
|
|
