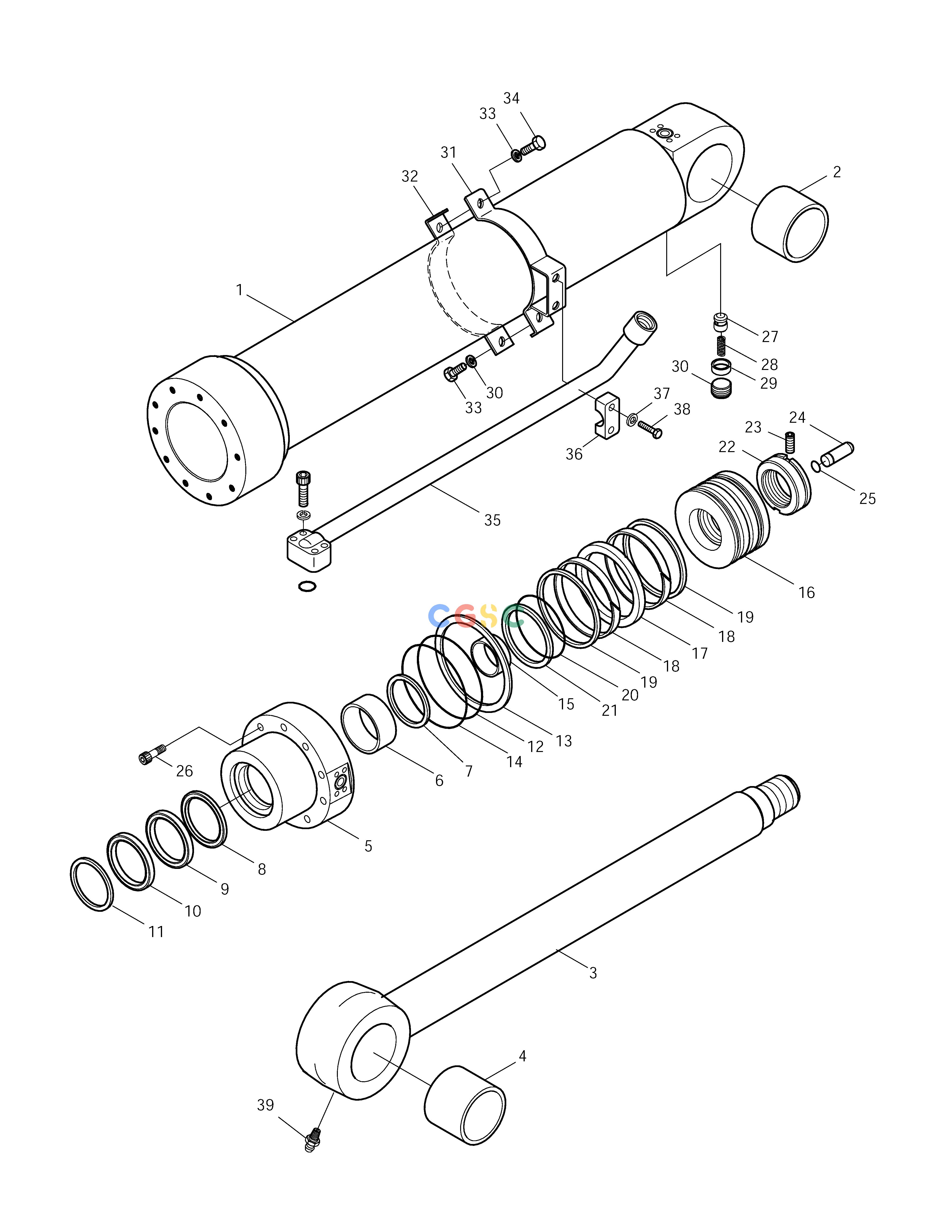

斗山零件查询ARM CYLINDER-LOCK VALVE SOLAR 150LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
198 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9232KT
|
[1] |
SEAL KIT
|
|
| -. |
440-00064
|
[1] |
CYLINDER;ARM
|
|
| 1. |
53A628-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020260
|
[1] |
WIPER;DUST
|
|
| 11. |
00M313-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311581
|
[1] |
O-RING
|
|
| 13. |
53U237-0
|
[1] |
RING;BACK UP
|
|
| 14. |
E6311621
|
[1] |
O-RING
|
|
| 15. |
00C304-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53A349-1
|
[1] |
PISTON
|
|
| 17. |
E5130250
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00Z104-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R727-0
|
[2] |
RING;SLYD
|
|
| 2. |
03U769-1
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6490086
|
[1] |
O-RING
|
|
| 21. |
53A387-0
|
[2] |
RING;BACK UP
|
|
| 22. |
80B485-2
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
03A713-0
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
03A714-0
|
[1] |
RING;STOP
|
|
| 26. |
E0502139
|
[10] |
BOLT;SOCKET
|
|
| 27. |
60P226-0
|
[1] |
VALVE;CHECK
|
|
| 28. |
04S480-0
|
[1] |
SPRING
|
|
| 29. |
03A728-0
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
53A346-2
|
[1] |
ROD ASS'Y
|
|
| 30. |
E1500030
|
[1] |
PLUG
|
|
| 31. |
53U335-2
|
[1] |
PIPE BAND ASS'Y
|
|
| 32. |
53U384-0
|
[1] |
BAND;PIPE
|
|
| 33. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 34. |
E0020673
|
[2] |
BOLT;HEX
|
|
| 35. |
140-00118
|
[1] |
PIPE ASS'Y-R
|
|
| 36. |
00C267-0
|
[1] |
CLAMP;PIPE
|
|
| 37. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 38. |
E0020733
|
[2] |
BOLT;HEX
|
|
| 39. |
E8841022
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
03U769-1
|
[1] |
BUSH;STEEL
|
|
| 5. |
53A352-1
|
[1] |
COVER;ROD
|
|
| 6. |
E8412908
|
[1] |
BUSH;DD
|
|
| 7. |
00M312-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500260
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303040
|
[1] |
PACKING;U
|
|
