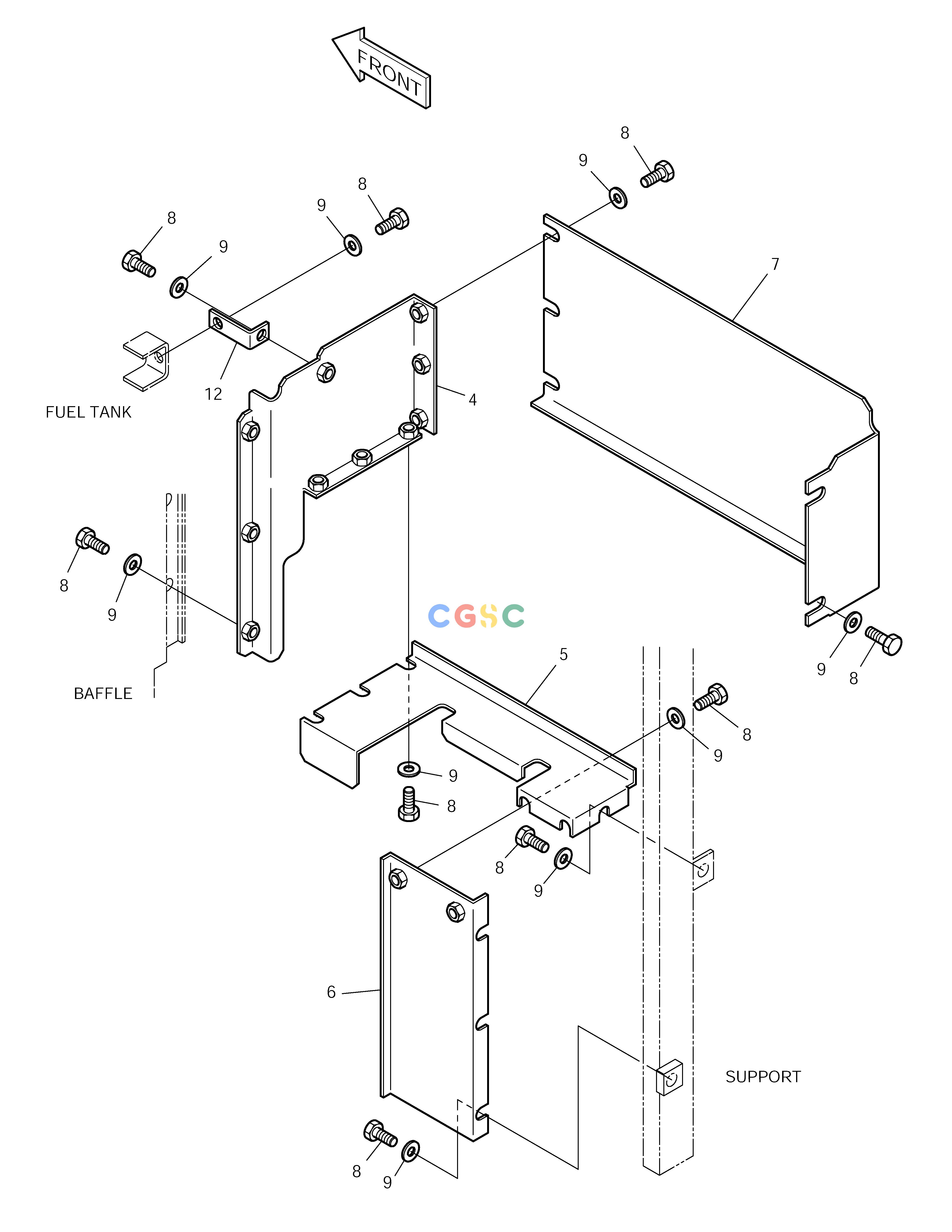

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 464-00091 | [-] | BAFFLE ASS'Y | |
| 12. | 2891-1398 | [1] | PLATE | |
| 4. | 2621-3636C | [1] | COVER | |
| 5. | 2621-3637A | [1] | COVER | |
| 6. | 2621-3638A | [1] | COVER | |
| 7. | 2621-3639B | [1] | COVER | |
| 8. | S0511853 | [19] | BOLT | |
| 9. | 2114-1058D10 | [19] | WASHER |
广数供应链运营团队, 15 02月, 2025，浏览： 903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 464-00091 | [-] | BAFFLE ASS'Y | |
| 12. | 2891-1398 | [1] | PLATE | |
| 4. | 2621-3636C | [1] | COVER | |
| 5. | 2621-3637A | [1] | COVER | |
| 6. | 2621-3638A | [1] | COVER | |
| 7. | 2621-3639B | [1] | COVER | |
| 8. | S0511853 | [19] | BOLT | |
| 9. | 2114-1058D10 | [19] | WASHER |
