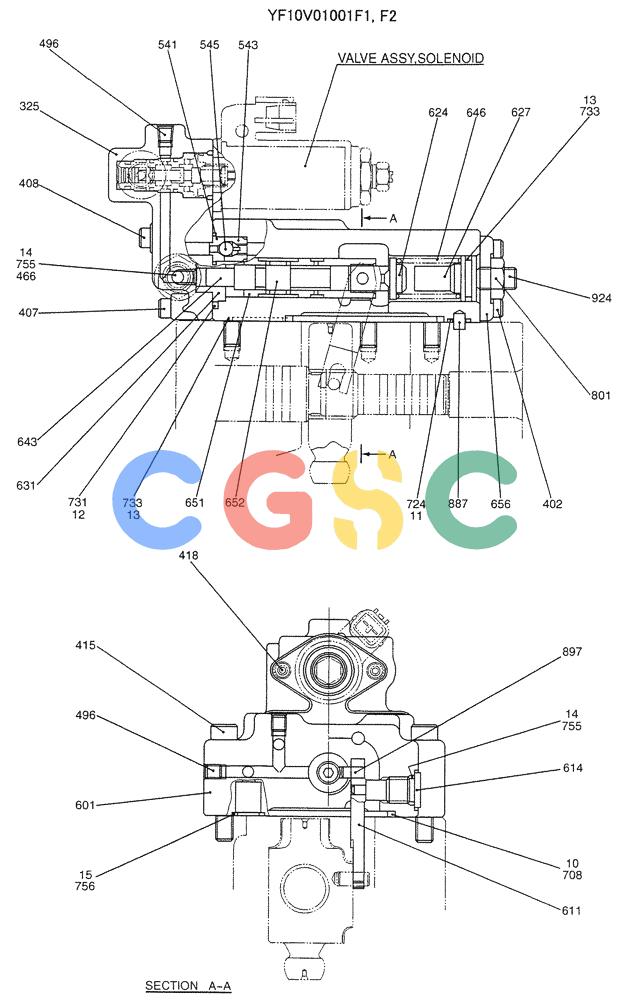

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-012) - REGULATOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
858 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10. | YX10V01001S010 | [1] | O-RING | KOB(FOR F2 ONLY) |
| 11. | YX10V00003S015 | [5] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB(FOR F2 ONLY) |
| 12. | YX10V01001S012 | [1] | O-RING | KOB(FOR F2 ONLY) |
| 13. | YT10V00003S708 | [2] | O-RING | KOBFOR F2 ONLY) |
| 14. | YT10V00003S710 | [2] | O-RING | KOB(FOR F2 ONLY) |
| 15. | YX10V01001S015 | [2] | O-RING | KOB(FOR F2 ONLY) |
| 325. | NSS | [1] | NOT SERVICED SEPARATELY | CONCASE, VALVE |
| 402. | ZS23C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCAP Superseded by part number: ZS28C06016 |
| 407. | ZS23C06030 | [4] | SCREW,Hex Socket Head, M6 x 30mm | KOBCAP |
| 408. | ZS23C06040 | [1] | SCREW,Hex Socket Head, M6 x 40mm | KOBCAP |
| 415. | ZS23C08050 | [6] | CAP,Hex Socket Head, M8 x 50mm | KOBSCREW |
| 418. | YX35V00002S171 | [2] | SCREW,Hex Socket Head, M5 x 12mm | KOBCAP Superseded by part number: ZS23C05012 |
| 466. | 2441U667S466 | [1] | PLUG | KOB |
| 496. | 2441U722S490 | [9] | PLUG | KOB |
| 541. | YX10V01001S541 | [1] | SEAT | KOB |
| 543. | YX10V01001S543 | [1] | STOP | KOB Superseded by part number: YF10V01001R100 |
| 545. | 2436R284S416 | [1] | BALL | KOB |
| 708. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOB(FOR F1 ONLY) |
| 724. | ZD12P00800 | [5] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOB(FOR F1 ONLY) |
| 731. | ZD12P02500 | [1] | O-RING | KOB(FOR F1 ONLY) |
| 733. | ZD12P01800 | [2] | O-RING | KOB(FOR F1 ONLY) |
| 755. | ZD12P01100 | [2] | O-RING | KOB(FOR F1 ONLY) |
| 756. | ZD12P01250 | [2] | O-RING | KOB(FOR F1 ONLY) |
| 801. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 924. | YF10V01001S924 | [1] | SCREW | KOBSET |
| . . | YF10V01001R100 | [1] | STOP | KOBREPAIR KIT CONSISTS OF REF. 541(1), 543(1), 545(1) |
