纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-013) - MOTOR ASSY (SWING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
798 次

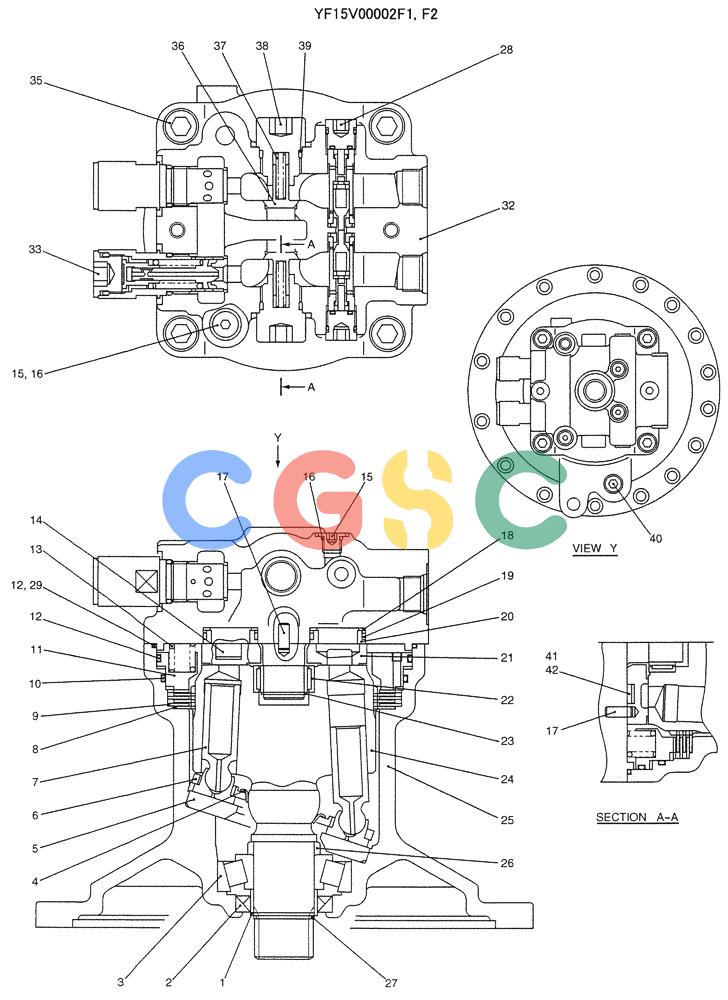

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ15V00015S001 | [1] | SNAP RING | KOB |
| 2. | LQ15V00015S002 | [1] | OIL SEAL | KOB |
| 3. | LQ15V00015S003 | [1] | ROLLER BEARING | KOBROLLER |
| 4. | LQ15V00015S004 | [1] | SPRING SEAT | KOB |
| 5. | LQ15V00015S005 | [1] | PLATE | KOB |
| 6. | LQ15V00015S006 | [1] | PLATE | KOB |
| 7. | NSS | [9] | NOT SERVICED SEPARATELY | CONPISTON ASSY |
| 8. | LQ15V00015S008 | [3] | PLATE | KOB |
| 9. | LQ15V00015S009 | [3] | PLATE | KOB |
| 10. | LQ15V00015S010 | [1] | O-RING | KOB Superseded by part number: 45Z91D91 |
| 11. | LQ15V00015S011 | [1] | PISTON | KOBPISTON |
| 12. | LQ15V00015S012 | [2] | O-RING | KOB |
| 13. | LQ15V00015S013 | [19] | SPRING | KOB |
| 14. | LQ15V00015S014 | [2] | PISTON | KOB |
| 15. | 2436U1309S41 | [3] | CAP | KOBPLUG |
| 16. | ZD12P01100 | [3] | O-RING | KOB |
| 17. | 2441U455S53 | [2] | PIN | KOBPIN |
| 18. | LQ15V00015S018 | [4] | WASHER, LOCK | KOBRING |
| 19. | LQ15V00015S019 | [4] | RING | KOB |
| 20. | LQ15V00015S020 | [4] | BUSHING | KOB |
| 21. | LQ15V00015S021 | [1] | PLATE | KOB |
| 22. | LQ15V00015S022 | [1] | NEEDLE BEARING,45mm ID x 33mm OD x 20mm W | KOBNEEDLE |
| 23. | LQ15V00015S023 | [1] | RING | KOBRETAINING |
| 26. | LQ15V00015S026 | [1] | RING | KOBCOLLAR |
| 27. | LQ15V00015S027 | [1] | SNAP RING | KOBRETAINING |
| 28. | LQ20V00001F1 | [2] | HYDRAULIC VALVE | KOBASSY, BYPASS SEE FIG. 07-005 |
| 29. | LQ15V00015S029 | [1] | O-RING,183.74mm ID x 3.53mm Width | KOBO-RING, (FOR F2 ONLY) |
| 35. | ZS23C16060 | [4] | SCREW,Hex Socket Head, M16 x 60mm | KOBCAP |
| 36. | 2441U962S45 | [2] | CHECK VALVE | KOB |
| 37. | 2441U962S46 | [2] | SPRING | KOB |
| 38. | 2441U962S48 | [2] | PLUG | KOB |
| 39. | ZD85P02600 | [2] | BACK-UP RING | KOB |
| 40. | LP15V00002S027 | [1] | PLUG | KOB |
| 41. | PH15V00004S013 | [2] | PISTON | KOB |
| 42. | PH15V00004S012 | [2] | RING | KOB |
