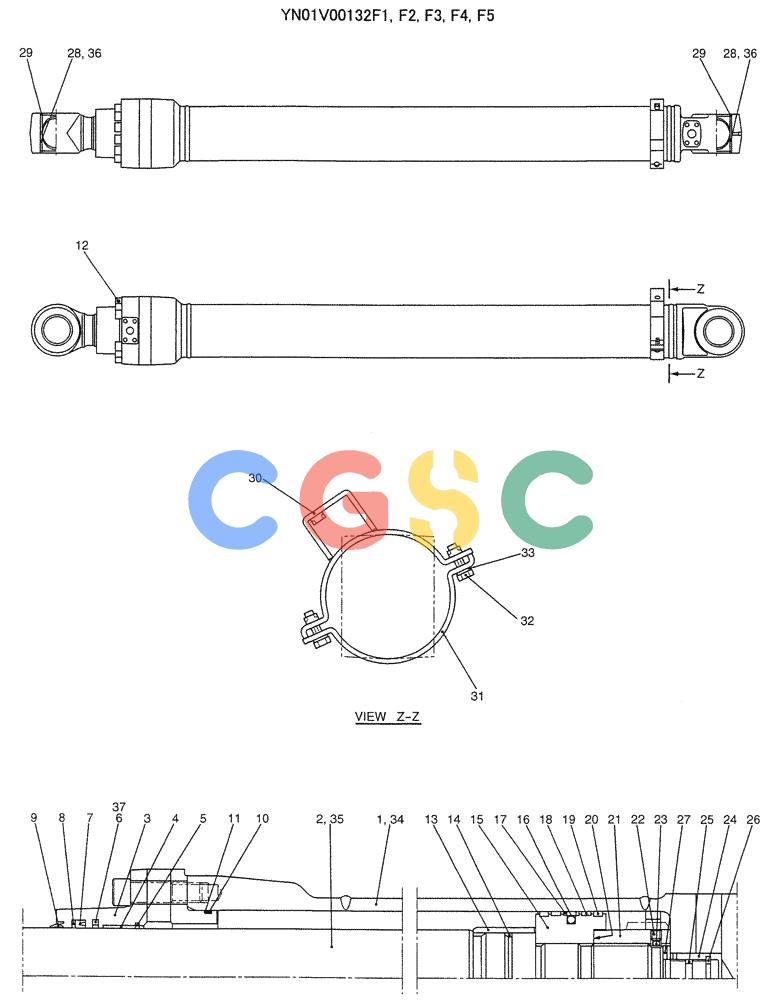

| . . | YN01V00132F1 | [1] | CYLINDER | KOBASSY, ARM Superseded by part number: YN01V00105F2, YN01V00132F4 |
| . . | YN01V00132F2 | [1] | CYLINDER | KOBCYLINDER ASSY, ARM Superseded by part number: YN01V00132F5 |
| . . | YN01V00132F3 | [1] | CYLINDER | KOBCYLINDER ASSY, ARM |
| . . | YN01V00132F4 | [1] | HYDRAULIC CYLINDER | KOBASSY, ARM |
| . . | YN01V00132F5 | [1] | HYDRAULIC CYLINDER | KOBASSY, ARM |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONTUBE, ASSY, (FOR F1, F3 & F4 ONLY) |
| 3. | YN01V00105S003 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U1018S4 | [1] | BUSHING | KOB |
| 5. | 2438U776S5 | [1] | SNAP RING | KOBRETAINING |
| 6. | YN01V00105S006 | [1] | RING | KOBBUFFER, (FOR F1, F2 & F3 ONLY) Superseded by part number: YN01V00132S037 |
| 7. | YN01V00105S007 | [1] | RING | KOBU |
| 8. | YN01V00105S008 | [1] | BACK-UP RING | KOB |
| 9. | YN01V00105S009 | [1] | RING | KOBWIPER |
| 10. | ZD12G13000 | [1] | O-RING,129.40mm ID x 135.60mm OD x 3.10mm | KOB |
| 11. | LQ01V00001S011 | [1] | RING | KOBBACK UP |
| 12. | ZS23C18080 | [12] | CAPSCREW,Hex Socket Head, M18 x 80mm | KOBSCREW CAP |
| 13. | YN01V00105S013 | [1] | BUSHING | KOBCUSHION |
| 14. | YN01V00105S014 | [1] | SEAL | KOBCUSHION |
| 15. | YN01V00118S015 | [1] | PISTON | KOB |
| 16. | LQ01V00001S016 | [1] | RING | KOBSEAL |
| 17. | LQ01V00001S017 | [2] | BACK-UP RING | KOB |
| 18. | YN01V00105S050 | [2] | RING | KOBSLIDE |
| 19. | LQ01V00001S019 | [2] | RING | KOBWEAR |
| 20. | 2438U1170S20 | [1] | SHIM | KOB |
| 21. | YN01V00118S021 | [1] | NUT | KOB |
| 22. | 2438U953S21 | [1] | SET SCREW | KOBSET |
| 23. | 2436R624S6 | [1] | BALL | KOB |
| 24. | YN01V00105S024 | [1] | LOCK NUT | KOBBEARING |
| 25. | LQ01V00007S025 | [1] | SEAL | KOB |
| 26. | 2438U1104S25 | [2] | STOP | KOB |
| 27. | 2438U1104S26 | [1] | RING | KOBRETAINING |
| 28. | YN01V01076P1 | [2] | BUSHING | KOB(FOR F1, F3 & F4 ONLY) |
| 29. | 2438U1102S26 | [4] | SEAL | KOBWIPER |
| 30. | YN01V00105S030 | [1] | BAND | KOBASSY, (FOR F1, F2, F4 & F5 ONLY) |
| 31. | 2438U1018S28 | [1] | BAND | KOB(FOR F1, F2, F4 & F5 ONLY) |
| 32. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 33. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 36. | 2438U1104S28 | [2] | BUSHING | KOB(FOR F2 & F5 ONLY) |
| 37. | YN01V00132S037 | [1] | BACK-UP RING | KOBBUFFER, (FOR F4 & F5 ONLY) |
| . . | YN01V00105R100 | [1] | REPAIR KIT | KOBROD SIDE CONSISTS OF REF 7(1), 8(1), 9(1), 10(1), 11(1), 37(1), (FOR F4 & F5 ONLY) |
| . . | YN01V00105R400 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 29(2), 34(1), 36(1) , (FOR F2 & F5 ONLY) Superseded by part number: YN01V00105R600 |
| . . | YN01V00105R800 | [1] | REPAIR KIT | KOBPISTON SIDE CONSISTS OF REF 14(1), 16(1), 17(2), 18(2), 19(2), 25(1) |
| . . | YN01V00105R900 | [1] | REPAIR KIT | KOBALL(ROD+PISTON) CONSISTS OF REF. 7(1), 8(1), 9(1), 10(1), 11(1), 14(1), 16(1), 17(2), 18(2), 19(2), 25(1), 37(1), (FOR F4 & F5 ONLY) |
| . . | YN01V00105R600 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 1(1), 28(1), 29(2), (FOR F1, F3 & F4 ONLY) |
| . . | YN01V00118R500 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 2(1), 28(1), 29(2), (FOR F1, F3 & F4 ONLY) |
| . . | YN01V00132R100 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF. 29(2), 35(1), 36(1), (FOR F2 & F5 ONLY) |
