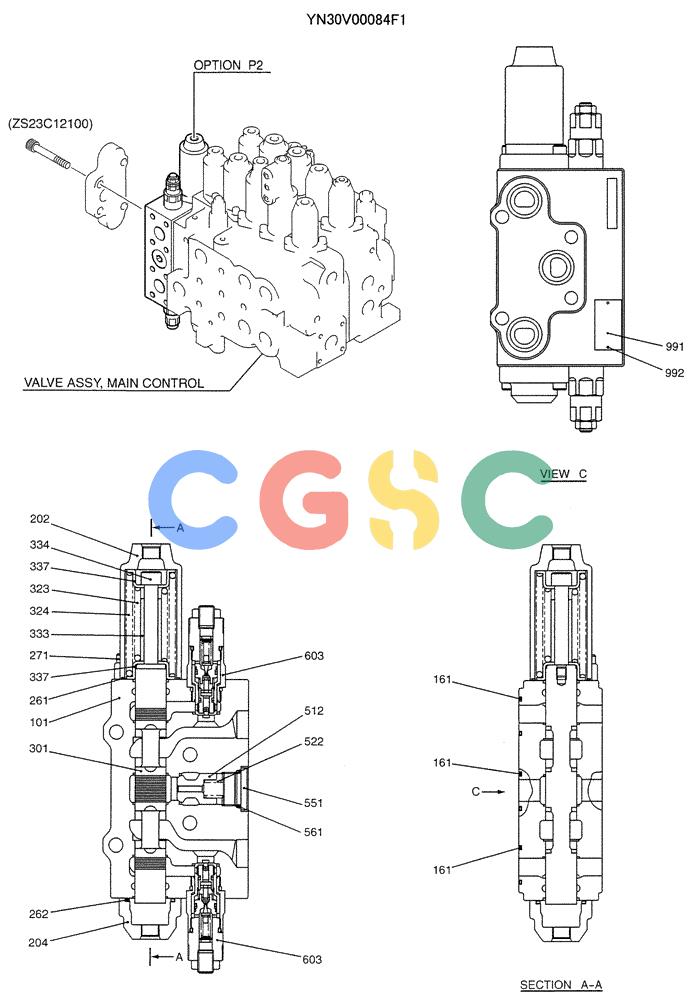

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-033) - VALVE ASSY, CONTROL (OPTION) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
417 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00084F1 | [1] | CONTROL VALVE | KOBASSY |
| 101. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 161. | ZD12G03000 | [3] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOB |
| 202. | 2436U1165S201 | [1] | COVER | KOB |
| 204. | YN30V00001S205 | [1] | COVER | KOB |
| 261. | YN30V00079S261 | [1] | O-RING | KOB |
| 262. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOB |
| 271. | ZS23C08025 | [4] | SCREW,Hex Socket Head, M8 x 25mm | KOBCAP |
| 323. | 2436U1231S323 | [1] | SPRING | KOB |
| 324. | 2436U1165S371 | [1] | SPRING | KOB |
| 333. | 2436U1165S335 | [1] | STOP | KOB |
| 334. | 2436U1165S336 | [1] | BOLT | KOBSPACER |
| 337. | 2436U1443S332 | [2] | SPRING SEAT | KOB |
| 512. | YN30V00084S512 | [1] | POPPET | KOB |
| 522. | YN30V00084S522 | [1] | SPRING | KOB |
| 551. | YN15V00002S012 | [1] | PLUG | KOB |
| 561. | ZD12P02800 | [1] | O-RING | KOB |
| 603. | YN22V00002F1 | [2] | VALVE | KOBASSY, PORT RELIEF, SEE FIG 07-023,024 |
