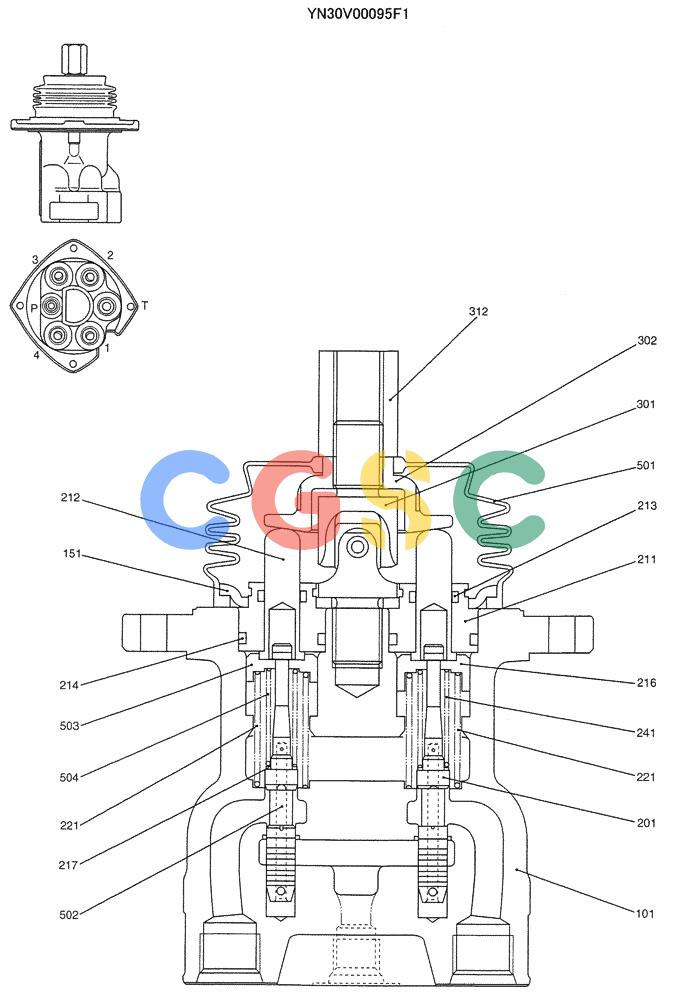

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (07-034) - VALVE ASSY, PILOT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
234 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30V00095F1 | [1] | PILOT VALVE | KOBASSY |
| 101. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY |
| 151. | YT30V00008S151 | [1] | PLATE | KOB |
| 211. | 2436U1277S211 | [4] | PLUG | KOB |
| 212. | 2436U2938S212 | [4] | ROD | KOBPUSH |
| 213. | 2436U1277S213 | [4] | SEAL | KOBSEAL |
| 214. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 216. | YT30V00008S216 | [2] | SEAT | KOBSPRING |
| 217. | 2436U1277S217 | [4] | WASHER | KOB |
| 221. | YN30V00069S221 | [4] | SPRING | KOB |
| 241. | YN30V00069S241 | [2] | SPRING | KOB |
| 301. | 2436U2581S301 | [1] | FLEXIBLE JOINT | KOB |
| 302. | YT30V00008S302 | [1] | PLATE | KOB |
| 312. | YT30V00008S312 | [1] | NUT | KOB |
| 501. | YT30V00008S501 | [1] | BOOT | KOB |
| 503. | YT30V00008S010 | [2] | SPRING SEAT | KOB |
| 504. | YN30V00069S242 | [2] | SPRING | KOB |
