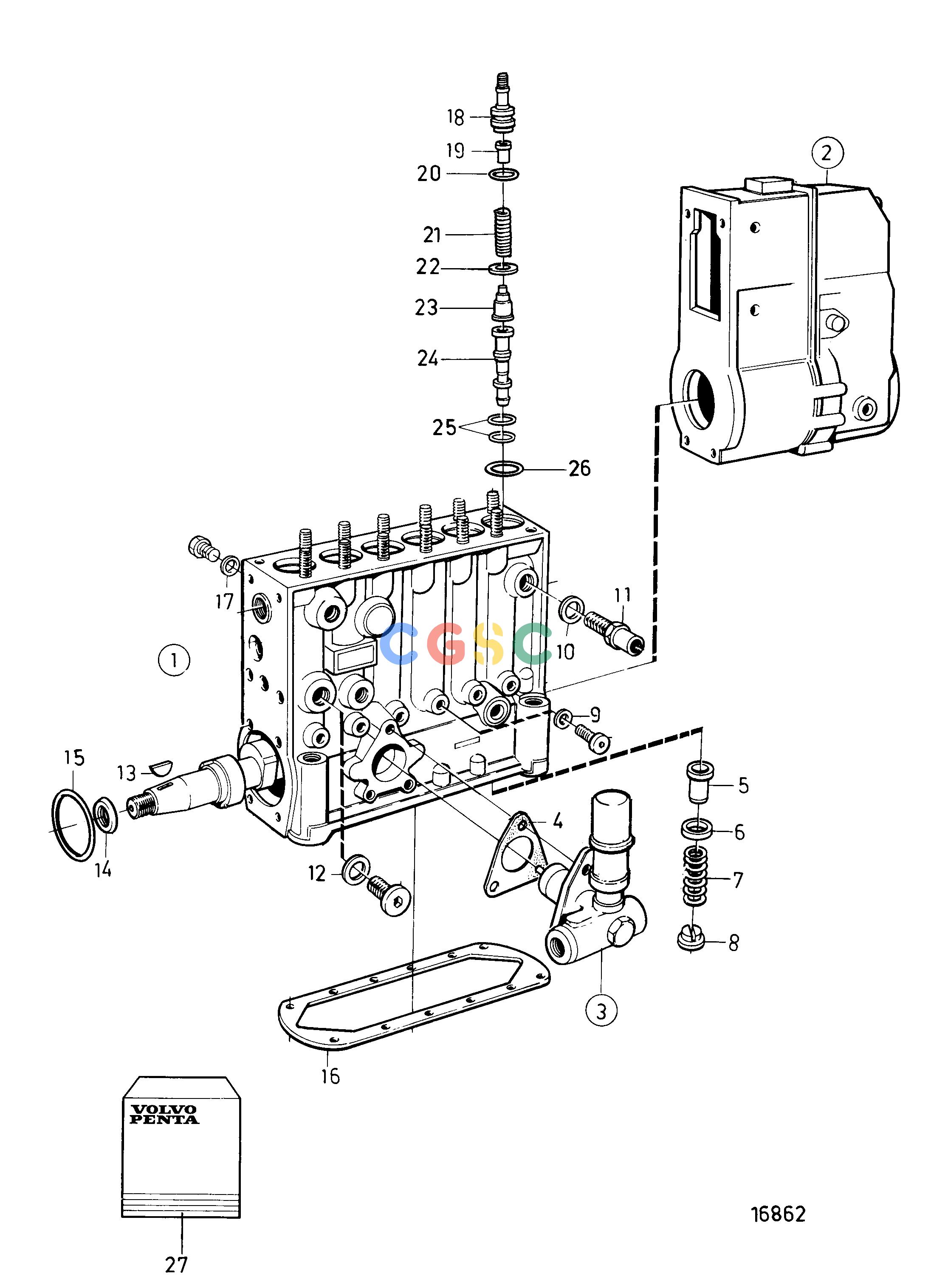

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemFuel Injection Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827704
|
[1] |
Injection pump
|
|
| 1. |
3803792
|
[1] |
Injection pump
|
|
| 2. |
865134
|
[1] |
Governor
|
|
| 2. |
|
|
|
|
| 3. |
244825
|
[1] |
Feed pump
|
|
| 3. |
|
|
|
|
| 4. |
863370
|
[1] |
Gasket
|
(6232208)
|
| 5. |
240782
|
[6] |
Control sleeve
|
|
| 6. |
239984
|
[6] |
Spring disc
|
|
| 7. |
1699465
|
[6] |
Compression spring
|
|
| 8. |
244685
|
[6] |
Spring disc
|
|
| 9. |
18836
|
[6] |
Gasket
|
|
| 10. |
969011
|
[1] |
Gasket
|
|
| 11. |
3825154
|
[1] |
Overflow valve
|
|
| 12. |
240017
|
[1] |
Gasket
|
|
| 13. |
35168
|
[1] |
Key
|
|
| 14. |
864299
|
[1] |
Camshaft seal
|
|
| 15. |
243299
|
[1] |
O-ring
|
|
| 16. |
1699581
|
[1] |
Gasket
|
|
| 17. |
969011
|
[1] |
Gasket
|
|
| 18. |
244636
|
[6] |
Retainer
|
|
| 19. |
240971
|
[6] |
Peg
|
|
| 20. |
240001
|
[6] |
O-ring
|
|
| 21. |
240969
|
[6] |
Compression spring
|
|
| 22. |
239993
|
[6] |
Sealing washer
|
|
| 23. |
849033
|
[6] |
Delivery valve
|
|
| 24. |
846576
|
[6] |
Pump element
|
|
| 25. |
240422
|
[12] |
O-ring
|
|
| 26. |
|
|
|
|
| 27. |
845240
|
[1] |
Repair kit
|
|
