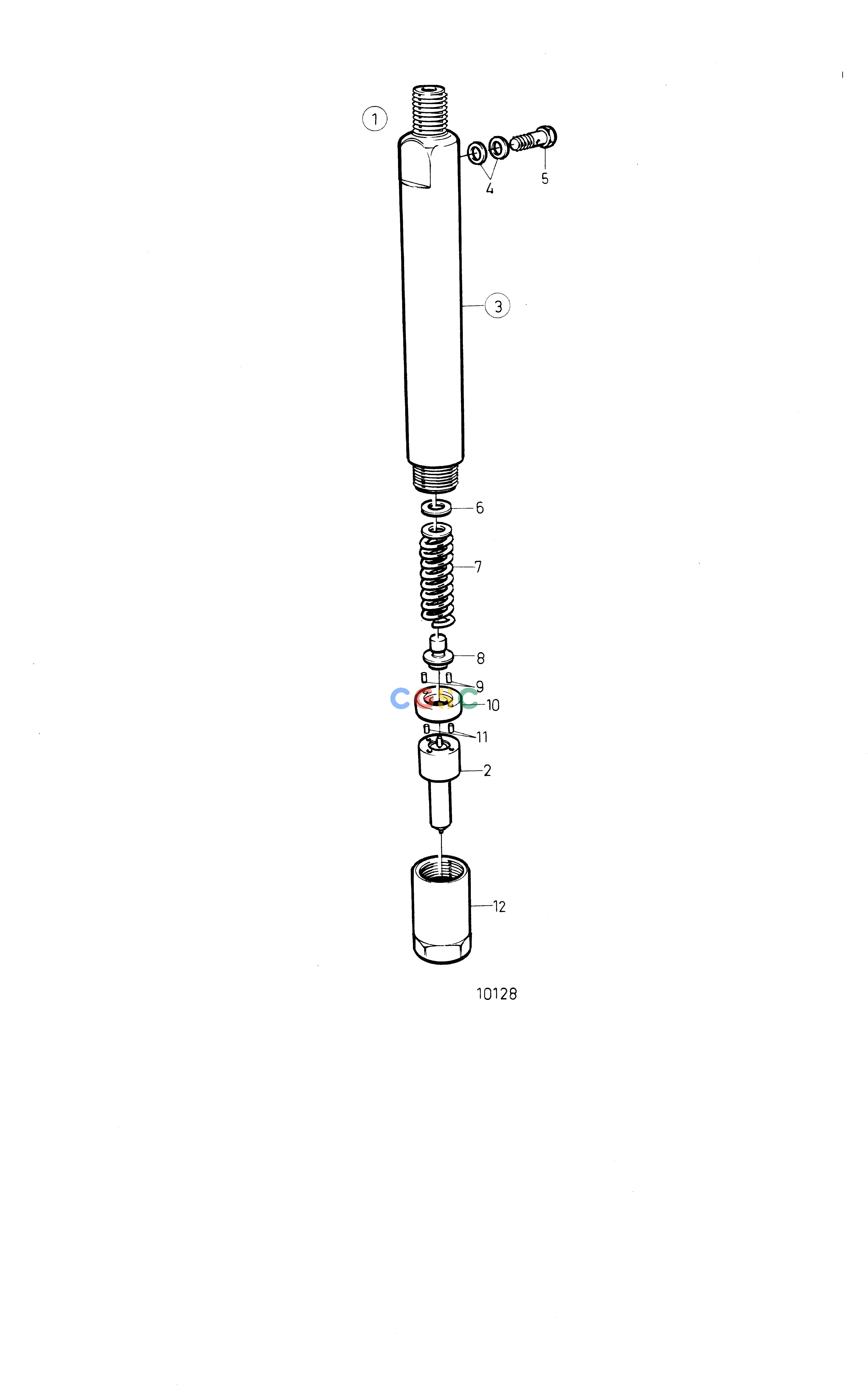

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemFuel Injector, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864069
|
[1] |
Injector
|
|
| 1. |
3803256
|
[1] |
Injector
|
|
| 2. |
864439
|
[1] |
Nozzle
|
|
| 3. |
|
|
|
|
| 4. |
947620
|
[2] |
Gasket
|
|
| 5. |
74033
|
[1] |
Hollow screw
|
(966833)
|
| 6. |
3094406
|
[1] |
Adjusting washer
|
TH=1,00mm (244797)
|
| 6. |
244798
|
[1] |
Shim
|
TH=1,04mm
|
| 6. |
3094407
|
[1] |
Adjusting washer
|
TH=1,08mm (244788)
|
| 6. |
244804
|
[1] |
Shim
|
TH=1,12mm
|
| 6. |
3094408
|
[1] |
Adjusting washer
|
TH=1,16mm (244801)
|
| 6. |
3094469
|
[1] |
Adjusting washer
|
TH=1,20mm (244799)
|
| 6. |
3094470
|
[1] |
Adjusting washer
|
TH=1,24mm (244805)
|
| 6. |
244807
|
[1] |
Shim
|
TH=1,28mm
|
| 6. |
244789
|
[1] |
Shim
|
TH=1,32mm
|
| 6. |
3094471
|
[1] |
Adjusting washer
|
TH=1,36mm (244811)
|
| 6. |
3094472
|
[1] |
Adjusting washer
|
TH=1,40mm (244800)
|
| 6. |
244790
|
[1] |
Shim
|
TH=1,44mm
|
| 6. |
3094473
|
[1] |
Adjusting washer
|
TH=1,48mm (244802)
|
| 6. |
846954
|
[1] |
Adjusting washer
|
TH=1,54mm
|
| 6. |
3094474
|
[1] |
Adjusting washer
|
TH=1,56mm (244792)
|
| 6. |
846970
|
[1] |
Adjusting washer
|
TH=1,62mm
|
| 6. |
3094476
|
[1] |
Adjusting washer
|
TH=1,64mm (244806)
|
| 6. |
244803
|
[1] |
Shim
|
TH=1,68mm
|
| 6. |
846957
|
[1] |
Adjusting washer
|
TH=1,74mm
|
| 6. |
244812
|
[1] |
Shim
|
TH=1,76mm
|
| 6. |
844328
|
[1] |
Adjusting washer
|
TH=1,80mm
|
| 6. |
846958
|
[1] |
Adjusting washer
|
TH=1,84mm
|
| 6. |
244813
|
[1] |
Adjusting washer
|
TH=1,88mm
|
| 6. |
3094478
|
[1] |
Adjusting washer
|
TH=1,92mm (244795)
|
| 6. |
3094467
|
[1] |
Adjusting washer
|
TH=1,96mm (244796)
|
| 7. |
244820
|
[1] |
Compression spring
|
|
| 8. |
3094597
|
[1] |
Clamping bolt
|
(1699532)
|
| 9. |
844339
|
[2] |
Locating pin
|
|
| 10. |
1698513
|
[1] |
Washer
|
|
| 11. |
244447
|
[2] |
Pin
|
|
| 12. |
3092030
|
[1] |
Fitting nut
|
(244448)
|
