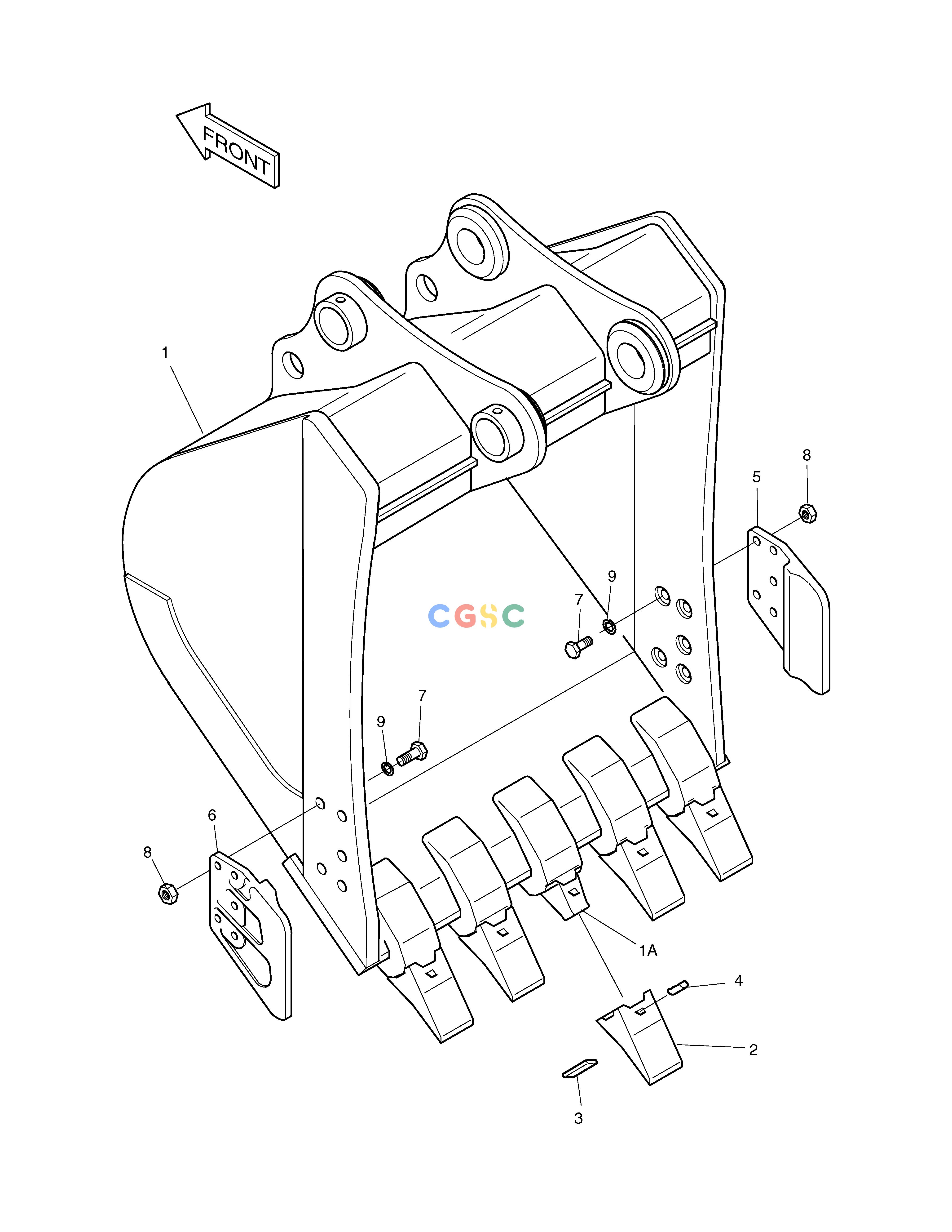

斗山零件查询BUCKET-0.80㎥-VERTICAL PIN(YUDAI) SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
704-00136
|
[1] |
BUCKET ASS'Y-0.80㎥(H.D)
|
|
| -. |
704-00136A
|
[1] |
BUCKET ASS'Y-0.80㎥(H.D)
|
704-00136B
|
| -. |
704-00136B
|
[1] |
BUCKET ASS'Y-0.80㎥(H.D)
|
|
| 1. |
NA03014
|
[1] |
|
|
| 1A. |
2713-6076
|
[5] |
ADAPTER;TOOTH
|
|
| 1A. |
2713-6088
|
[5] |
ADAPTER;TOOTH
|
713-00045
|
| 1A. |
713-00045
|
[5] |
ADAPTER;TOOTH
|
|
| 2. |
2713-9029
|
[5] |
POINT;TOOTH
|
713-00044
|
| 2. |
713-00044
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-6032
|
[5] |
PIN;LOCKING
|
|
| 4. |
2705-6033
|
[5] |
PIN;RUBBER
|
|
| 5. |
2713-1059A
|
[1] |
. CUTTER;SIDE(R.H)
|
|
| 6. |
2713-1060A
|
[1] |
. CUTTER;SIDE(L.H)
|
|
| 7. |
S0574761
|
[10] |
BOLT M24X3.0X70
|
|
| 8. |
S4013333
|
[10] |
. NUT
|
|
| 9. |
2114-1831
|
[10] |
WASHER;HARDEN
|
|
