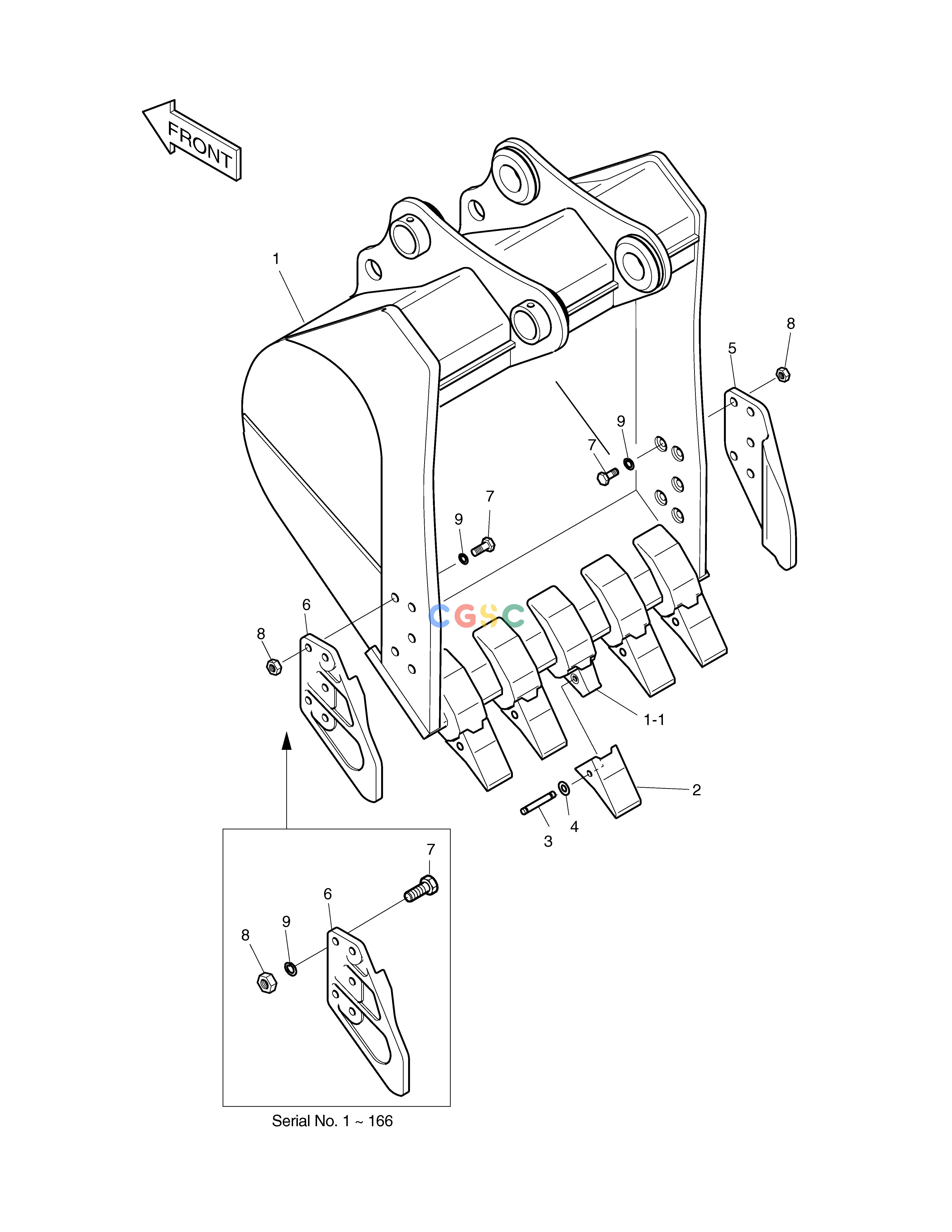

斗山零件查询BUCKET-0.8㎥ H.D TYPE SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2704-1570
|
[1] |
BUCKET ASS'Y-0.8㎥ H.D TYPE
|
|
| -. |
2704-1570A
|
[1] |
BUCKET ASS'Y-0.8㎥ H.D TYPE
|
|
| 1. |
NA03022
|
[1] |
|
|
| 1-1. |
2713-1218
|
[5] |
ADAPTER;TOOTH
|
|
| 2. |
2713-1217
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-1020
|
[5] |
. PIN,LOCKING
|
|
| 4. |
2114-1848A
|
[5] |
. WASHER,LOCKING
|
|
| 5. |
2713-1059
|
[1] |
CUTTER;SIDE(R)
|
|
| 6. |
2713-1060
|
[1] |
CUTTER;SIDE(L)
|
|
| 7. |
S0570361
|
[10] |
BOLT M20X2.5X75
|
|
| 8. |
S4013133
|
[10] |
NUT
|
|
| 9. |
S5103101
|
[10] |
WASHER;SPRING M20
|
|
| 9. |
2114-9012
|
[10] |
WASHER;HARDEN
|
|
