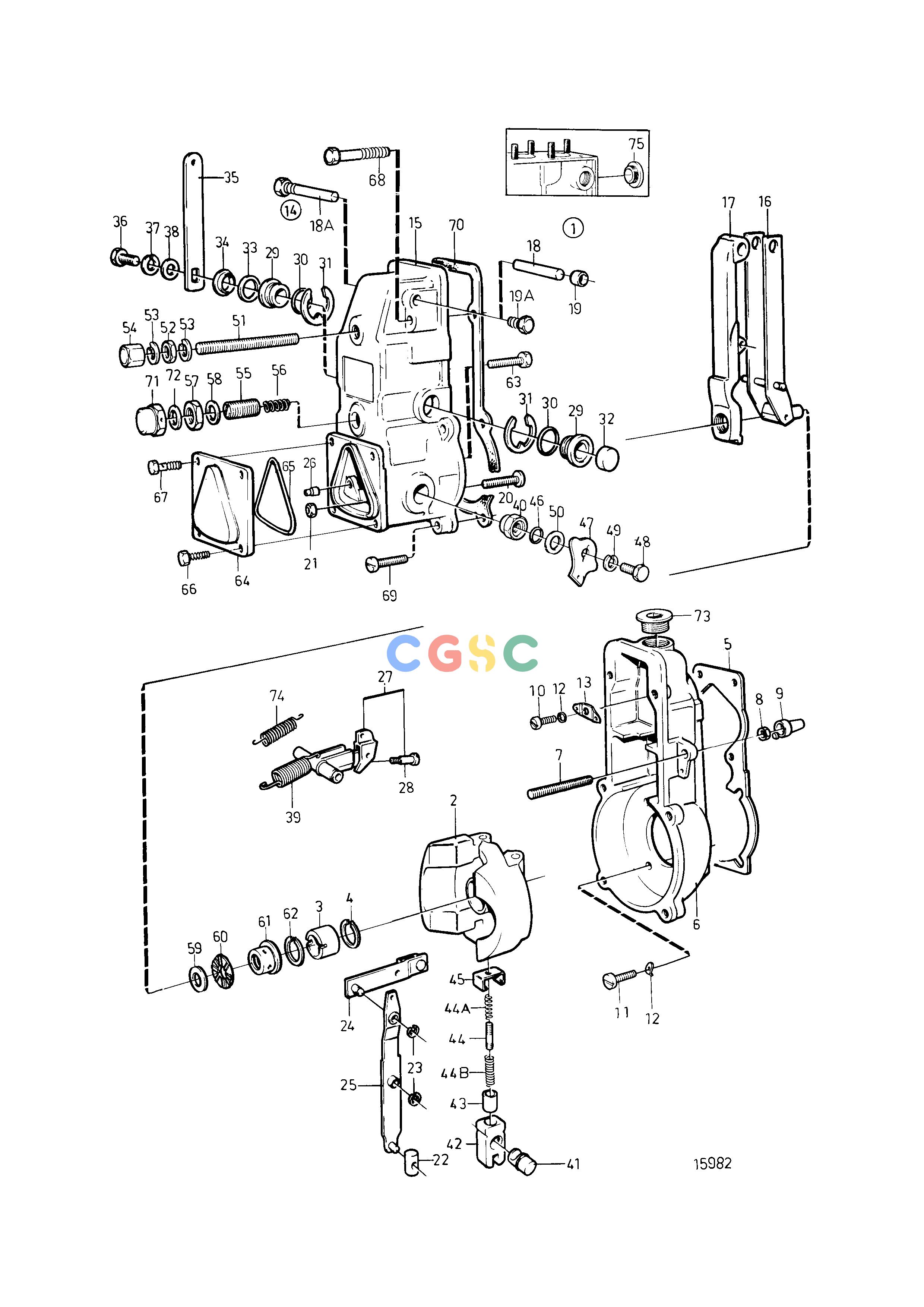

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemRegulatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864751
|
[1] |
Governor
|
|
| 2. |
848220
|
[1] |
Regulator weight
|
|
| 3. |
238994
|
[1] |
Round nut
|
|
| 4. |
238995
|
[1] |
Spring washer
|
|
| 5. |
1698168
|
[1] |
Gasket
|
|
| 6. |
870907
|
[1] |
Regulator housing
|
|
| 7. |
243451
|
[1] |
Adjusting screw
|
|
| 8. |
940197
|
[1] |
Hexagon nut
|
|
| 9. |
|
|
|
|
| 10. |
969423
|
[4] |
Six point socket scr
|
L=25mm (956097)
|
| 11. |
956095
|
[4] |
Cross recessed screw
|
L=20mm
|
| 12. |
949607
|
[8] |
Spring washer
|
|
| 13. |
870908
|
[1] |
Bracket
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
Early type
|
| 15. |
862802
|
[1] |
Regulator cover
|
Only for screw 862807 and lock screw 862807., Late type
|
| 16. |
848760
|
[1] |
Arm
|
|
| 17. |
848757
|
[1] |
Tensioning arm
|
|
| 18. |
239017
|
[1] |
Shaft
|
|
| 18A. |
862806
|
[1] |
Screw
|
Only for cover 862802.
|
| 19. |
240374
|
[2] |
Plug
|
|
| 19A. |
862807
|
[1] |
Lock screw
|
Only for cover 862802
|
| 20. |
239021
|
[1] |
Screw
|
|
| 21. |
940197
|
[1] |
Hexagon nut
|
|
| 22. |
240376
|
[1] |
Cube
|
|
| 23. |
951667
|
[2] |
E-circlip
|
(848218)
|
| 24. |
845008
|
[1] |
Lever
|
|
| 25. |
|
|
|
|
| 26. |
848756
|
[1] |
Nut
|
|
| 27. |
870887
|
[1] |
Swivel arm
|
|
| 28. |
|
|
|
|
| 29. |
240382
|
[2] |
Bearing bushing
|
|
| 30. |
864475
|
[2] |
O-ring
|
|
| 31. |
942796
|
[2] |
E-circlip
|
|
| 32. |
239037
|
[1] |
Cover
|
|
| 33. |
864476
|
[1] |
O-ring
|
|
| 34. |
240046
|
[1] |
Adjusting washer
|
TH=0,30mm
|
| 34. |
238132
|
[1] |
Washer
|
TH=1,00mm
|
| 35. |
239039
|
[1] |
Arm
|
|
| 36. |
955271
|
[1] |
Hexagon screw
|
|
| 37. |
949607
|
[2] |
Spring washer
|
|
| 38. |
955892
|
[1] |
Washer
|
|
| 39. |
837737
|
[1] |
Spring
|
|
| 40. |
239048
|
[1] |
Bearing bushing
|
|
| 41. |
239049
|
[1] |
Shaft
|
|
| 42. |
6213511
|
[1] |
Link arm end
|
|
| 43. |
239051
|
[1] |
Sleeve
|
|
| 44. |
240387
|
[1] |
Spring
|
|
| 44A. |
240386
|
[1] |
Spring
|
|
| 44B. |
240388
|
[1] |
Spring
|
|
| 45. |
|
|
|
|
| 46. |
862814
|
[1] |
O-ring
|
|
| 47. |
870912
|
[1] |
Lever
|
|
| 48. |
955271
|
[1] |
Hexagon screw
|
|
| 49. |
949607
|
[1] |
Spring washer
|
|
| 50. |
243513
|
[1] |
Adjusting washer
|
TH=0,60mm
|
| 51. |
848217
|
[1] |
Stud
|
|
| 52. |
864108
|
[1] |
Nut
|
|
| 53. |
190990
|
[2] |
Gasket
|
|
| 54. |
862272
|
[1] |
Cap nut
|
|
| 55. |
864753
|
[1] |
Spring
|
|
| 56. |
864468
|
[1] |
Damping spring
|
|
| 57. |
239046
|
[1] |
Nut
|
|
| 58. |
18839
|
[1] |
Gasket
|
|
| 59. |
848762
|
[1] |
Washer
|
|
| 60. |
848761
|
[1] |
Needle bearing
|
|
| 61. |
848763
|
[1] |
Bushing
|
|
| 62. |
239164
|
[1] |
Clamping ring
|
|
| 63. |
848755
|
[1] |
Adjusting screw
|
|
| 64. |
848741
|
[1] |
Cap
|
|
| 65. |
848740
|
[1] |
Sealing ring
|
|
| 66. |
845229
|
[2] |
Screw
|
|
| 67. |
955268
|
[2] |
Hexagon screw
|
For lead-seal.
|
| 68. |
956100
|
[2] |
Cross recessed screw
|
L=40mm
|
| 69. |
241990
|
[4] |
Screw
|
L=25mm
|
| 70. |
11992560
|
[1] |
Gasket
|
|
| 71. |
870637
|
[1] |
Nut
|
|
| 72. |
18839
|
[1] |
Gasket
|
|
| 73. |
240919
|
[1] |
Plug
|
|
| 74. |
845009
|
[4] |
Spring
|
|
| 75. |
240016
|
[4] |
Lock screw
|
|
