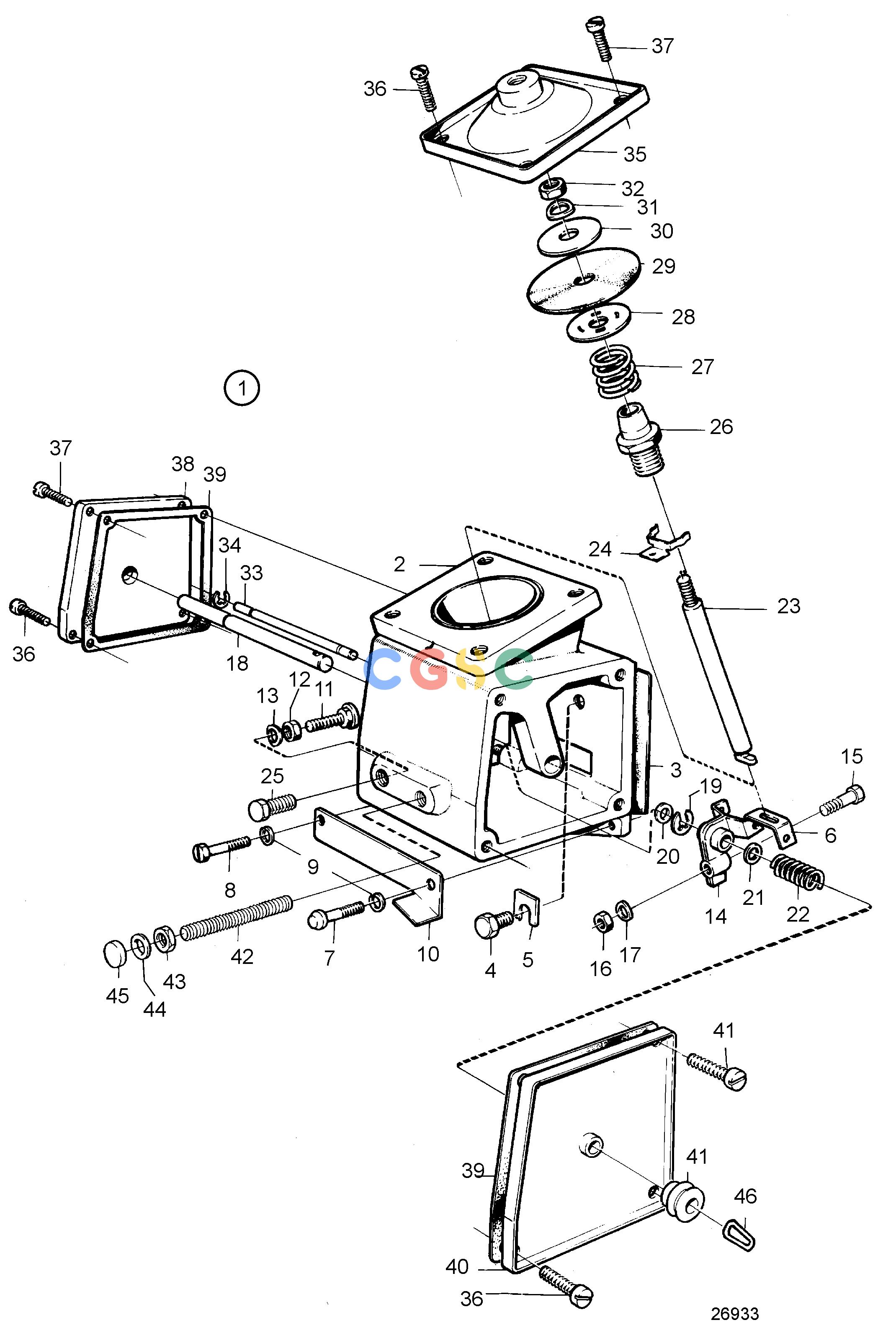

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AFuel SystemSmoke Limiter: 862266EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
862266
|
[1] |
Smoke limiter
|
|
| 2. |
|
|
|
|
| 3. |
1698172
|
[1] |
Gasket
|
|
| 4. |
955295
|
[1] |
Hexagon screw
|
|
| 5. |
241794
|
[1] |
Washer
|
|
| 6. |
241780
|
[1] |
Brace
|
|
| 7. |
244741
|
[1] |
Screw
|
|
| 8. |
6638096
|
[1] |
Screw
|
|
| 9. |
941906
|
[2] |
Spring washer
|
|
| 10. |
241648
|
[1] |
Indicator
|
|
| 11. |
241781
|
[1] |
Screw
|
|
| 12. |
940197
|
[1] |
Hexagon nut
|
|
| 13. |
240769
|
[1] |
Spring washer
|
|
| 14. |
241782
|
[1] |
Lever
|
|
| 15. |
243827
|
[1] |
Screw
|
|
| 16. |
940197
|
[1] |
Hexagon nut
|
|
| 17. |
240769
|
[1] |
Spring washer
|
|
| 18. |
241783
|
[1] |
Shaft
|
|
| 19. |
951669
|
[1] |
E-circlip
|
(848752)
|
| 20. |
955894
|
[1] |
Washer
|
|
| 21. |
233816
|
[1] |
Washer
|
|
| 22. |
241787
|
[1] |
Spring
|
|
| 23. |
241771
|
[1] |
Stud
|
|
| 24. |
837741
|
[1] |
Spring
|
|
| 25. |
243074
|
[1] |
Stud
|
|
| 26. |
244740
|
[1] |
Bushing
|
|
| 27. |
862332
|
[1] |
Compression spring
|
|
| 28. |
241776
|
[1] |
Washer
|
|
| 29. |
241775
|
[1] |
Diaphragm
|
|
| 30. |
241776
|
[1] |
Washer
|
|
| 31. |
240769
|
[1] |
Spring washer
|
|
| 32. |
940197
|
[1] |
Hexagon nut
|
|
| 33. |
241788
|
[1] |
Pin
|
|
| 34. |
951667
|
[2] |
E-circlip
|
(848218)
|
| 35. |
243270
|
[1] |
Cover
|
|
| 36. |
847452
|
[6] |
Screw
|
|
| 37. |
241779
|
[6] |
Screw
|
|
| 38. |
241789
|
[1] |
Cover
|
|
| 39. |
1698171
|
[2] |
Gasket
|
|
| 40. |
241791
|
[1] |
Cover
|
|
| 41. |
241792
|
[1] |
Rubber bellows
|
|
| 42. |
862333
|
[1] |
Stud
|
|
| 43. |
240769
|
[1] |
Spring washer
|
|
| 44. |
940197
|
[1] |
Hexagon nut
|
|
| 45. |
244387
|
[1] |
Cap
|
|
| 46. |
422525
|
[1] |
Attaching lug
|
|
