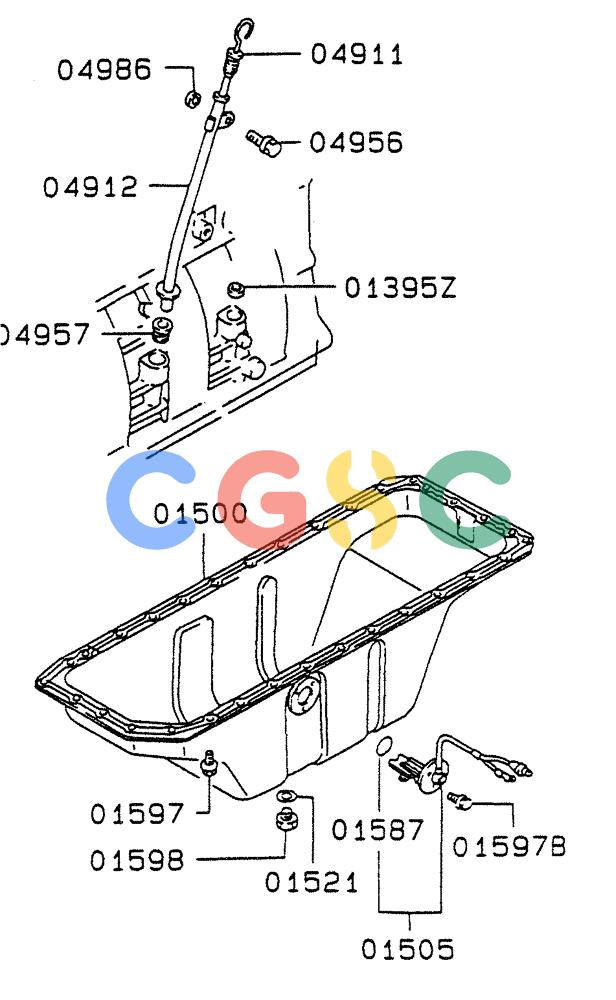

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (08-009) - OIL PAN, FILLER & GAUGE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
349 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01395Z. | VAMF665535 | [1] | CAP | KOBCAP, CYLINDER BLOCK SEALING, D=18, 9507-1- |
| 01500. | VAME088569 | [1] | ENGINE OIL PAN | KOB(Refer to SM - Liquid Gasket Used Between Pan & Block) BIG, 9507-1- |
| 01521. | VAMH035018 | [1] | GASKET | KOBGASKET, ENG OIL PAN DRAIN PLUG, 18, 9507-1- |
| 01587. | VAMC840593 | [1] | O-RING | KOBO-RING, ENG OIL PAN, 9507-1- |
| 01597. | VAMF140224 | [32] | BOLT | KOBBOLT, ENG OIL PAN FLANGE, 8X18, 9507-1- |
| 01598. | VAMH037126 | [1] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG, ENG OIL PAN SCREW, 18, 9507-1- |
| 04911. | VAME004139 | [1] | LEVEL GAUGE | KOBGAUGE, ENG OIL LEVEL, 9507-1- |
| 04912. | VAME088822 | [1] | GUIDE | KOBGUIDE, ENG OIL LEVEL GAUGE, 9507-1- |
| 04956. | VAMF140229 | [1] | BOLT | KOBBOLT, ENG OIL FILLER FLANGE, 8X30, 9507-1- |
| 04957. | VAME074151 | [1] | BUSHING | KOBBUSHING, ENG OIL FILLER, 9507-1- |
