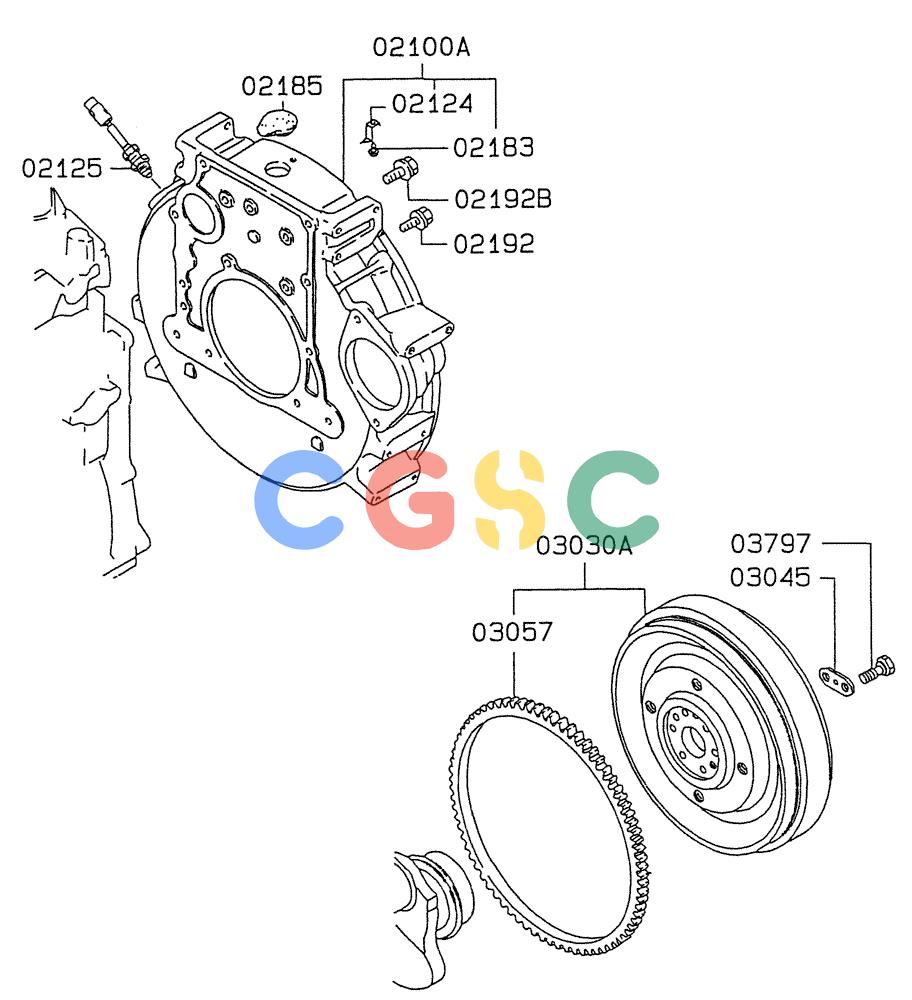

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (08-010) - FLYWHEEL & HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
869 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02100A. | VAME088584 | [1] | FLYWHEEL | KOBHOUSING ASSY, FLYWHEEL, (0210-1) |
| 2124. | VAME031062 | [1] | POINTER | KOBPOINTER, FLYWHEEL HOUSING ENG TIMING, (0210-1) |
| 2125. | VAMC849577 | [1] | SENSOR | KOBSENSOR, FLYWHEEL HOUSING ENG SPEED, (0210-1) |
| 2183. | VAMF200049 | [1] | SCREW | KOBSCREW, FLYWHEEL HOUSING, MACHINE, 5X8, (0210-1) |
| 2185. | VAME020359 | [1] | PLUG | KOBPLUG, FLYWHEEL HOUSING, RUBBER, 29, (0210-1) Superseded by part number: VAME609555 |
| 2192. | VAMS146307 | [12] | BOLT | KOBBOLT, FLYWHEEL HOUSING, FLANGE, 10X28, (0210-1) |
| 02192B. | VAMS146354 | [2] | BOLT | KOBBOLT, FLYWHEEL HOUSING, FLANGE, 12X35, (0210-1) |
| 3045. | VAME012553 | [3] | PLATE | KOBPLATE, FLYWHEEL BOLT LOCK, (0210-1) |
| 3057. | VAME072527 | [1] | RING GEAR | KOBRING GEAR, FLYWHEEL, M=129, (0210-1) |
| 3797. | VAMH000634 | [6] | BOLT | KOBBOLT, FLYWHEEL,14X40, (0210-1) |
