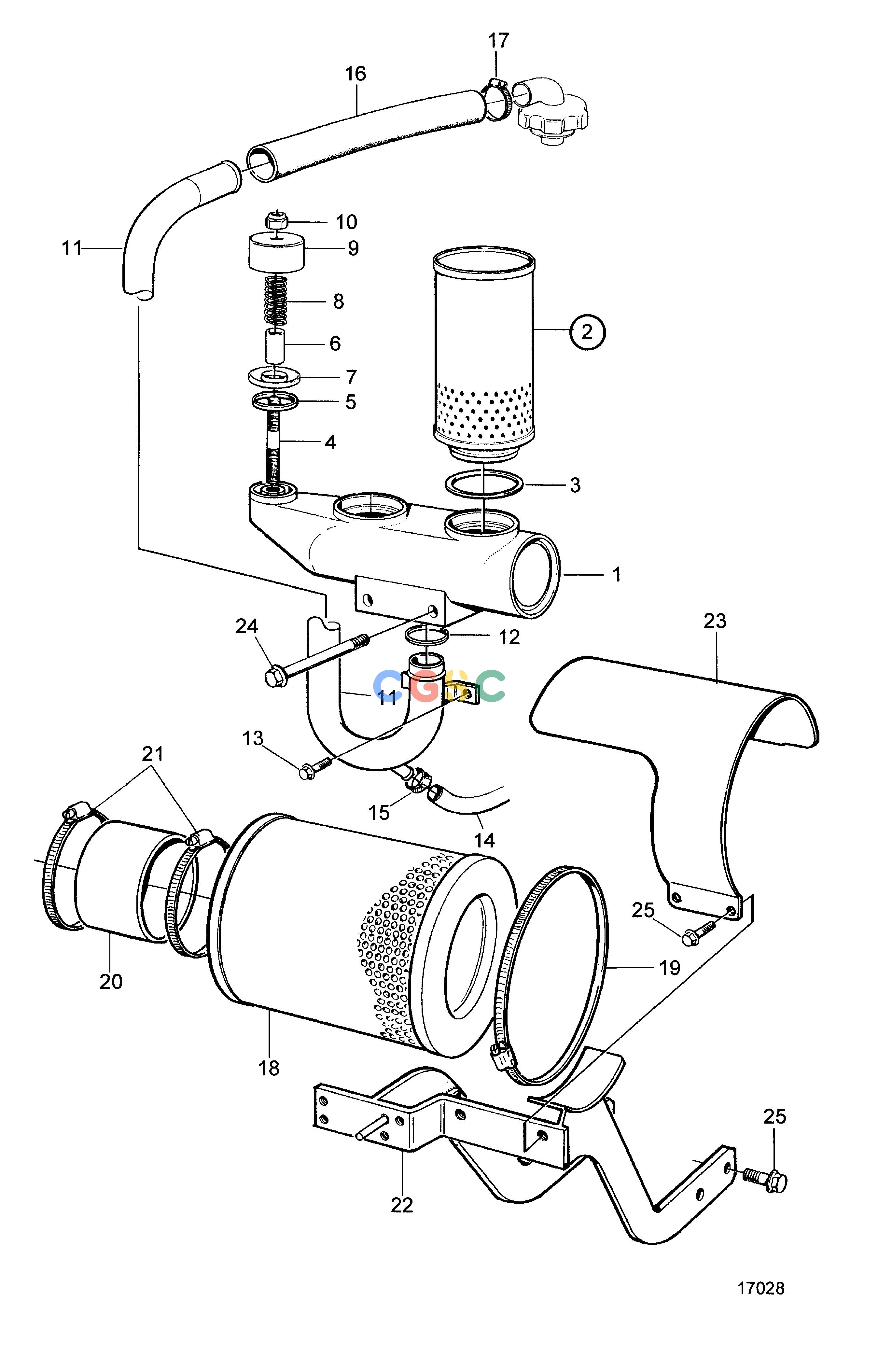

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemCrankhouse Ventilation and Air Filter: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
528 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3826199
|
[1] |
Connector housing
|
|
| 2. |
876069
|
[2] |
Filter
|
|
| 3. |
843449
|
[2] |
Gasket
|
|
| 4. |
924058
|
[1] |
Stud
|
|
| 5. |
421158
|
[1] |
Sealing ring
|
|
| 6. |
842974
|
[1] |
Spacer sleeve
|
|
| 7. |
842972
|
[1] |
Valve disc
|
|
| 8. |
843301
|
[1] |
Spring
|
|
| 9. |
842975
|
[1] |
Protecting casing
|
|
| 10. |
963105
|
[1] |
Lock nut
|
|
| 11. |
3826460
|
[1] |
Breather pipe
|
|
| 12. |
421158
|
[1] |
Sealing ring
|
|
| 13. |
946173
|
[1] |
Flange screw
|
|
| 14. |
943707
|
[1] |
Hose
|
L=850mm
|
| 15. |
945754
|
[1] |
Hose clamp
|
|
| 16. |
942707
|
[1] |
Hose
|
L=430mm
|
| 17. |
961669
|
[2] |
Hose clamp
|
|
| 18. |
3827167
|
[1] |
Air filter
|
|
| 19. |
942921
|
[1] |
Hose clamp
|
|
| 20. |
843409
|
[1] |
Rubber fitting
|
|
| 21. |
943484
|
[1] |
Hose clamp
|
I.D=138mm
|
| 21. |
853012
|
[1] |
Hose clamp
|
I.D=112mm
|
| 22. |
3826394
|
[1] |
Bracket
|
|
| 23. |
3827130
|
[1] |
Rain cap
|
|
| 24. |
965180
|
[2] |
Flange screw
|
Alt
|
| 25. |
946441
|
[6] |
Flange screw
|
|
