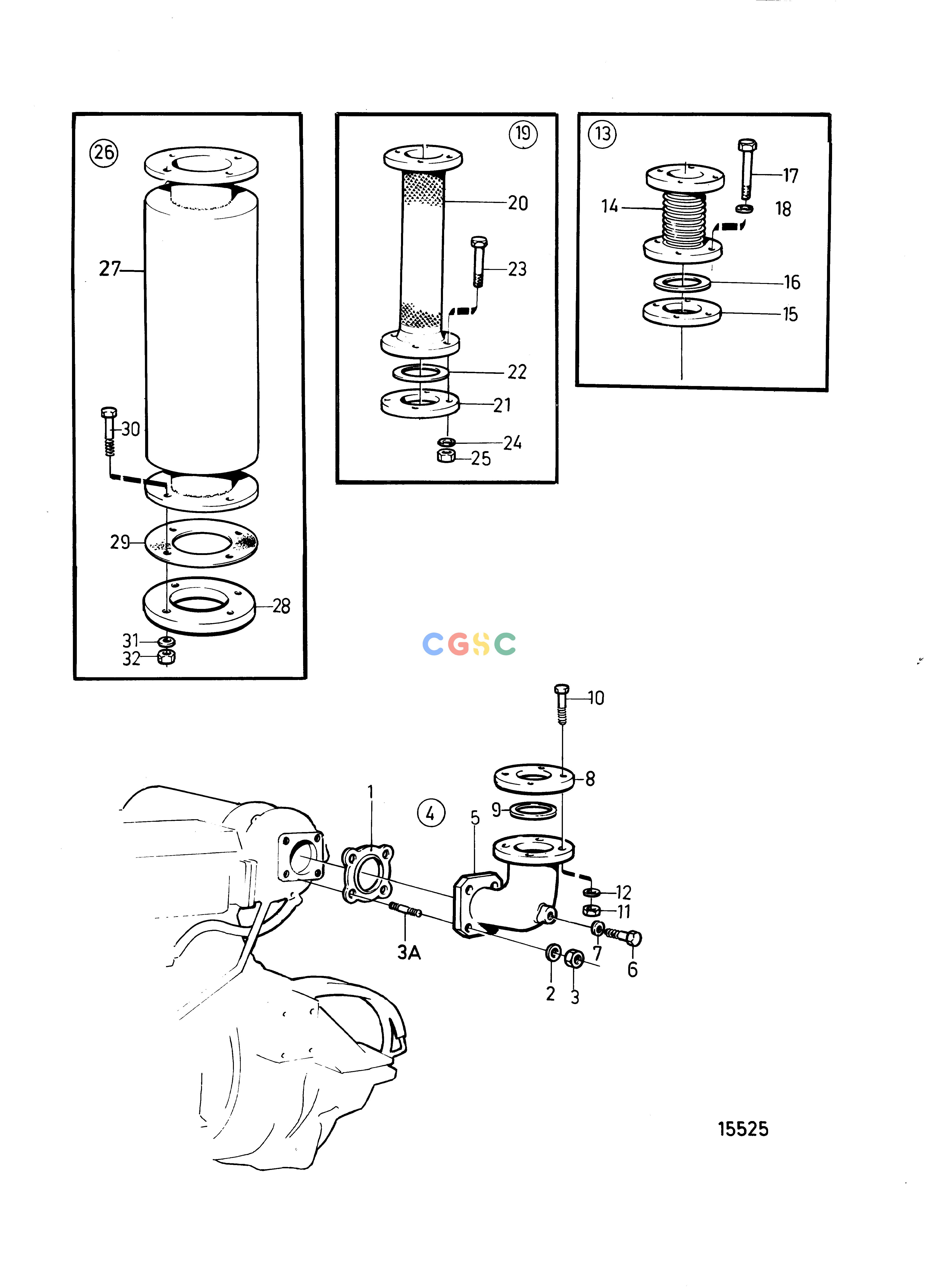

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemDry Exhaust Line 4''(102mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
424630
|
[1] |
Gasket
|
|
| 2. |
941908
|
[4] |
Spring washer
|
|
| 3. |
940183
|
[4] |
Hexagon nut
|
|
| 3A. |
479972
|
[4] |
Stud
|
|
| 4. |
|
|
|
|
| 5. |
836057
|
[1] |
Exhaust pipe elbow
|
|
| 6. |
914392
|
[2] |
Plug
|
|
| 7. |
947626
|
[2] |
Gasket
|
|
| 8. |
807625
|
[1] |
Flange
|
|
| 9. |
862594
|
[2] |
Gasket
|
|
| 10. |
955366
|
[4] |
Hexagon screw
|
(955592)
|
| 11. |
955785
|
[4] |
Hexagon nut
|
(955829)
|
| 12. |
941912
|
[4] |
Spring washer
|
|
| 13. |
|
|
|
|
| 14. |
843088
|
[1] |
Compensator
|
|
| 15. |
820905
|
[2] |
Flange
|
|
| 16. |
862594
|
[2] |
Gasket
|
|
| 17. |
955365
|
[8] |
Hexagon screw
|
|
| 18. |
941912
|
[8] |
Spring washer
|
|
| 19. |
|
|
|
|
| 20. |
820900
|
[1] |
Exhaust hose
|
|
| 21. |
820915
|
[2] |
Flange
|
|
| 22. |
862594
|
[2] |
Gasket
|
|
| 23. |
955366
|
[8] |
Hexagon screw
|
(955592)
|
| 24. |
941912
|
[8] |
Spring washer
|
|
| 25. |
955785
|
[8] |
Hexagon nut
|
(955829)
|
| 26. |
|
|
|
|
| 27. |
863047
|
[1] |
Silencer
|
(827021)
|
| 28. |
846415
|
[2] |
Weld flange
|
|
| 29. |
862978
|
[2] |
Gasket
|
|
| 30. |
955365
|
[8] |
Hexagon screw
|
|
| 31. |
941912
|
[8] |
Spring washer
|
|
| 32. |
955785
|
[8] |
Hexagon nut
|
|
