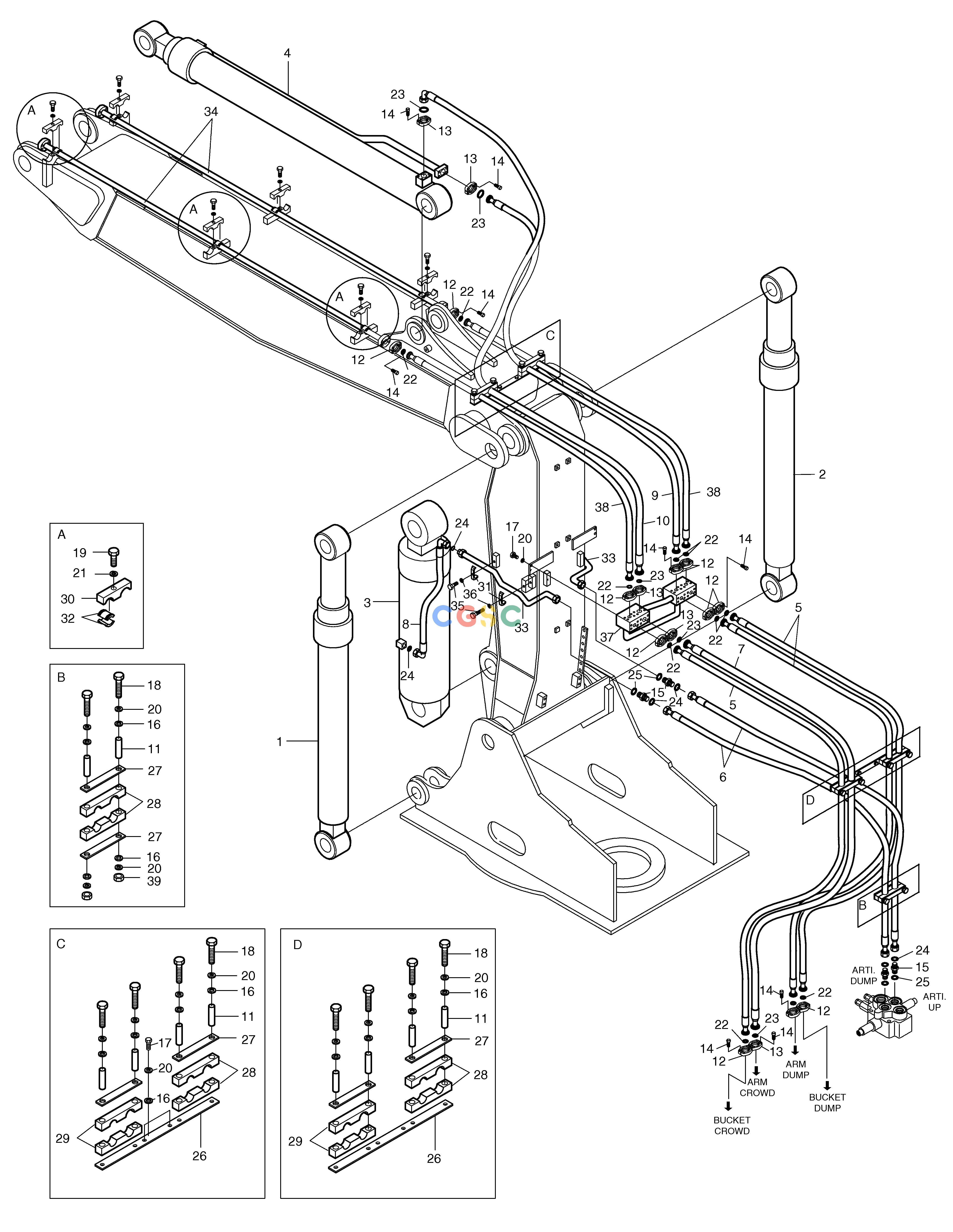

斗山零件查询FRONT PIPING-ARTI.BOOM SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00307
|
[-] |
FRONT PIPING
|
|
| 1. |
440-00094
|
[1] |
BOOM CYLINDER(L.H.)-ARTI.BOOM
|
|
| 1. |
440-00330
|
[1] |
BOOM CYLINDER(L.H.)-ARTI.BOOM
|
|
| 10. |
DS2040355
|
[1] |
HOSE 3/4"-2200L
|
|
| 10. |
2184-1100D233
|
[1] |
HOSE 1"-2150L
|
|
| 11. |
2182-1018D47
|
[10] |
PIPE
|
|
| 12. |
2181-9079
|
[22] |
FLANGE
|
|
| 13. |
2181-9078
|
[10] |
FLANGE;SPLIT
|
|
| 14. |
S2212266
|
[64] |
BOLT
|
|
| 14. |
S2212261
|
[64] |
SOCKET-HEAD BOLT
|
S2212266
|
| 15. |
2181-2627D1
|
[4] |
ADAPTER
|
|
| 16. |
S5010613
|
[14] |
WASHER
|
|
| 17. |
S0512153
|
[6] |
BOLT M10X1.5X28
|
|
| 18. |
S0559253
|
[10] |
BOLT M10X1.5X85
|
|
| 19. |
S0565461
|
[6] |
BOLT M16X2.0X60
|
S0565466
|
| 19. |
S0565466
|
[6] |
BOLT
|
|
| 2. |
440-00095
|
[1] |
BOOM CYLINDER(R.H.)-ARTI.BOOM
|
|
| 2. |
440-00331
|
[1] |
BOOM CYLINDER(R.H.)-ARTI.BOOM
|
|
| 20. |
S5102603
|
[18] |
. WASHER
|
|
| 21. |
S5102901
|
[6] |
. WASHER;SPRING
|
S5102903
|
| 21. |
S5102903
|
[6] |
WASHER
|
|
| 22. |
2180-1026D2
|
[11] |
O-RING
|
|
| 23. |
2180-1026D19
|
[5] |
O-RING
|
|
| 24. |
S8030121
|
[8] |
O-RING
|
|
| 25. |
S8000231
|
[4] |
O-RING
|
|
| 26. |
621-00443
|
[2] |
PLATE
|
|
| 27. |
2191-4689
|
[6] |
PLATE
|
|
| 28. |
124-00027
|
[6] |
CLAMP;RUBBER
|
|
| 29. |
124-00028
|
[4] |
CLAMP;RUBBER
|
|
| 3. |
440-00096
|
[1] |
ARTI. BOOM CYLINDER
|
|
| 3. |
440-00314
|
[1] |
ARTI. BOOM CYLINDER
|
|
| 30. |
124-00011
|
[6] |
CLAMP;PIPE
|
|
| 31. |
2124-1026D2
|
[6] |
CLAMP
|
|
| 32. |
2161-2250A
|
[12] |
RUBBER
|
|
| 33. |
140-00360A
|
[2] |
PIPE
|
|
| 34. |
140-00156
|
[2] |
PIPE;BUCKET
|
|
| 35. |
S0560853
|
[6] |
BOLT M12X1.75X55
|
|
| 36. |
S5102703
|
[6] |
WASHER
|
|
| 37. |
423-00065
|
[1] |
BLOCK
|
|
| 38. |
2184-1081D149
|
[2] |
HOSE 3/4"-2150L
|
|
| 38. |
DS2038137
|
[2] |
HOSE 3/4"-2200L
|
|
| 39. |
S4012633
|
[2] |
NUT
|
|
| 4. |
2440-9236B
|
[1] |
CYLINDER;ARM
|
|
| 5. |
2184-1081D156
|
[3] |
HOSE 3/4"-1950L
|
|
| 6. |
2184-1196D152
|
[2] |
HOSE 3/4"-1900L
|
|
| 7. |
2184-1081D157
|
[1] |
HOSE 1"-1950L
|
|
| 8. |
2184-1198D67
|
[2] |
HOSE 3/4"-520L
|
|
| 9. |
2184-1081D150
|
[1] |
HOSE 1"-3/4"-2150L
|
|
| 9. |
DS2038138
|
[1] |
HOSE 3/4"-2200L
|
|
