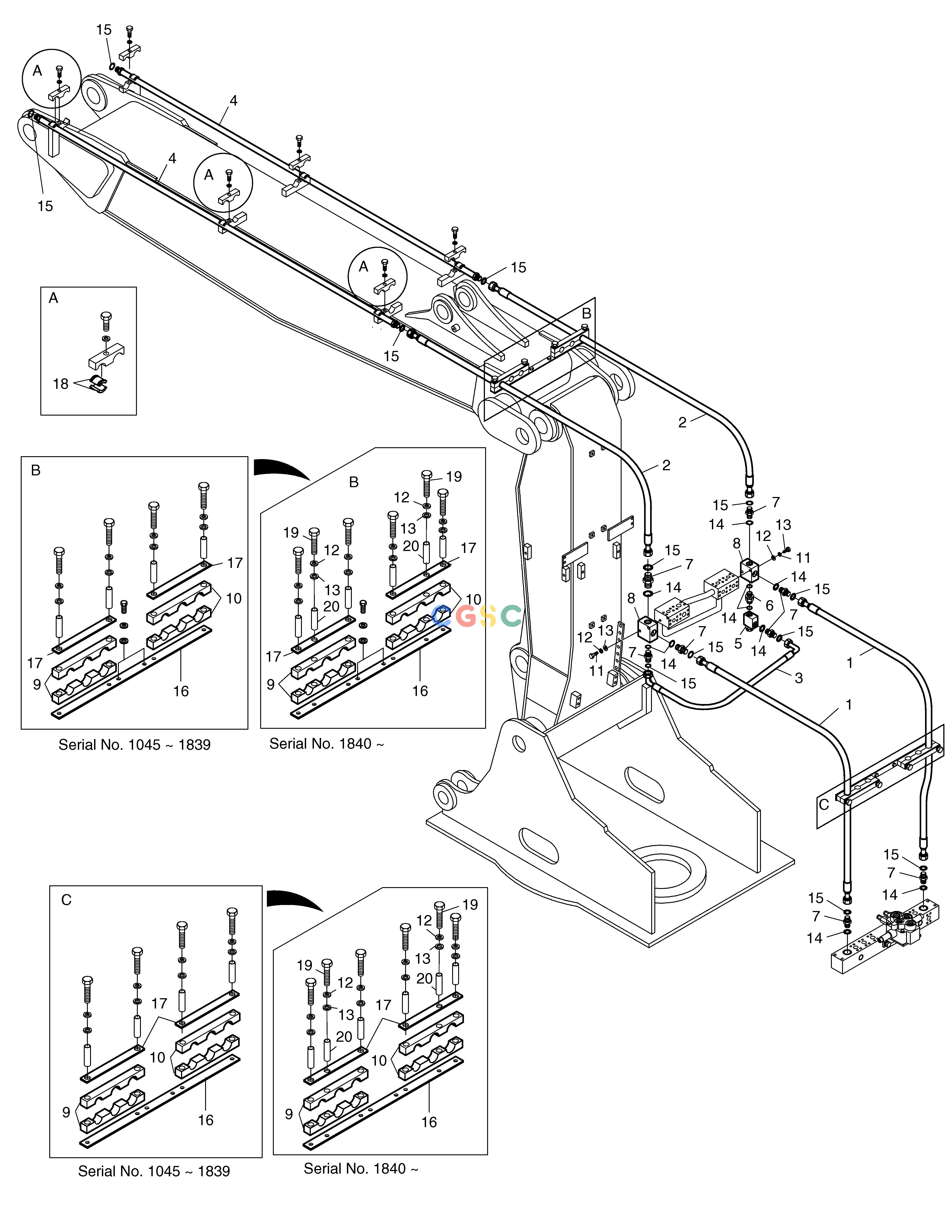

斗山零件查询FRONT PIPING-ONE & TWO WAY(ARTI.BOOM) SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00321
|
[-] |
FRONT PIPING
|
|
| 1. |
2184-1196D147
|
[2] |
HOSE PF1-1950L
|
|
| 10. |
124-00034
|
[4] |
CLAMP;RUBBER
|
|
| 10. |
124-00034A
|
[4] |
CLAMP;RUBBER
|
|
| 11. |
S0558953
|
[4] |
BOLT
|
|
| 12. |
S5102603
|
[4] |
. WASHER
|
|
| 12. |
S5102603
|
[8] |
. WASHER
|
|
| 13. |
S5010613
|
[4] |
WASHER
|
|
| 13. |
S5010613
|
[8] |
WASHER
|
|
| 14. |
S8000291
|
[10] |
O-RING
|
|
| 15. |
S8030161
|
[8] |
O-RING
|
|
| 16. |
621-00503
|
[2] |
PLATE
|
|
| 16. |
621-00503A
|
[2] |
PLATE
|
|
| 17. |
621-00504
|
[4] |
PLATE
|
|
| 17. |
621-00504A
|
[4] |
PLATE
|
|
| 18. |
2161-2251A
|
[12] |
RUBBER
|
|
| 19. |
S0559253
|
[4] |
BOLT M10X1.5X85
|
|
| 2. |
2184-1196D148
|
[2] |
HOSE PF1-2150L
|
|
| 20. |
2182-1018D47
|
[4] |
PIPE
|
|
| 3. |
2184-1198D68
|
[1] |
HOSE PF1-5800L
|
|
| 4. |
140-00199
|
[2] |
PIPE
|
|
| 5. |
2420-9627A
|
[1] |
VALVE;RELIEF
|
|
| 6. |
2181-2818
|
[1] |
ADAPTER
|
|
| 7. |
2181-4133D6
|
[8] |
ADAPTER
|
|
| 8. |
423-00066
|
[2] |
BLOCK
|
|
| 9. |
124-00033
|
[4] |
CLAMP;RUBBER
|
|
| 9. |
124-00033A
|
[4] |
CLAMP;RUBBER
|
|
