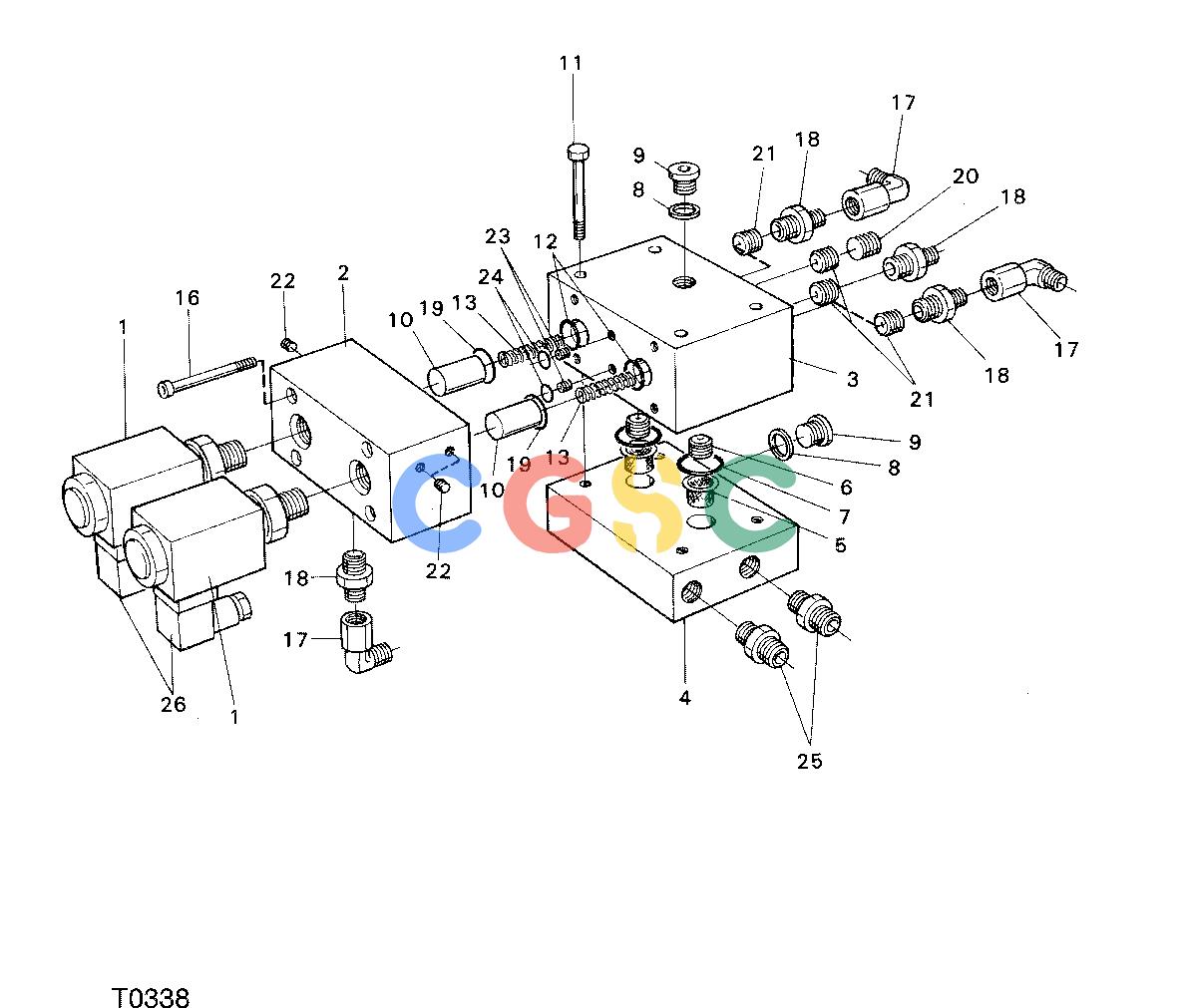

约翰迪尔零件查询746B ATT - ATTACHMENTS ENGINE PAINT MARKING DEVICE F042684 11 62 T0338 [T0338]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
485 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F013605
|
[2] |
Valve
|
|
| |
F036221
|
[2] |
MAGNET COIL
|
|
| |
F036222
|
[2] |
MAGNET COIL
|
|
| 2. |
F007399
|
[1] |
VALVE CASING
|
|
| 3. |
F007398
|
[1] |
Housing
|
|
| 4. |
F021303
|
[1] |
BLOCK
|
|
| 5. |
F008355
|
[2] |
Strainer
|
|
| 6. |
F018124
|
[2] |
Check Valve
|
|
| 7. |
F005637
|
[2] |
O-Ring
|
|
| 8. |
F005164
|
[2] |
SEAL RING
|
|
| 9. |
F003382
|
[2] |
Plug
|
|
| 10. |
F007400
|
[2] |
CONNECTION
|
|
| 11. |
F003471
|
[2] |
Screw
|
|
| 12. |
F011347
|
[2] |
O-Ring
|
|
| 13. |
F013603
|
[2] |
Spring
|
|
| 16. |
F020778
|
[4] |
Screw
|
|
| 17. |
F005044
|
[3] |
ELBOW NIPPLE
|
|
| 18. |
F005052
|
[4] |
NIPPLE
|
|
| 19. |
F004569
|
[2] |
O-Ring
|
|
| 20. |
F008315
|
[1] |
Plug
|
|
| 21. |
F008631
|
[4] |
Check Valve
|
|
| 22. |
F012574
|
[3] |
Plug
|
|
| 23. |
F017238
|
[2] |
THROTTLE SCREW
|
|
| 24. |
F017214
|
[2] |
O-Ring
|
|
| 25. |
F023015
|
[2] |
NIPPLE
|
|
| 26. |
F004578
|
[2] |
Connector
|
|
