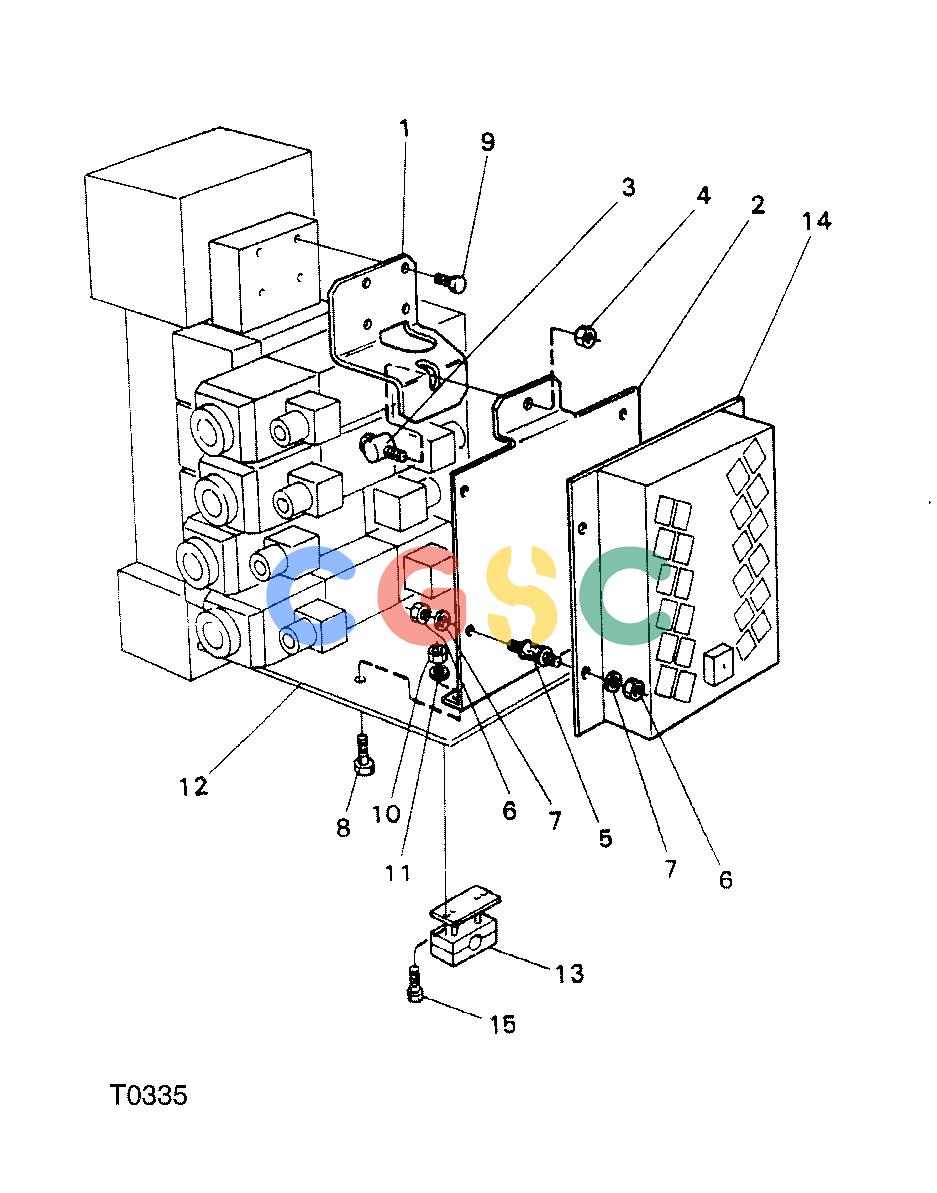

约翰迪尔零件查询746B ATT - ATTACHMENTS ENGINE ELECTRICAL BOX F042684 11 56 T0335 [T0335]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
467 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F027607
|
[1] |
Bracket
|
|
| 2. |
F023878
|
[1] |
Plate
|
|
| 3. |
F019260
|
[1] |
LOCKING SCREW
|
|
| 4. |
F014937
|
[1] |
Lock Nut
|
|
| 5. |
F027738
|
[4] |
DAMPER
|
|
| 6. |
F003562
|
[8] |
Nut
|
|
| 7. |
F003337
|
[8] |
Washer
|
|
| 8. |
F003524
|
[2] |
Screw
|
|
| 9. |
F016303
|
[4] |
Screw
|
|
| 10. |
F003563
|
[2] |
Nut
|
|
| 11. |
F003338
|
[4] |
Washer
|
|
| 12. |
F025698
|
[1] |
Cap
|
|
| 13. |
F028734
|
[1] |
PIPE CLIP HALF
|
|
| 14. |
F019787
|
[1] |
Box
|
|
| 15. |
F010828
|
[2] |
Screw
|
|
