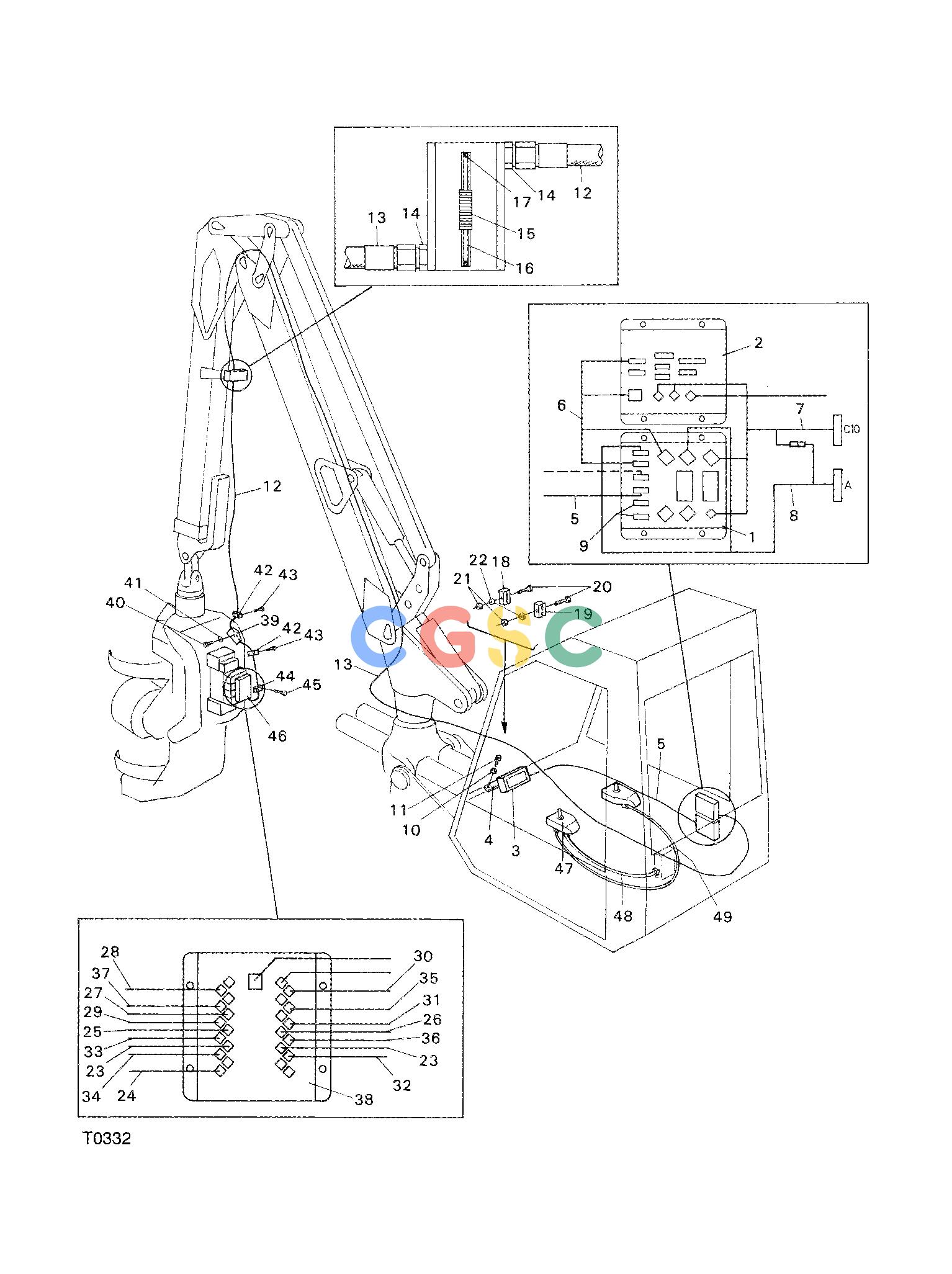

约翰迪尔零件查询746B ATT - ATTACHMENTS ENGINE ELECTRICAL SYSTEM F042684 11 50 T0332 [T0332]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
538 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F021455
|
[1] |
Box
|
|
| 2. |
F024456
|
[1] |
MCM
|
|
| 3. |
F024458
|
[1] |
DISPLAY
|
|
| 4. |
F024457
|
[1] |
DISPLAY
|
|
| 5. |
F021457
|
[1] |
Cable
|
|
| 6. |
F021458
|
[1] |
CABLE HARNESS
|
|
| 7. |
F021459
|
[1] |
CABLE HARNESS
|
|
| 8. |
F023827
|
[1] |
CABLE HARNESS
|
|
| 9. |
F024441
|
[2] |
Plug
|
|
| 10. |
F003338
|
[2] |
Washer
|
|
| 11. |
F003523
|
[2] |
Screw
|
|
| 12. |
F028532
|
[1] |
CABLE HARNESS
|
|
| 13. |
F028521
|
[1] |
CABLE HARNESS
|
|
| 14. |
F005095
|
[2] |
NIPPLE
|
|
| 15. |
F019247
|
[14] |
TERMINAL BLOCK
|
|
| 16. |
F013235
|
[1] |
Rail
|
|
| 17. |
F015580
|
[2] |
Screw
|
|
| 18. |
F030640
|
[2] |
HOLDER PAIR
|
|
| 19. |
F019082
|
[2] |
HOLDER PAIR
|
|
| 20. |
F003409
|
[2] |
Screw
|
|
| 21. |
F003562
|
[2] |
Nut
|
|
| 22. |
F003337
|
[4] |
Washer
|
|
| 23. |
F028553
|
[1] |
CABLE HARNESS
|
|
| 24. |
F028554
|
[1] |
CABLE HARNESS
|
|
| 25. |
F023834
|
[1] |
CABLE HARNESS
|
|
| 26. |
F023833
|
[1] |
CABLE HARNESS
|
|
| 27. |
F023832
|
[1] |
CABLE HARNESS
|
|
| 27. |
F041156
|
[1] |
CABLE HARNESS
|
|
| 28. |
F021460
|
[1] |
CABLE HARNESS
|
|
| 29. |
F021461
|
[1] |
CABLE HARNESS
|
|
| 30. |
F021462
|
[1] |
CABLE HARNESS
|
|
| 31. |
F021463
|
[1] |
CABLE HARNESS
|
|
| 32. |
F021464
|
[1] |
CABLE HARNESS
|
|
| 33. |
F021465
|
[1] |
CABLE HARNESS
|
|
