沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemTurbocharger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
384 次

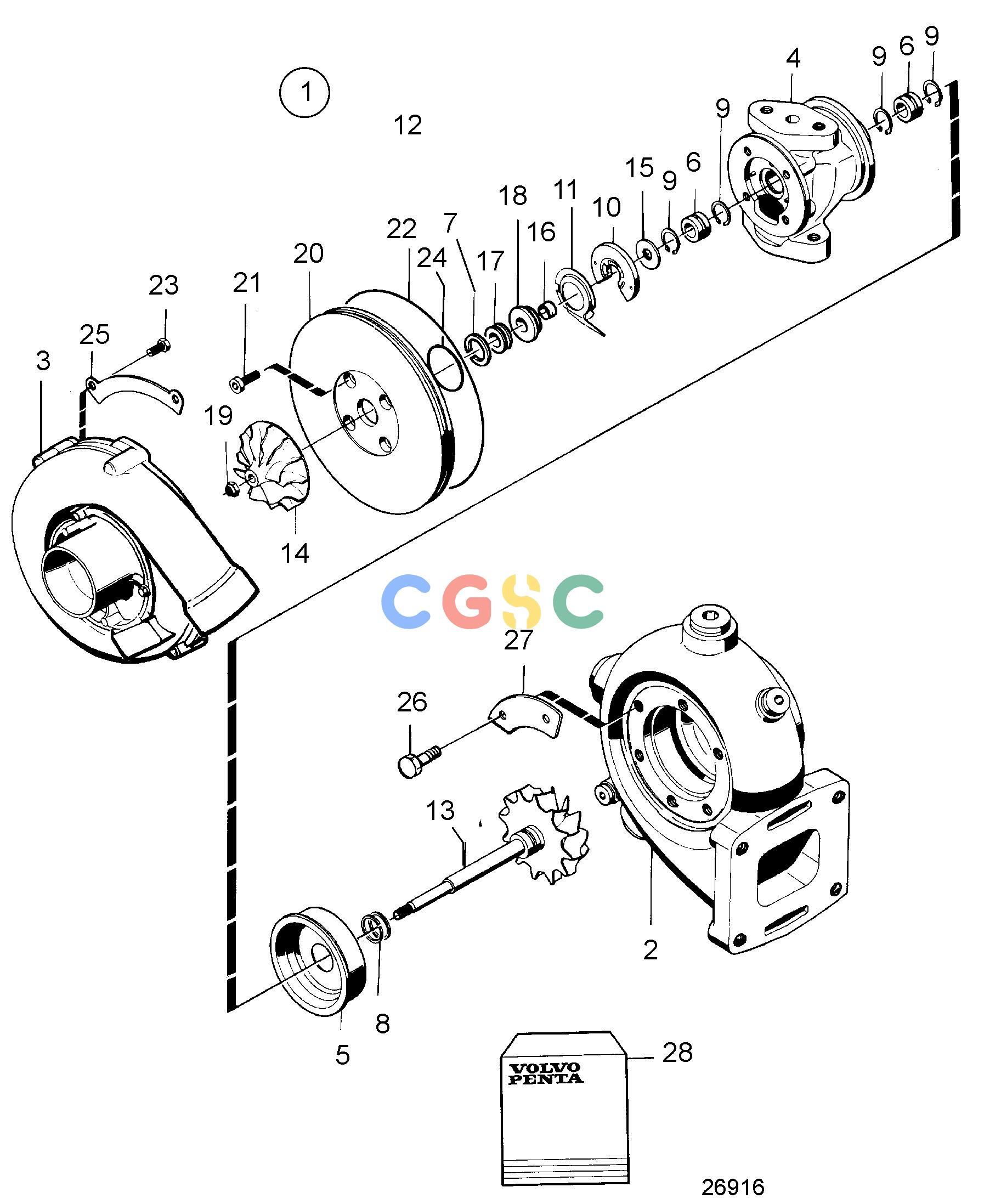

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3802062
|
[1] |
Turbocharger
|
(848276)
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
838563
|
[1] |
Shield
|
|
| 6. |
838562
|
[2] |
Bushing
|
Included in repair kit 3830711
|
| 7. |
|
|
|
Included in repair kit 3830711.
|
| 8. |
|
|
|
Included in repair kit 3830711.
|
| 9. |
845042
|
[4] |
Lock ring
|
Included in repair kit 3830711.
|
| 10. |
858710
|
[1] |
Axial bearing
|
Included in repair kit 3830711.
|
| 11. |
845047
|
[1] |
Oil deflector
|
Included in repair kit 3830711.
|
| 12. |
849587
|
[1] |
Rotor
|
Replaced by 1pc rotor 3827354, 1pc compressor wheel 3827363 and 1pc overhaul kit 3827366.
|
| 13. |
849588
|
[1] |
Rotor
|
|
| 14. |
849589
|
[1] |
Compressor wheel
|
|
| 15. |
844000
|
[1] |
Thrust ring
|
|
| 16. |
845050
|
[1] |
Sleeve
|
|
| 17. |
858674
|
[1] |
Bushing
|
|
| 18. |
858675
|
[1] |
Seal
|
|
| 19. |
848711
|
[1] |
Lock nut
|
Included in repair kit 3830711.
|
| 20. |
|
|
|
|
| 21. |
845829
|
[4] |
Screw
|
Included in repair kit 3830711.
|
| 22. |
847643
|
[1] |
O-ring
|
Included in repair kit 3830711.
|
| 23. |
955270
|
[8] |
Hexagon screw
|
Included in repair kit 3830711., (858661)
|
| 24. |
838426
|
[1] |
O-ring
|
Included in repair kit 3830711.
|
| 25. |
847646
|
[4] |
Segment
|
Included in repair kit 3830711.
|
| 26. |
955269
|
[6] |
Hexagon screw
|
Included in repair kit 3830711.
|
| 27. |
838578
|
[3] |
Segment
|
Included in repair kit 3830711.
|
| 28. |
849590
|
[1] |
Repair kit
|
See group 99
|
