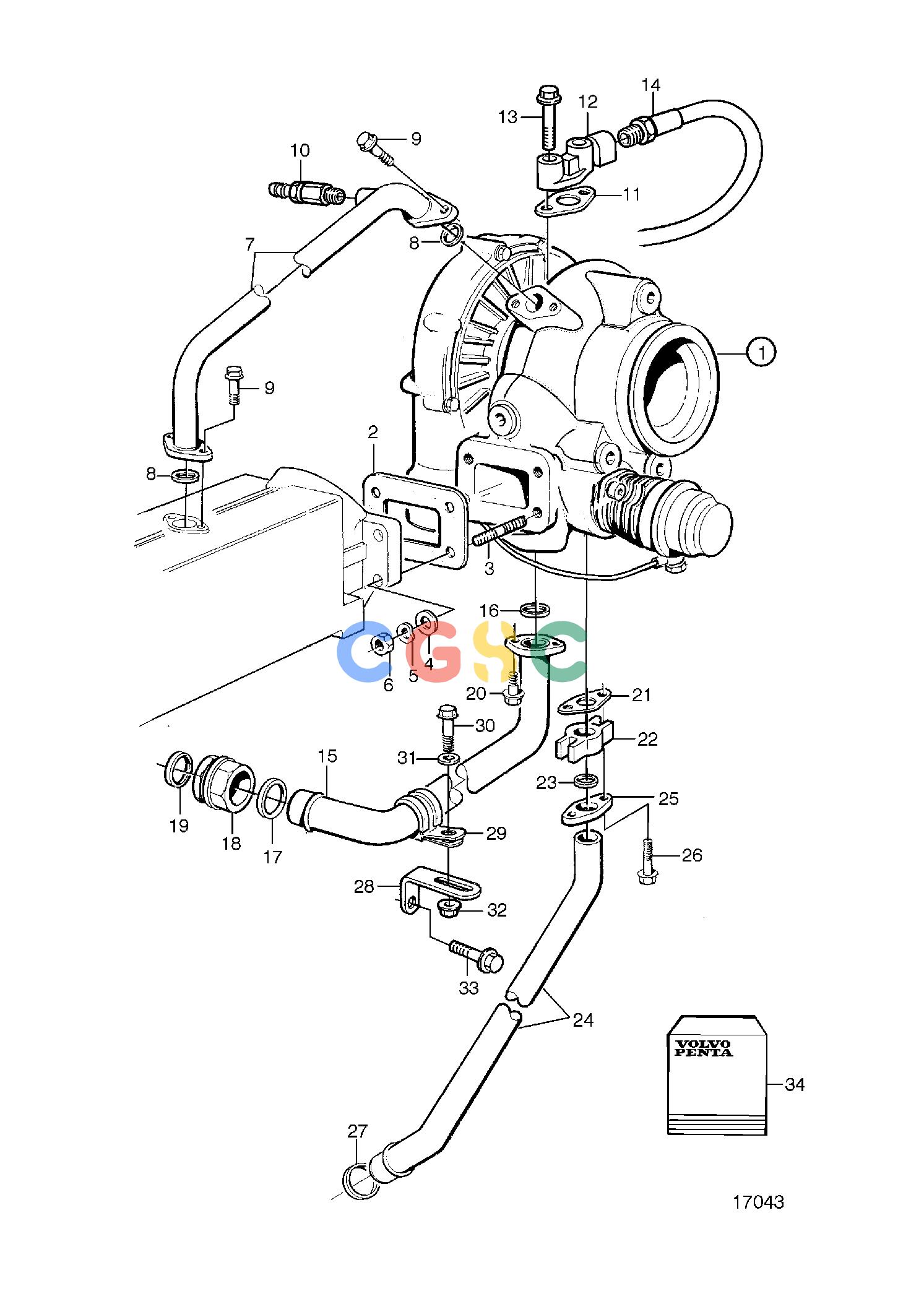

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-AIntake and Exhaust SystemTurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
764 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825414
|
[1] |
Turbocharger
|
Repl by 3826914
|
| 1. |
|
|
|
|
| 1. |
3826914
|
[1] |
Turbocharger
|
Repl by 3827914
|
| 1. |
3827914
|
[1] |
Turbocharger
|
Repl by 3828244
|
| 1. |
3802113
|
[1] |
Turbocharger
|
|
| 2. |
421324
|
[1] |
Gasket
|
Included in gasket kit.
|
| 3. |
479972
|
[4] |
Stud
|
|
| 4. |
955895
|
[4] |
Washer
|
|
| 5. |
942336
|
[4] |
Spring washer
|
|
| 6. |
940183
|
[4] |
Hexagon nut
|
|
| 7. |
866978
|
[1] |
Coolant pipe
|
|
| 8. |
831622
|
[2] |
Sealing ring
|
|
| 9. |
946544
|
[4] |
Flange screw
|
|
| 10. |
949918
|
[1] |
Shut-off cock
|
|
| 11. |
420641
|
[1] |
Plane gasket
|
Included in gasket kit.
|
| 12. |
8192268
|
[1] |
Flange
|
|
| 13. |
947760
|
[2] |
Flange screw
|
|
| 14. |
3830001
|
[1] |
Oil feed hose
|
Turbo-oil filter housing., (3826420)
|
| 15. |
848267
|
[1] |
Tube
|
|
| 16. |
831622
|
[1] |
Sealing ring
|
Included in gasket kit.
|
| 17. |
471626
|
[1] |
Rubber moulding
|
Included in gasket kit.
|
| 18. |
848565
|
[1] |
Nipple
|
|
| 19. |
469328
|
[1] |
Gasket
|
|
| 20. |
946544
|
[2] |
Flange screw
|
|
| 21. |
470993
|
[1] |
Gasket
|
Included in gasket kit.
|
| 22. |
8148729
|
[1] |
Connector
|
(469542)
|
| 23. |
469601
|
[1] |
Rubber moulding
|
Included in gasket kit.
|
| 24. |
847835
|
[1] |
Lubricating pipe
|
|
| 25. |
469543
|
[1] |
Pipe flange
|
|
| 26. |
947760
|
[2] |
Flange screw
|
|
| 27. |
471626
|
[1] |
Rubber moulding
|
Included in gasket kit.
|
| 28. |
866111
|
[1] |
Bracket
|
|
| 29. |
952632
|
[1] |
Clamp
|
|
| 30. |
946544
|
[1] |
Flange screw
|
|
| 31. |
955892
|
[1] |
Washer
|
|
| 32. |
949278
|
[1] |
Flange lock nut
|
|
| 33. |
946173
|
[1] |
Flange screw
|
|
| 34. |
|
|
|
See group 99
|
