斗山零件查询PILOT PIPING-EUROPE SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
579 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

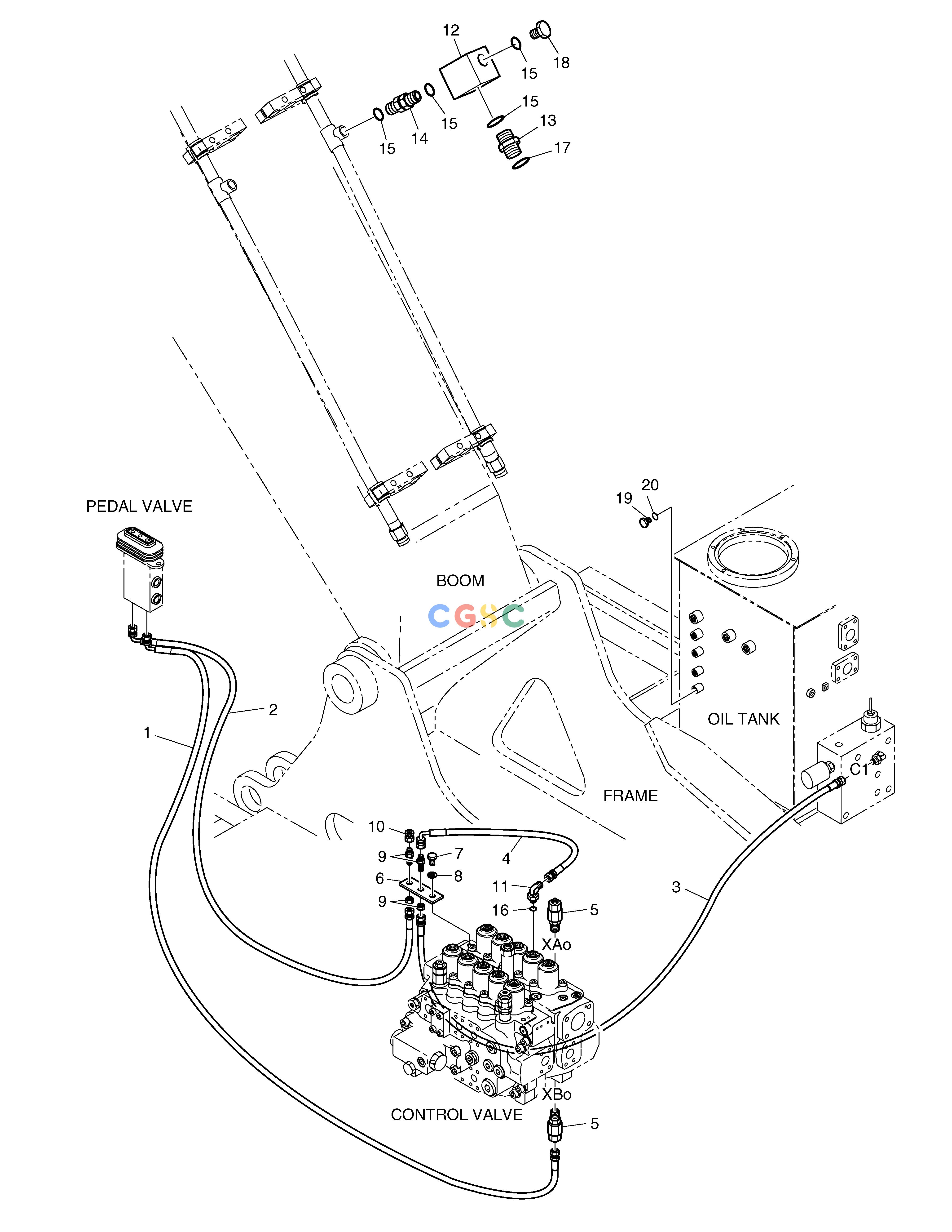

400-00795
|
[-] |
P3C PILOT PIPING
|
|
| 1. |
2184-1046D187
|
[1] |
HOSE PF1/4-2600L
|
|
| 10. |
2181-2820D1
|
[1] |
PLUG
|
|
| 11. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 12. |
2420-9633A
|
[1] |
VALVE;SWITCH
|
|
| 13. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 14. |
2181-2818
|
[1] |
ADAPTER
|
|
| 15. |
S8000291
|
[4] |
O-RING
|
|
| 16. |
S8000141
|
[1] |
O-RING
|
|
| 17. |
S8030161
|
[1] |
O-RING
|
|
| 18. |
2181-1950D9
|
[1] |
PLUG
|
|
| 19. |
2181-1950D1
|
[1] |
PLUG
|
|
| 2. |
2184-1046D187
|
[1] |
HOSE PF1/4-2600L
|
|
| 20. |
S8000111
|
[1] |
O-RING
|
|
| 3. |
2184-1045D152
|
[1] |
HOSE PF1/4-2000L
|
|
| 4. |
2184-1046D115
|
[1] |
HOSE PF1/4-700L
|
|
| 5. |
420-00300
|
[2] |
VALVE;RELIEF ASSY
|
|
| 6. |
621-01807
|
[1] |
PLATE
|
|
| 7. |
S0514853
|
[1] |
BOLT
|
|
| 8. |
S5102703
|
[1] |
WASHER
|
|
| 9. |
181-00020
|
[2] |
ADAPTER
|
|
