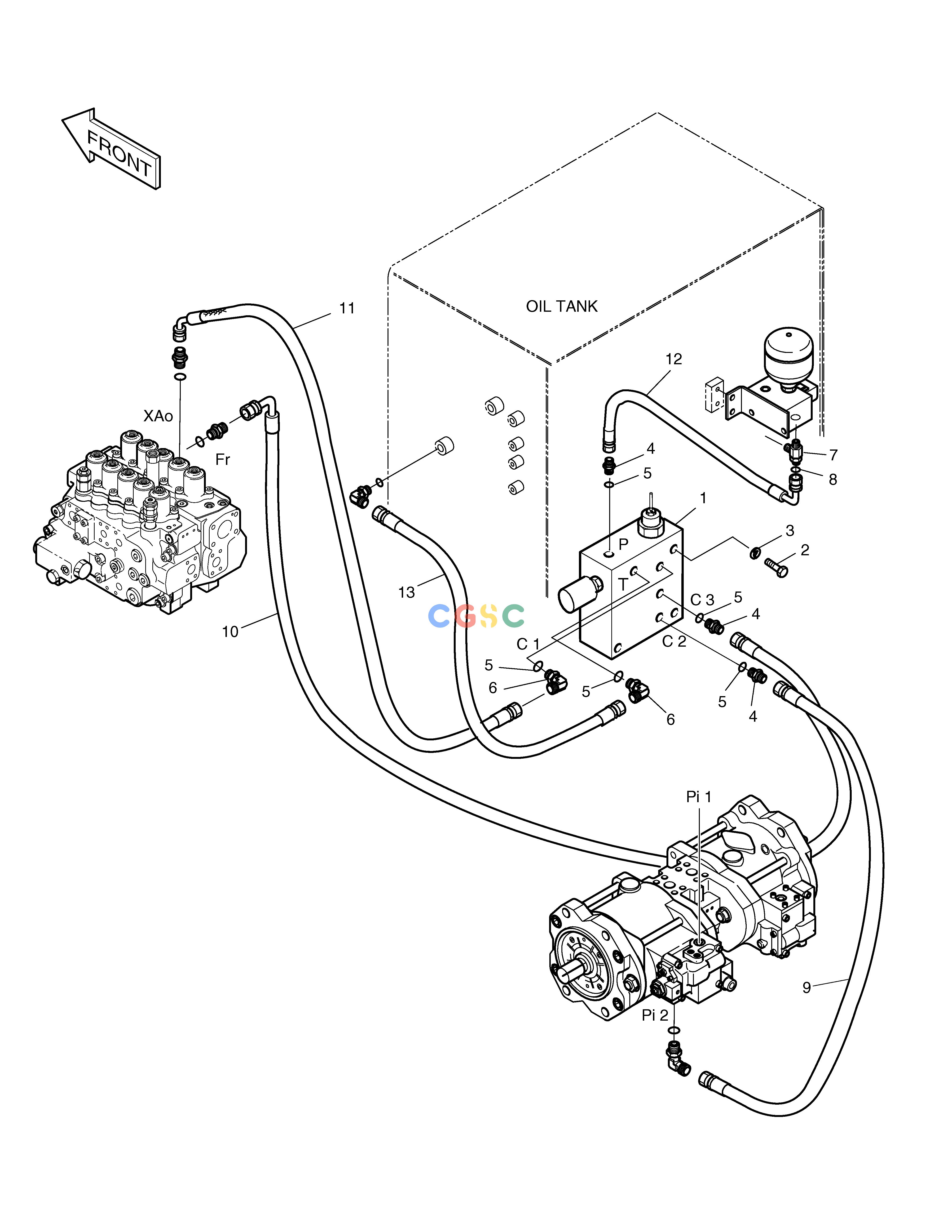

斗山零件查询PILOT PIPING-ONE WAY SOLAR 220LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
709 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2127
|
[-] |
PILOT PIPING-ONE WAY
|
|
| 1. |
2420-9227A
|
[1] |
VALVE;BREAKER
|
2420-9227C
|
| 1. |
2420-9227C
|
[1] |
VALVE;BREAKER
|
|
| 10. |
2184-1046D120
|
[1] |
HOSE PF1/4-1950L
|
|
| 11. |
2184-1046D143
|
[1] |
HOSE PF1/4-1150L
|
|
| 12. |
2184-1046D195
|
[1] |
HOSE PF1/4-510L
|
|
| 13. |
2184-1045D55
|
[1] |
HOSE PF1/4-990L
|
|
| 2. |
S0558953
|
[3] |
BOLT
|
|
| 3. |
S5102603
|
[3] |
. WASHER
|
|
| 4. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 5. |
S8000111
|
[5] |
O-RING
|
|
| 6. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 7. |
2181-2375D5
|
[1] |
TEE
|
|
| 8. |
S8000181
|
[1] |
O-RING
|
|
| 9. |
2184-1045D55
|
[1] |
HOSE PF1/4-990L
|
|
