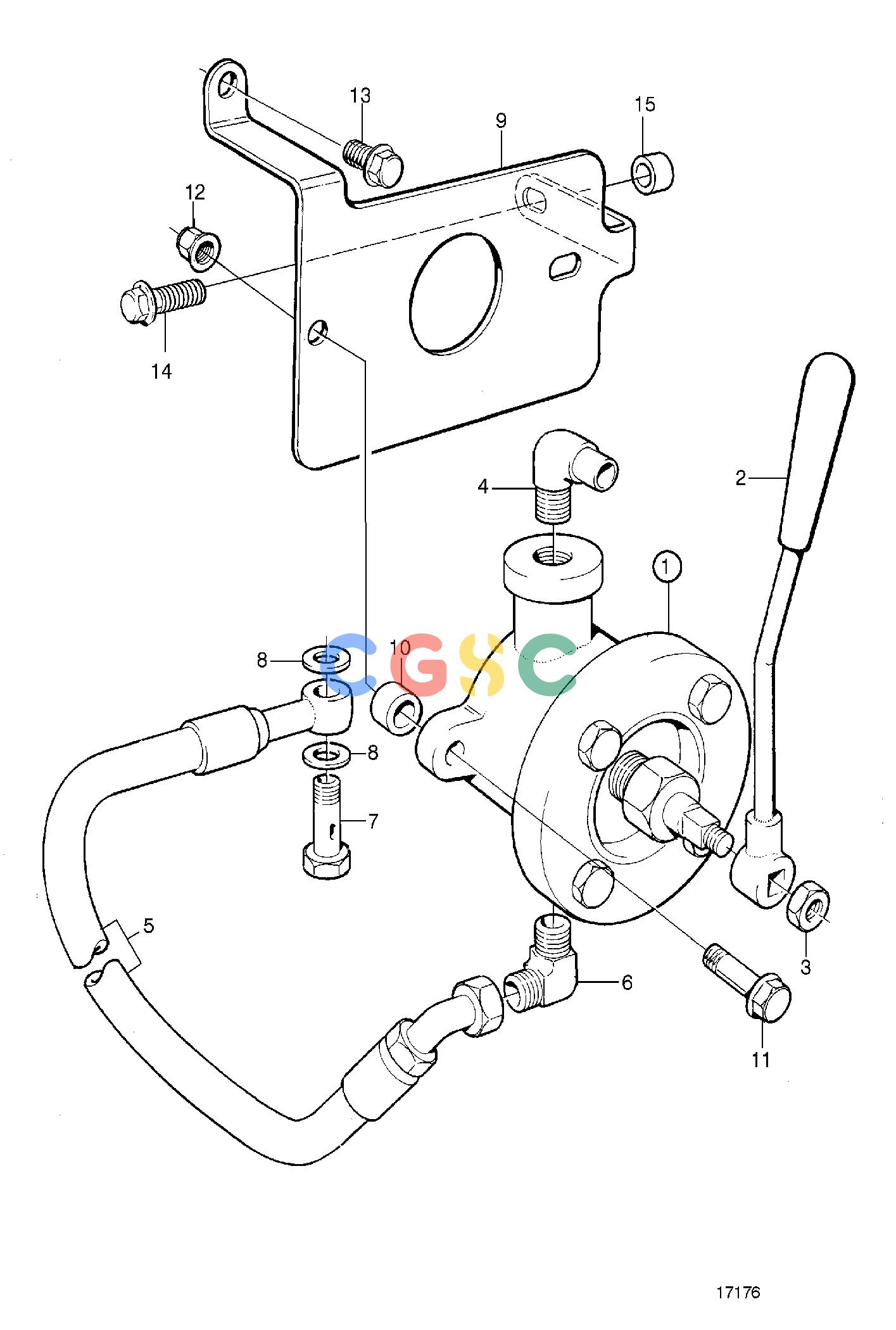

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ALubricating SystemOil Drain Pump and Installation Parts, Engine MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808946
|
[1] |
Oil bilge pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
942590
|
[1] |
Elbow nipple
|
|
| 5. |
866370
|
[1] |
Hose
|
Early type
|
| 5. |
3826227
|
[1] |
Oil hose
|
Late type
|
| 6. |
957111
|
[1] |
Elbow nipple
|
|
| 7. |
191929
|
[1] |
Hollow screw
|
Early type
|
| 7. |
966821
|
[1] |
Hollow screw
|
Late type
|
| 8. |
957185
|
[2] |
Gasket
|
Early type
|
| 8. |
18813
|
[2] |
Gasket
|
Late type
|
| 9. |
865958
|
[1] |
Bracket
|
|
| 10. |
1576517
|
[2] |
Spacer sleeve
|
|
| 11. |
965185
|
[2] |
Flange screw
|
M10x40mm
|
| 12. |
971095
|
[2] |
Flange nut
|
|
| 13. |
946471
|
[1] |
Flange screw
|
M10x16mm
|
| 14. |
946329
|
[1] |
Flange screw
|
|
| 15. |
820506
|
[1] |
Spacer sleeve
|
|
