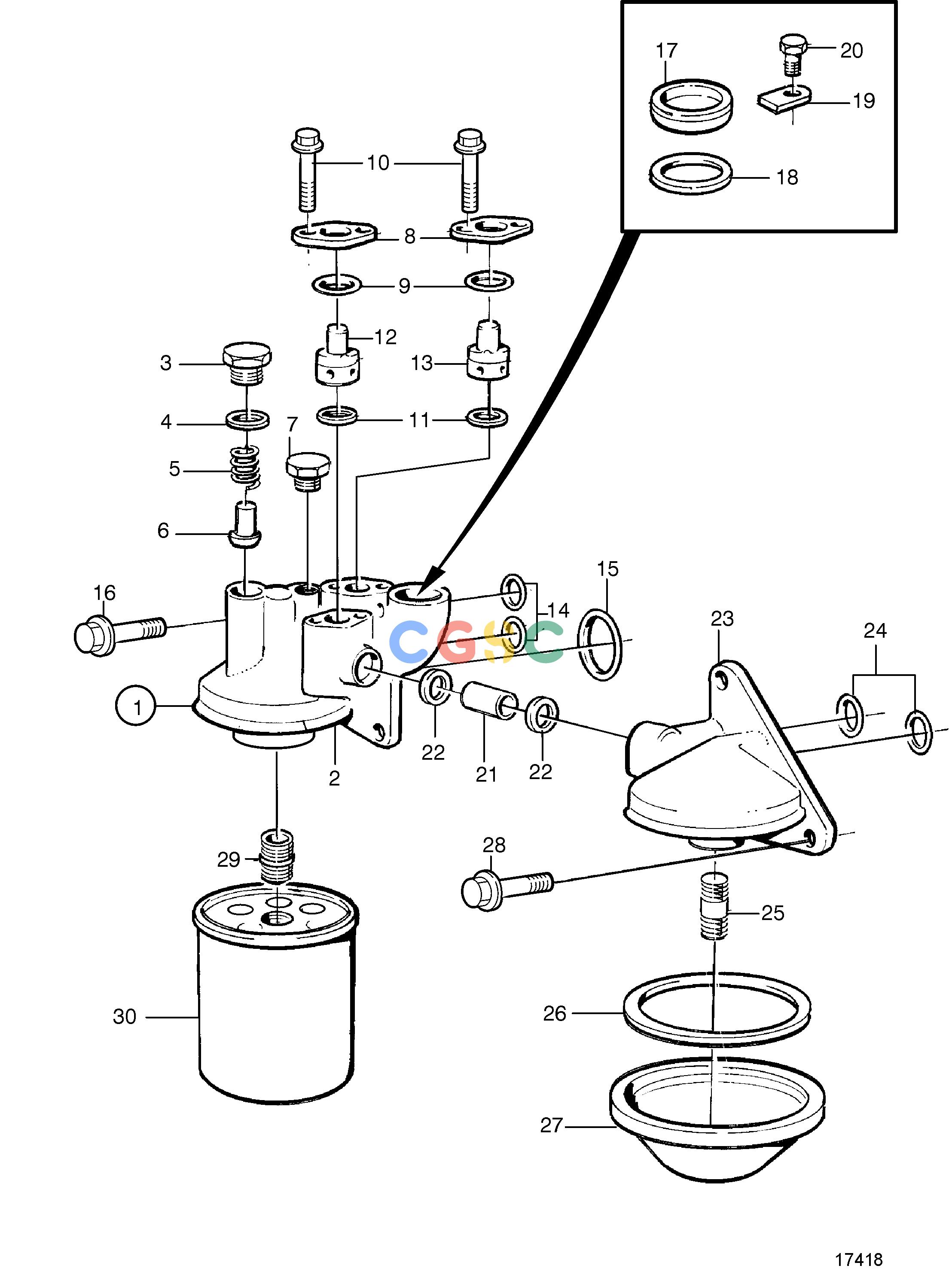

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ALubricating SystemOil Filter HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025,浏览:
614 次


| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864611
|
[1] |
Oil filter housing
|
|
| 2. |
|
|
|
|
| 3. |
471598
|
[1] |
Plug
|
|
| 4. |
947627
|
[1] |
Gasket
|
|
| 5. |
466653
|
[1] |
Compression spring
|
|
| 6. |
471085
|
[1] |
Valve cone
|
|
| 7. |
479979
|
[1] |
Plug
|
(191026)
|
| 8. |
471648
|
[2] |
Cover
|
|
| 9. |
949659
|
[2] |
O-ring
|
|
| 10. |
946544
|
[4] |
Flange screw
|
|
| 11. |
469846
|
[2] |
Sealing ring
|
|
| 12. |
471646
|
[1] |
Piston cooling valve
|
White
|
| 13. |
471707
|
[1] |
Reduction valve
|
Yellow
|
| 14. |
949656
|
[2] |
O-ring
|
|
| 15. |
949722
|
[1] |
O-ring
|
|
| 16. |
946329
|
[2] |
Flange screw
|
L=25mm
|
| 16. |
965222
|
[1] |
Flange screw
|
L=65mm
|
| 17. |
848319
|
[1] |
Plug
|
|
| 18. |
421629
|
[1] |
Rubber moulding
|
|
| 19. |
848318
|
[1] |
Anchorage
|
|
| 20. |
946440
|
[1] |
Flange screw
|
|
| 21. |
471602
|
[1] |
Oil feed pipe
|
|
| 22. |
471956
|
[2] |
Gasket
|
|
| 23. |
471601
|
[1] |
Oil filter housing
|
|
| 24. |
949656
|
[2] |
O-ring
|
|
| 25. |
469904
|
[1] |
Nipple
|
|
| 26. |
948981
|
[1] |
O-ring
|
|
| 27. |
848431
|
[1] |
Cover
|
|
| 28. |
946329
|
[3] |
Flange screw
|
(973083)
|
| 29. |
466623
|
[1] |
Nipple
|
|
| 30. |
422994
|
[1] |
Oil filter
|
Classified
|
