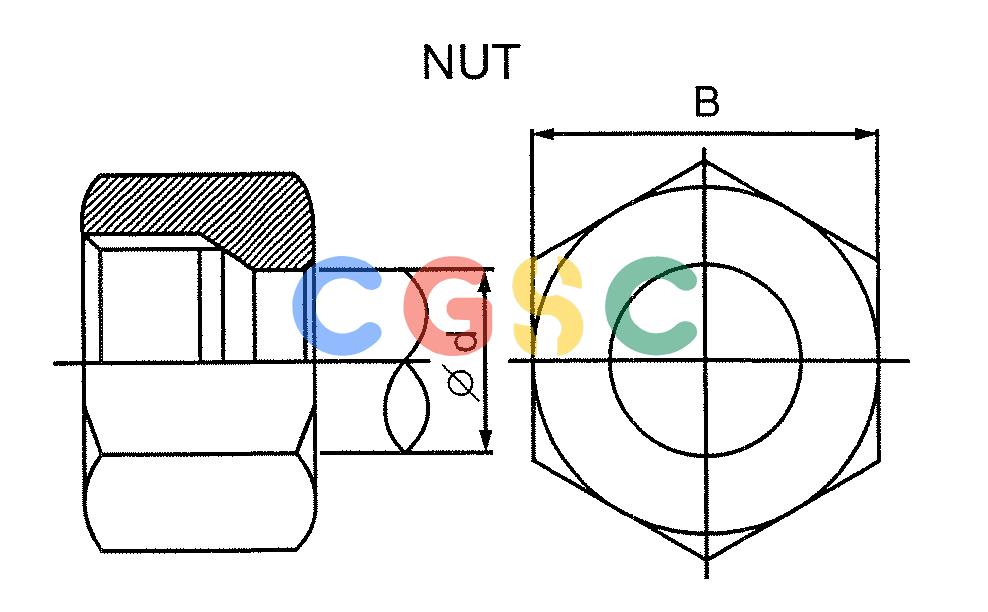

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (00-003) - NUT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ZA93N10000 | [19] | NUT | KOBNUT TYPE: AMC, NUT SIZE ød: 10 |
| . . | ZA93N15000 | [27] | TUBE NUT | KOBNUT TYPE: AMC, NUT SIZE ød: 15 |
| . . | ZA93N18000 | [32] | NUT | KOBTYPE: AMC, NUT SIZE ød: 18 |
| . . | ZA93N22000 | [36] | TUBE NUT | KOBTYPE: AMC, NUT SIZE ød: 22 |
| . . | ZA93N28000 | [41] | TUBE NUT | KOBTYPE: AMC, NUT SIZE ød: 28 |
| . . | ZA93N35000 | [55] | TUBE NUT | KOBTYPE: AMC, NUT SIZE ød: 35 |
| . . | ZF93N06000 | [14] | NUT | KOBNUT TYPE: IHARA, NUT SIZE ød: 6 |
| . . | ZF93N08000 | [17] | NUT | KOBNUT TYPE: IHARA, NUT SIZE ød: 8 |
| . . | ZF93N10000 | [19] | NUT | KOBTYPE: IHARA, NUT SIZE ød: 10 |
| . . | ZF93N12000 | [22] | NUT | KOBNUT TYPE: IHARA, NUT SIZE ød: 12 |
| . . | ZF93N15000 | [27] | NUT | KOBNUT TYPE: IHARA, NUT SIZE ød: 15 |
| . . | ZF93N18000 | [32] | NUT | KOBTYPE: IHARA, NUT SIZE ød: 18 |
| . . | ZF93N22000 | [36] | NUT | KOBTYPE: IHARA, NUT SIZE ød: 22 |
| . . | ZF93N28000 | [41] | TUBE NUT | KOBTYPE: IHARA, NUT SIZE ød: 28 Superseded by part number: ZA93N28000 |
| . . | ZF93N32000 | [50] | NUT | KOBNUT TYPE: IHARA, NUT SIZE ød: 32 |
| . . | ZF93N35000 | [55] | NUT | KOBTYPE: IHARA, NUT SIZE ød: 35 |
| . . | ZF93N38000 | [60] | NUT | KOBTYPE: IHARA, NUT SIZE ød: 38 |
