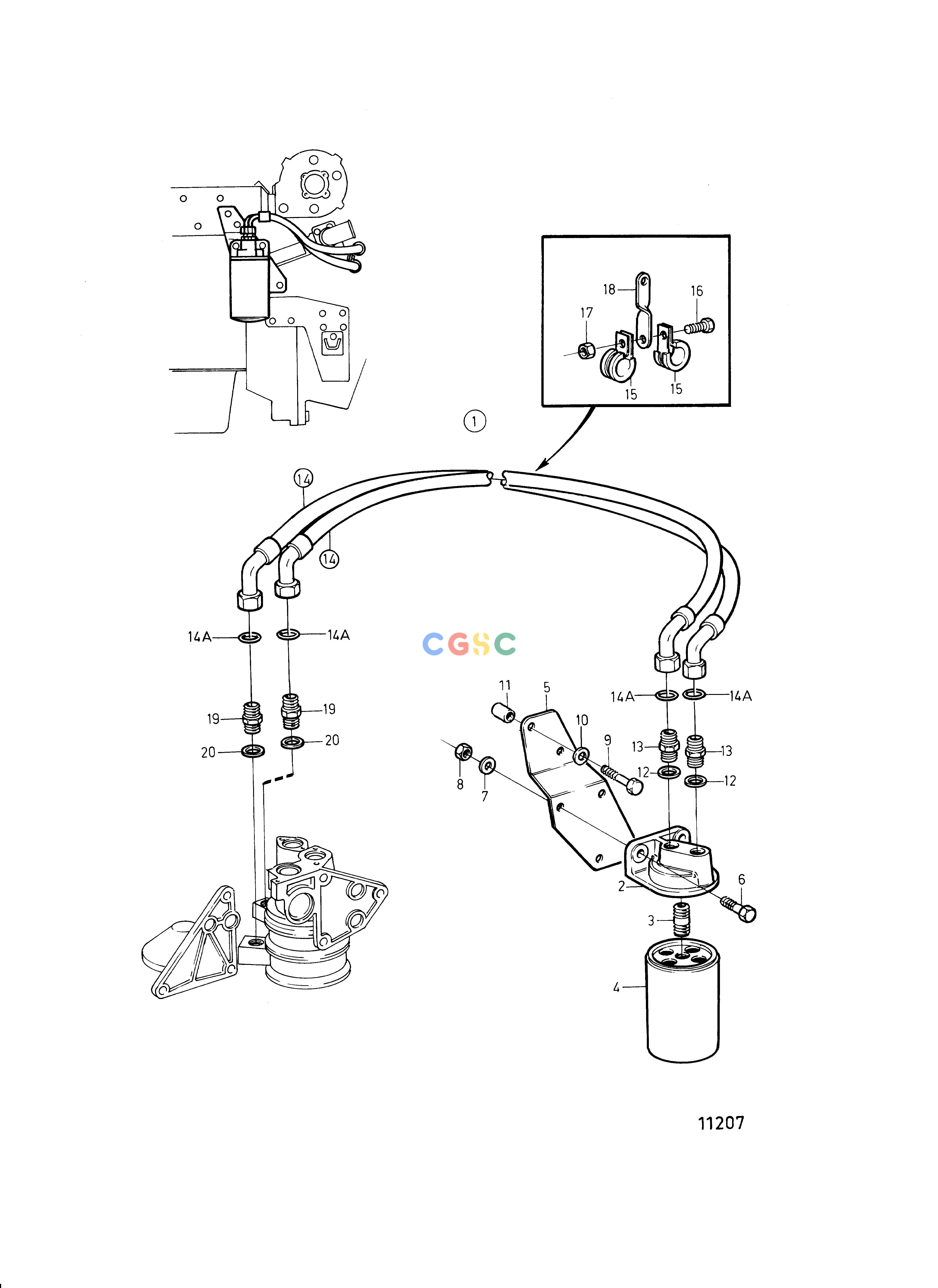

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ALubricating SystemOil Filter, Alternative LocationEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
848509
|
[1] |
Housing
|
|
| 3. |
466623
|
[1] |
Nipple
|
|
| 4. |
847741
|
[1] |
Oil filter
|
|
| 5. |
863246
|
[1] |
Bracket
|
|
| 6. |
970947
|
[2] |
Hexagon screw
|
|
| 7. |
976945
|
[2] |
Washer
|
(960148)
|
| 8. |
971071
|
[2] |
Hexagon nut
|
|
| 9. |
970964
|
[1] |
Hexagon screw
|
|
| 10. |
976945
|
[1] |
Washer
|
(960148)
|
| 11. |
843028
|
[1] |
Spacer sleeve
|
|
| 11. |
845884
|
[1] |
Spacer sleeve
|
|
| 12. |
948885
|
[2] |
Gasket
|
|
| 13. |
947554
|
[2] |
Nipple
|
M22x1,5
|
| 14. |
863613
|
[2] |
Oil hose
|
|
| 14A. |
4880663
|
[8] |
O-ring
|
|
| 15. |
952637
|
[8] |
Clamp
|
|
| 16. |
946934
|
[4] |
Flange screw
|
|
| 17. |
945407
|
[4] |
Flange nut
|
|
| 18. |
354842
|
[4] |
Bracket
|
|
| 19. |
947554
|
[2] |
Nipple
|
M22x1,5
|
| 20. |
18677
|
[2] |
Gasket
|
|
