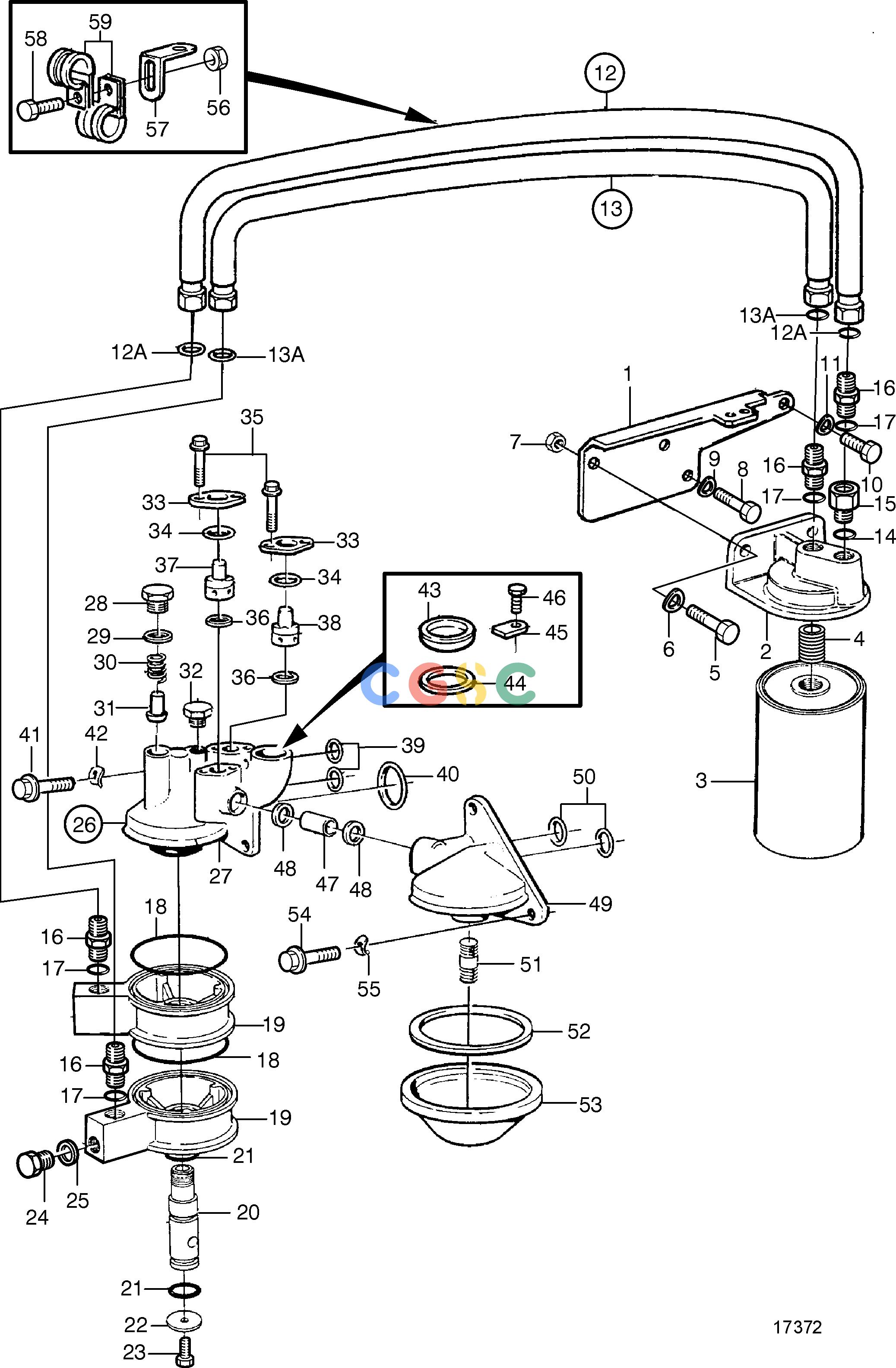

沃尔沃零件查询TAMD71B; TAMD73P-A; TAMD73WJ-ALubricating SystemOil Filter Housing and Oil FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825375
|
[1] |
Bracket
|
(848510)
|
| 2. |
848509
|
[1] |
Housing
|
|
| 3. |
847741
|
[1] |
Oil filter
|
|
| 4. |
466623
|
[1] |
Nipple
|
|
| 5. |
970947
|
[2] |
Hexagon screw
|
|
| 6. |
976945
|
[2] |
Washer
|
|
| 7. |
971071
|
[2] |
Hexagon nut
|
|
| 8. |
946440
|
[2] |
Flange screw
|
|
| 9. |
941907
|
[2] |
Spring washer
|
|
| 10. |
970944
|
[1] |
Hexagon screw
|
|
| 11. |
862692
|
[1] |
Washer
|
|
| 12. |
863341
|
[1] |
Lubricating oil hose
|
L=775mm
|
| 12A. |
4880663
|
[2] |
O-ring
|
|
| 13. |
863346
|
[1] |
Lubricating oil hose
|
L=680mm
|
| 13A. |
4880663
|
[2] |
O-ring
|
|
| 14. |
948885
|
[1] |
Gasket
|
|
| 15. |
863345
|
[1] |
Nipple
|
|
| 16. |
947554
|
[4] |
Nipple
|
|
| 17. |
948885
|
[4] |
Gasket
|
|
| 18. |
949647
|
[2] |
O-ring
|
|
| 19. |
848502
|
[2] |
Cap
|
|
| 20. |
848504
|
[1] |
Pipe
|
|
| 21. |
949658
|
[2] |
O-ring
|
|
| 22. |
862692
|
[1] |
Washer
|
|
| 23. |
970947
|
[1] |
Hexagon screw
|
L=20mm
|
| 24. |
960632
|
[2] |
Plug
|
|
| 25. |
948884
|
[2] |
Gasket
|
|
| 26. |
864611
|
[1] |
Oil filter housing
|
|
| 27. |
|
|
|
|
| 28. |
471598
|
[1] |
Plug
|
|
| 29. |
947627
|
[1] |
Gasket
|
|
| 30. |
466653
|
[1] |
Compression spring
|
|
| 31. |
471085
|
[1] |
Valve cone
|
|
| 32. |
479979
|
[1] |
Plug
|
|
| 33. |
471648
|
[2] |
Cover
|
|
| 34. |
949659
|
[2] |
O-ring
|
|
| 35. |
946544
|
[4] |
Flange screw
|
|
| 36. |
469846
|
[2] |
Sealing ring
|
|
| 37. |
471646
|
[1] |
Piston cooling valve
|
White
|
| 38. |
471707
|
[1] |
Reduction valve
|
Yellow
|
| 39. |
949656
|
[2] |
O-ring
|
|
| 40. |
949722
|
[1] |
O-ring
|
|
| 41. |
946329
|
[2] |
Flange screw
|
L=25mm
|
| 41. |
965222
|
[1] |
Flange screw
|
L=65mm
|
| 42. |
941908
|
[3] |
Spring washer
|
|
| 43. |
848319
|
[1] |
Plug
|
|
| 44. |
421629
|
[1] |
Rubber moulding
|
|
| 45. |
848318
|
[1] |
Anchorage
|
|
| 46. |
946440
|
[1] |
Flange screw
|
|
| 47. |
471602
|
[1] |
Oil feed pipe
|
|
| 48. |
471956
|
[2] |
Gasket
|
|
| 49. |
471601
|
[1] |
Oil filter housing
|
|
| 50. |
949656
|
[2] |
O-ring
|
|
| 51. |
469904
|
[1] |
Nipple
|
|
| 52. |
948981
|
[1] |
O-ring
|
|
| 53. |
848431
|
[1] |
Cover
|
|
| 54. |
946329
|
[3] |
Flange screw
|
|
| 55. |
941908
|
[3] |
Spring washer
|
|
| 56. |
945407
|
[1] |
Flange nut
|
|
| 57. |
965552
|
[1] |
Bracket
|
|
| 58. |
947542
|
[1] |
Flange screw
|
|
| 59. |
952634
|
[1] |
Clamp
|
|
