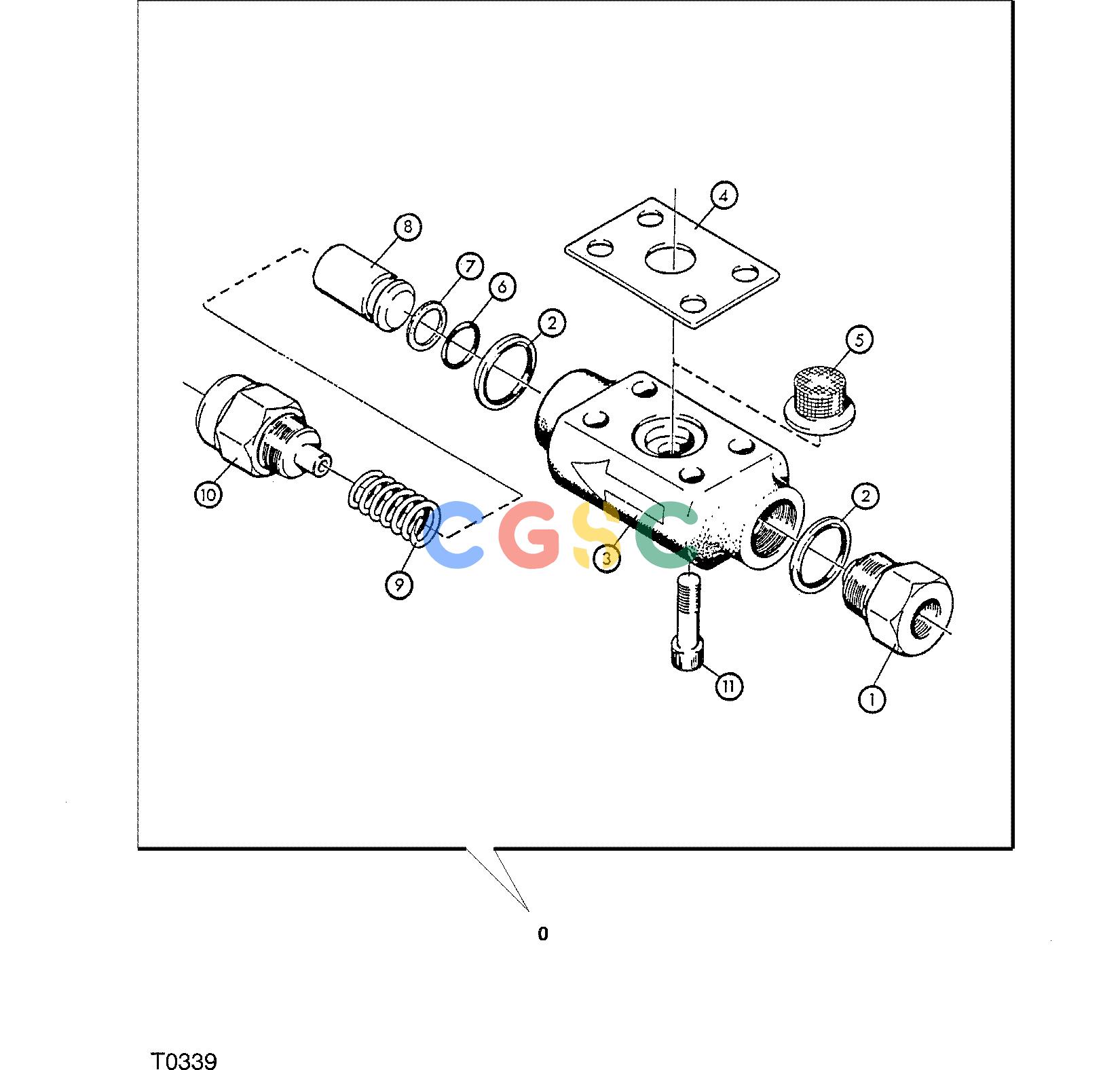

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 0. | F030032 | [1] | Pump | |
| F012865 | [1] | Seal Kit | ||
| 1. | F008352 | [1] | CONNECTION | |
| 2. | F005166 | [2] | SEAL RING | |
| 3. | F008353 | [1] | Housing | |
| 4. | F008354 | [1] | Seal | |
| 5. | F008355 | [1] | Strainer | |
| 6. | F010686 | [1] | O-Ring | |
| 7. | F010687 | [1] | SUPPORT RING | |
| 8. | F008356 | [1] | Piston | |
| 9. | F010688 | [1] | Spring | |
| 10. | F034836 | [1] | NIPPLE | |
| 11. | F010685 | [4] | Screw |
