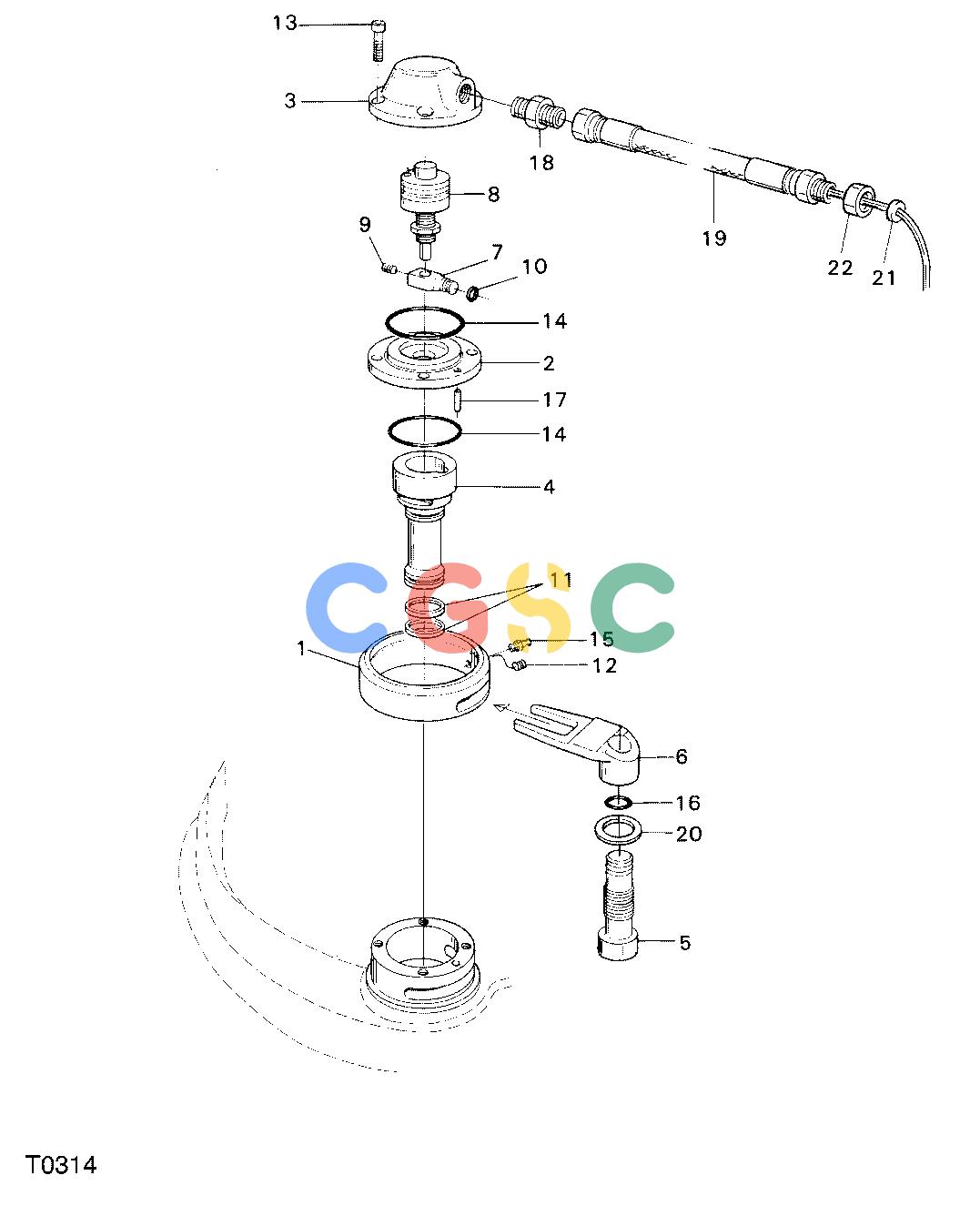

约翰迪尔零件查询746BST - ATTACHMENTS ANGLE INDICATOR 746B LOKOMATIC 90 ( O275 - ) 4536-014/10 [4536-014/10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
786 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F012645
|
[1] |
Ring
|
|
| 2. |
F021246
|
[1] |
Flange
|
|
| 3. |
F012647
|
[1] |
Cover
|
|
| 4. |
F012648
|
[1] |
Shaft
|
|
| 5. |
F017388
|
[1] |
Pin
|
|
| 6. |
F002915
|
[1] |
Fork
|
|
| 7. |
F012651
|
[1] |
CARRIER
|
|
| 8. |
F021413
|
[1] |
POTENTIOMETER - DAPT
|
|
| |
F021414
|
[1] |
POTENTIOMETER - LOKOMATIC
|
|
| 9. |
F002903
|
[1] |
Bolt
|
|
| 10. |
F002905
|
[1] |
O-Ring
|
|
| 11. |
F002907
|
[2] |
Guide
|
|
| 12. |
F013637
|
[1] |
Plug
|
|
| 13. |
F003412
|
[4] |
Bolt
|
|
| 14. |
F010741
|
[2] |
O-Ring
|
|
| 15. |
F005626
|
[1] |
GREASE FITTING
|
|
| 16. |
F004567
|
[1] |
O-Ring
|
|
| 17. |
F002904
|
[1] |
Pin
|
|
| 18. |
F005055
|
[1] |
CONNECTION
|
|
| 19. |
F028801
|
[1] |
HOSE-ASSY - 330MM LG. - TO S/N 317
|
|
| |
F046742
|
[1] |
HOSE-ASSY - FROM S/N 318
|
|
| 20. |
F003342
|
[1] |
Washer
|
|
| 21. |
F028802
|
[1] |
CONDUIT ENTRY
|
|
| 22. |
F022415
|
[1] |
COUPLING NUT
|
|
