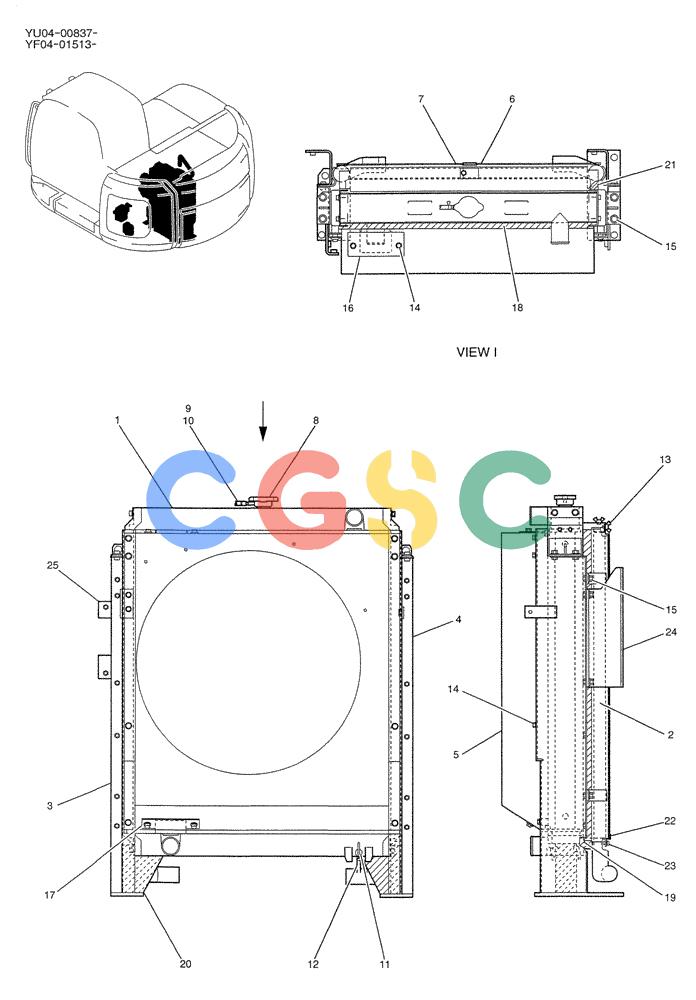

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-006) - RADIATOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
667 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN05P00035S001 | [1] | RADIATOR | KOBASSY |
| 6. | YN05P00029S007 | [1] | GUARD | KOB |
| 7. | YN05P00029S008 | [1] | GUARD | KOB |
| 8. | YN05P00010S006 | [1] | RADIATOR CAP | KOBRadiator Press Superseded by part number: YN05P00088S032 |
| 9. | 2452U416S4 | [1] | HOSE | KOB |
| 10. | 2452U267S8 | [2] | CLIP | KOB |
| 11. | YN05P00010S007 | [1] | COCK, DRAIN | KOB |
| 12. | YN05P00029S013 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: |
| 13. | 2452U202S5 | [2] | BOLT | KOBWING |
| 15. | 2452U400S4 | [12] | BOLT | KOBASSY Superseded by part number: ZM22C10025 |
| 16. | YN05P00029S017 | [1] | PLATE | |
| 17. | YN05P00029S018 | [1] | PLATE | |
| 22. | YN05P00029S023 | [1] | PLATE | KOB |
| 23. | YN05P00007S016 | [2] | BOLT | KOBASSY |
