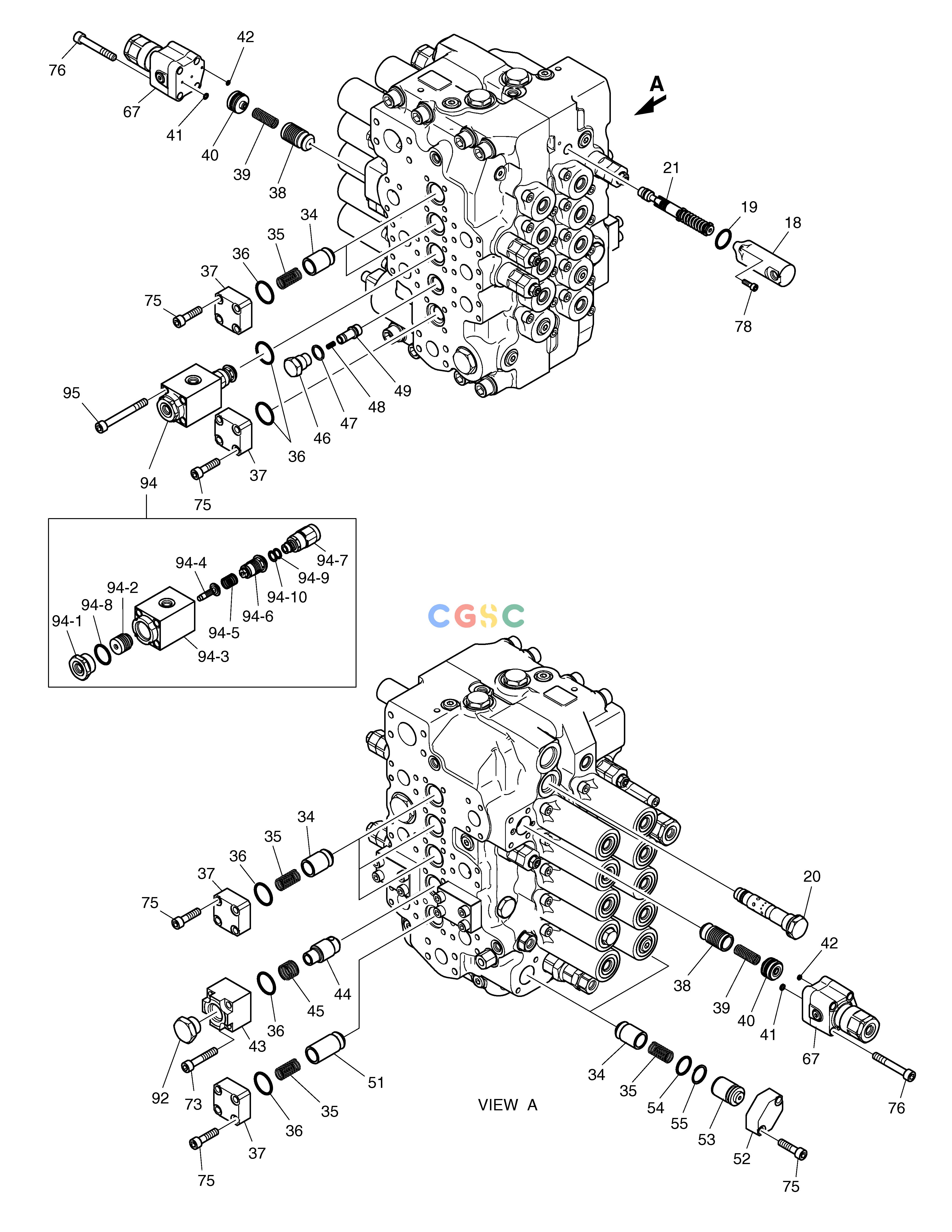

斗山零件查询CONTROL VALVE(3) - KVMG270 SOLAR 225LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
410105-00054
|
[1] |
|
|
| -. |
426-00231
|
[1] |
VALVE;CONTROL
|
410105-00054
|
| 18. |
430-00038
|
[1] |
CAP
|
|
| 19. |
S8000261
|
[1] |
O-RING
|
|
| 20. |
420-00314
|
[1] |
ARM REGEN ASS'Y
|
|
| 21. |
420-00393
|
[1] |
SP SPOOL ASS'Y
|
|
| 34. |
426-00169
|
[7] |
POPET
|
|
| 35. |
129-00127
|
[8] |
SPRING
|
|
| 36. |
S8000321
|
[9] |
O-RING
|
|
| 37. |
181-00628
|
[7] |
FLANGE
|
|
| 38. |
426-00170
|
[2] |
POPET
|
|
| 39. |
129-00128
|
[2] |
SPRING
|
|
| 40. |
114-00411
|
[2] |
SPACER ASS'Y
|
|
| 41. |
S8000061
|
[2] |
O-RING
|
|
| 42. |
S8000041
|
[2] |
.. O-RING
|
|
| 43. |
181-00630
|
[1] |
FLANGE
|
|
| 44. |
426-00171
|
[1] |
POPET
|
|
| 45. |
129-00130
|
[1] |
SPRING
|
|
| 46. |
430-00042
|
[1] |
PLUG
|
|
| 47. |
180-00398
|
[1] |
O-RING
|
|
| 48. |
129-00129
|
[1] |
SPRING
|
|
| 49. |
426-00172
|
[1] |
POPET
|
|
| 51. |
426-00173
|
[1] |
POPET
|
|
| 52. |
181-00631
|
[2] |
FLANGE
|
|
| 53. |
114-00413
|
[2] |
SPACER
|
|
| 54. |
S8010250
|
[2] |
O-RING
|
|
| 55. |
180-00445
|
[2] |
RING;BACK-UP
|
|
| 67. |
420-00246
|
[2] |
ANTI-DRIFT VALVE ASS'Y
|
|
| 73. |
S2212766
|
[4] |
BOLT;SOCKET M10X1.5X55
|
|
| 75. |
S2212466
|
[32] |
BOLT
|
|
| 76. |
S2213066
|
[8] |
BOLT;SOCKET M10X1.5X70
|
|
| 78. |
S2204866
|
[2] |
BOLT
|
|
| 92. |
181-00647
|
[1] |
PLUG ASSY
|
|
| 94. |
420-00309
|
[1] |
BOOM PRIORITY VALVE
|
|
| 94-1. |
430-00045
|
[1] |
PLUG
|
|
| 94-10. |
S8000121
|
[1] |
O-RING
|
|
| 94-2. |
409-00049
|
[1] |
PISTON
|
|
| 94-3. |
423-00107
|
[1] |
BODY
|
|
| 94-4. |
409-00050
|
[1] |
PISTON
|
|
| 94-5. |
129-00139
|
[1] |
SPRING
|
|
| 94-6. |
425-00015
|
[1] |
SLEEVE
|
|
| 94-7. |
426-00182
|
[1] |
POPET ASS'Y
|
|
| 94-8. |
180-00400
|
[1] |
O-RING
|
|
| 94-9. |
S8060121
|
[1] |
RING;BACK UP
|
|
| 95. |
S2213466
|
[4] |
SOCKET-HEAD BOLT
|
|
